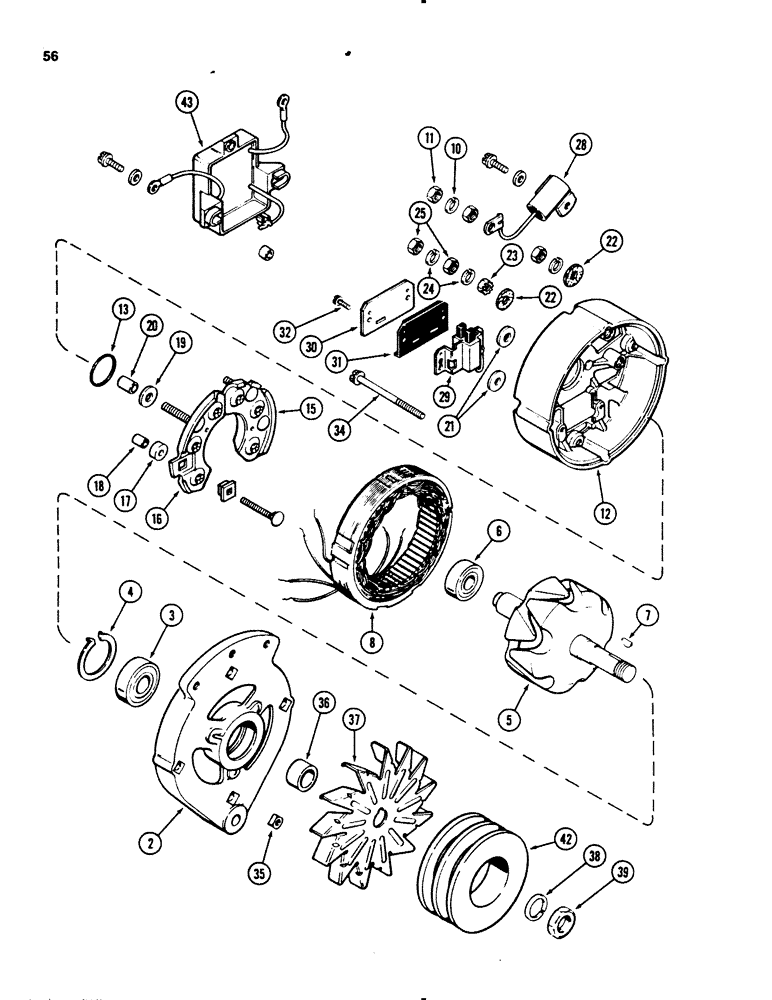

Запчасти Case 455B (056) - ALTERNATOR (06) - ELECTRICAL SYSTEMS

R45238

ALTERNATOR ASSEMBLY - (JI Case Installed) (Order 1-A47614 alternator, 1-A41057 pulley and 1-A44772 voltage regulator)

1шт.

A47614

ALTERNATOR

ASSEMBLY - (Used for service only) (Without pulley and voltage regulator), Includes:Ref. #s 2 - 39

1шт.

2

A47605

HOUSING

- front

1шт.

3

A65781

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - 11/16 x 1-9/16 x 1/2" (17 x 40 x 12 mm)

1шт.

4

A43394

RETAINER

- front bearing

1шт.

5

A47604

ROTOR

ASSEMBLY

1шт.

6

A44427

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - rear, 3/8 x 1-3/16 x 3/8" (10 x 30 x 10 mm)

1шт.

7

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Pulley #5, 1/8" x 5/8", HT

1шт.

8

A47603

STATOR

ASSEMBLY

1шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

12

A44765

HOUSING - rear

1шт.

13

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

RETAINER - rear bearing (o-ring) 1-1/8 x 1-3/8 x 1/8 inch (29 x 35 x 3 mm)

1шт.

15

A47607

DIODE

ASSEMBLY - positive

1шт.

16

A47600

DIODE ASSEMBLY - negative

1шт.

17

A47608

SLEEVE

- insulation, No. 10

1шт.

18

A43395

RUBBER INSULATOR

SLEEVE - insulation, No. 10 x 19/32"

1шт.

19

A45254

SPACER

SLEEVE - insulation, 1/4"

1шт.

20

A44771

SLEEVE CYLINDER

SLEEVE - insulation, 1/4 x 1/2"

1шт.

21

A47613

WASHER

INSULATOR - (For 1/4" stud)

2шт.

22

A47612

WASHER

INSULATOR - (For No. 10 stud)

3шт.

23

A47609

NUT

- No. 10 with washer

1шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

25

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

3шт.

28

A47273

CAPACITOR

ASSEMBLY

1шт.

29

A43401

BRUSH ASSY.

HOLDER ASSEMBLY - brush (with brushes)

1шт.

30

A43399

COVER

- brush holder

1шт.

31

A44769

GUARD

SHIELD - dust, brush holder

1шт.

32

187-480

SCREW,Hex Hd, #8 x 1/2"

- brush holder, self tapping, No. 8 x 1/2 inch

2шт.

34

A44423

BOLT

- through, No. 10-32 x 2-7/8"

4шт.

35

NLS

NO LONGER SERVICED

- square, through bolt, No. 10

4шт.

36

A43405

SPACER

- fan and pulley

1шт.

37

A47602

FAN

- alternator ventilating

1шт.

38

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

39

A41035

NUT

- hex, 5/8-18"

1шт.

42

A41057

PULLEY

1шт.

A41057 Pulley is Double Grooved Pulley.

1шт.

A44678 Pulley is Single Groved Pulley and should be ordered for Single Groove Pulley used on 450B.

1шт.

43

A44772

REGULATOR

ASSEMBLY - voltage

1шт.

Screw Illustrated next to #43

1шт.

(1) 187-576 Screw (#10-24 x 3/8) Sltd,Hx, Tapping

1шт.

(2) 187-1090 Screw (#10-24 x 5/8) Sltd. Hx Tapping Brass.

1шт.
