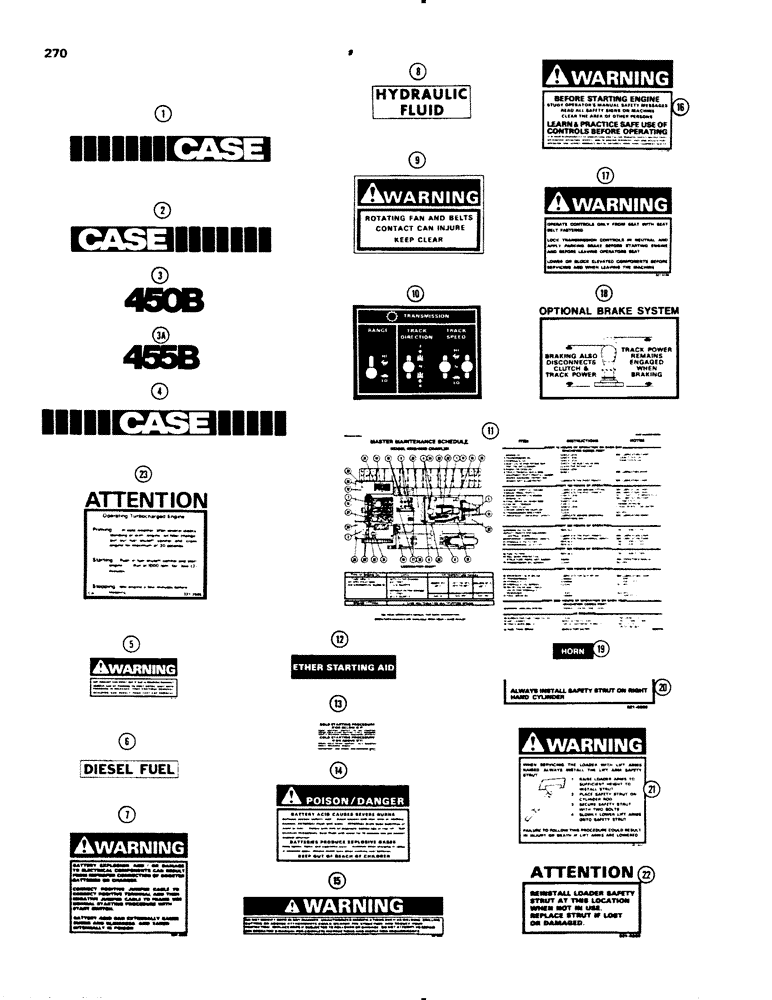

Запчасти Case 455B (270) - DECALS (05) - UPPERSTRUCTURE CHASSIS

R41275

DECAL

KIT - includes black decals, if used, also includes items in Fig. 272

1шт.

R49373

KIT

- includes brown decals, if used, also includes items on Fig. 272, Includes: Ref. #s1 - 23

1шт.

1

321-5304

DECAL

- Case, with treads to the left, black, if used

1шт.

1

R48484

DECAL

- Case, with treads to the left, brown, if used

1шт.

2

321-5303

DECAL

- Case, with treads to the right, black, if used

1шт.

2

R48483

DECAL

- Case, with treads to the right, brown, if used

1шт.

3

321-5279

DECAL

- 450B, black, if used

2шт.

3

R48481

DECAL

- 450B, brown, dozer and drawbar models, if used

2шт.

3a

R49244

DECAL

- 455B, brown, loader models, if used

2шт.

4

321-5302

DECAL

- Case, rear, used on models without backhoe, black if used

1шт.

For rear Case decal used on models with a backhoe, see Fig. 272.

1шт.

4

R48482

DECAL

- Case, rear, used on models without backhoe, brown, if used

1шт.

5

321-5734

DECAL

- Warning, hot coolant

1шт.

6

321-230

DECAL

- diesel fuel

1шт.

7

321-4190

DECAL

- Warning, battery explosion

1шт.

8

321-229

DECAL

- Hydraulic Fluid

1шт.

9

321-3596

DECAL

- Warning, Rotating Fan and Belts

2шт.

10

321-4654

DECAL

- Transmission, Range, Track Direction, Track Speed

1шт.

11

321-4688

DECAL

- Master Maintenance Schedule, dozer and drawbar models, not shown

1шт.

11

R49794

DECAL

- Master Maintenance Schedule, loader models

1шт.

12

321-2435

DECAL

- Ether Starting Aid, if used, may be part of instrument panel decal, see Ref. # 12, Fig. 272

1шт.

13

321-2946

DECAL

- Ether Starting Aid instructions, if used, may be part of instrument panel decal, see Ref. #12, figure 272

1шт.

14

321-2996

DECAL

- Poison/Danger, Battery Acid Causes Severe Burns

1шт.

15

321-4192

DECAL

- Warning, ROPS modification

1шт.

16

321-3705

DECAL

- Warning, Before Starting Engine

1шт.

17

321-4188

DECAL

- Warning, operate controls from seat

1шт.

18

321-2114

DECAL

- Optional Brake System

1шт.

19

321-3294

DECAL

- horn, if used, may be part of instrument panel decal, see Ref. #12, Fig. 272

1шт.

20

321-4606

DECAL

- Always Install Safety Strut on Right-Hand Cylinder

2шт.

21

321-4227

DECAL

- Warning, When Servicing the Loader With Lift Arms Raised

2шт.

22

321-4289

DECAL

- Attention, Reinstall Loader Safety Strut

1шт.

23

321-2605

DECAL

- Attention, Operating Turbochargrd Engine

1шт.
