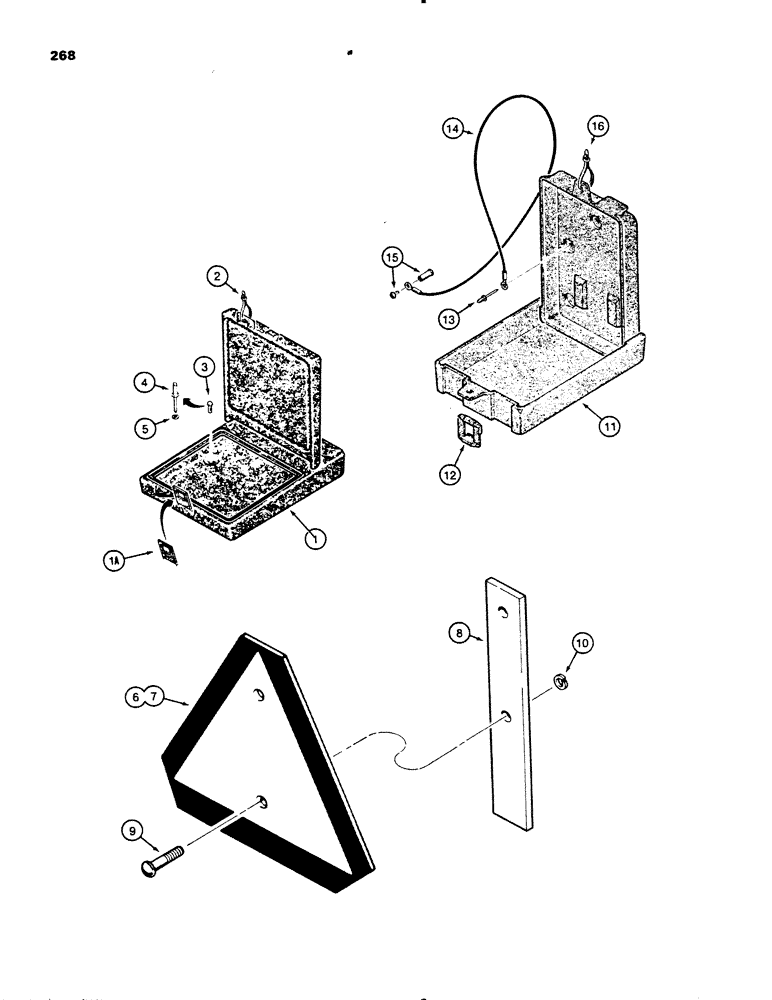

Запчасти Case 455B (268) - MANUAL BOX AND SLOW MOVING VEHICLE EMBLEM (05) - UPPERSTRUCTURE CHASSIS

1

R38893

CASE

MANUAL BOX - operators, if used, Includes: Ref. #1A

1шт.

1a

N7120

LATCH

- operators manual box

1шт.

2

R40745

STRAP

TIE STRAP - manual box

1шт.

3

151-522

RIVET,Pop, 3/16" x .575"

- no longer used, service with R42871 rivet

3шт.

4

R42871

POP RIVET - 3/16", plated, used with R38893 manual box only

3шт.

5

195-511

WASHER,#10

- flat, 3/16", plated

3шт.

A59450

WARNING SIGN

EMBLEM - slow moving vehicle, Includes: Ref. #6 & 7

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - emblem

1шт.

7

321-4311

DECAL

- emblem

1шт.

8

R40999

BRACKET - mounting, emblem

1шт.

9

163-18

SCREW,Hex, #10 - 24 x 3/8"

- machine, No. 10 - 24 NC x 3/8"

2шт.

10

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

11

R46464

CASE

BOX - operators, manual, Includes: Ref. #12

1шт.

12

N7189

BEARING

LATCH - manual box

2шт.

13

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET - 3/16" diameter, used with R46464 manual box only

3шт.

14

R46465

CABLE,36mm L

CORD ASSEMBLY - manual retaining

1шт.

15

NSS

NOT SOLD SEPARAT

RETAINER - manual

1шт.

16

R40745

STRAP

TIE STRAP - manual box

1шт.
