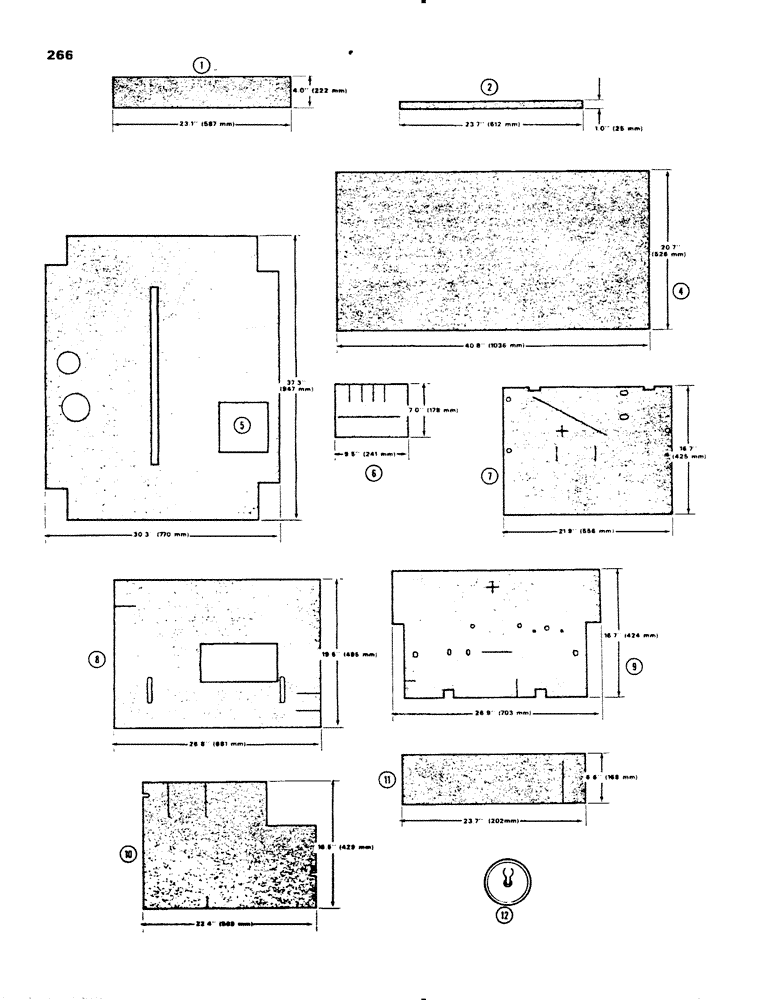

Запчасти Case 455B (266) - NOISE REDUCTION PADS (05) - UPPERSTRUCTURE CHASSIS

1

NSS

NOT SOLD SEPARAT

PAD - shroud, lower

1шт.

PAD - bulk roll, 54" ( 1371mm) x 72" (1829mm) x a" (25.4mm), used to make all pads listed.

1шт.

2

NSS

NOT SOLD SEPARAT

PAD - shroud, upper

1шт.

PAD - bulk roll, 54" ( 1371mm) x 72" (1829mm) x a" (25.4mm), used to make all pads listed.

1шт.

4

NSS

NOT SOLD SEPARAT

PAD - ROPS canopy, roof, front

1шт.

PAD - bulk roll, 54" ( 1371mm) x 72" (1829mm) x a" (25.4mm), used to make all pads listed.

1шт.

5

NSS

NOT SOLD SEPARAT

PAD - hood

1шт.

PAD - bulk roll, 54" ( 1371mm) x 72" (1829mm) x a" (25.4mm), used to make all pads listed.

1шт.

6

NSS

NOT SOLD SEPARAT

PAD - hydraulic reservoir

1шт.

PAD - bulk roll, 54" ( 1371mm) x 72" (1829mm) x a" (25.4mm), used to make all pads listed.

1шт.

7

NSS

NOT SOLD SEPARAT

PAD - cover, top, right hand side

1шт.

PAD - bulk roll, 54" ( 1371mm) x 72" (1829mm) x a" (25.4mm), used to make all pads listed.

1шт.

8

NSS

NOT SOLD SEPARAT

PAD - under seat, for plate, see Fig. 258

1шт.

PAD - bulk roll, 54" ( 1371mm) x 72" (1829mm) x a" (25.4mm), used to make all pads listed.

1шт.

9

NSS

NOT SOLD SEPARAT

PAD - heel plate, rear

1шт.

PAD - bulk roll, 54" ( 1371mm) x 72" (1829mm) x a" (25.4mm), used to make all pads listed.

1шт.

10

NSS

NOT SOLD SEPARAT

PAD - floor plate, front

1шт.

PAD - bulk roll, 54" ( 1371mm) x 72" (1829mm) x a" (25.4mm), used to make all pads listed.

1шт.

11

NSS

NOT SOLD SEPARAT

PAD - behind instrument panel, see Fig. 252 for plate

1шт.

PAD - bulk roll, 54" ( 1371mm) x 72" (1829mm) x a" (25.4mm), used to make all pads listed.

1шт.

12

R37160

RETAINER

- clip

12шт.

R30870

PAD

- bulk roll, 54" (1371 mm) x 72" (1829 mm) x 1" (25.4 mm), used to make all pads listed above

1шт.
