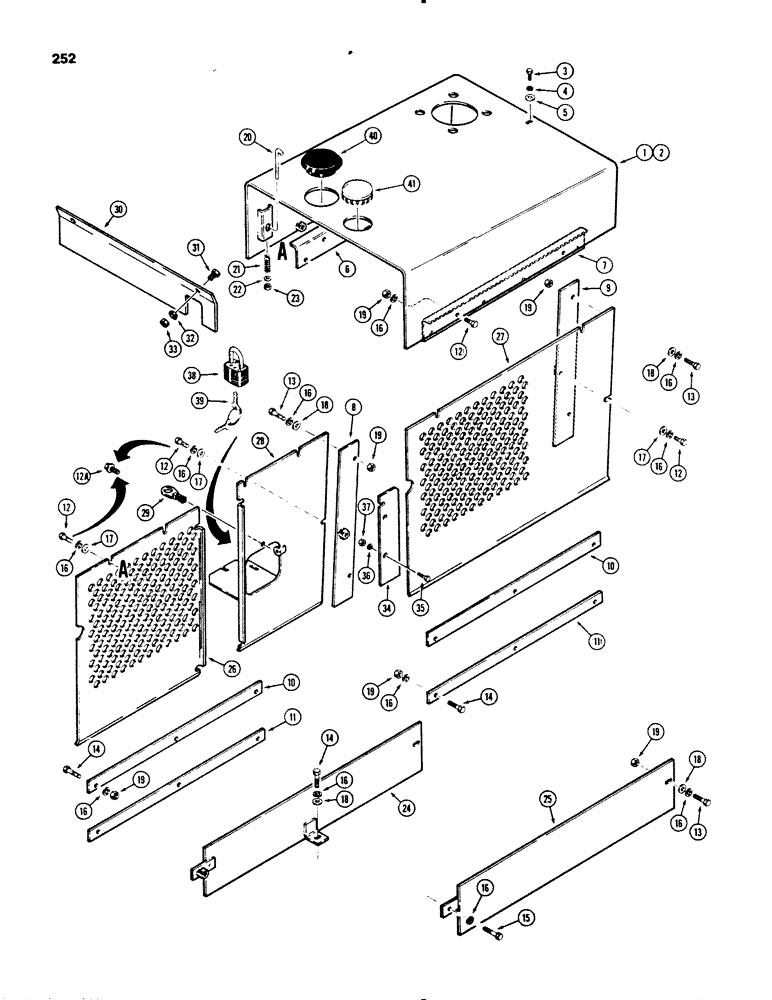

Запчасти Case 455B (252) - HOOD AND SIDE PANELS (05) - UPPERSTRUCTURE CHASSIS

1

R44494

HOOD - without noise pads, order R45067 hood

1шт.

2

R45067

HOOD

- with noise pads

1шт.

3

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

4

92-6

LOCK WASHER,3/8"

1шт.

5

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

6

R39910

ANGLE

BRACKET - left-hand, top

1шт.

7

R42387

ANGLE

BRACKET - right-hand, top

1шт.

8

R42389

SUPPORT

BRACKET - left-hand, front

1шт.

9

R42390

SUPPORT

BRACKET - right-hand, front

1шт.

10

R39908

BRACKET - lower

2шт.

11

R40430

BRACKET - lower

2шт.

12

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1", G5, Full Thd

10шт.

12a

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Does not use washers, if used Hex Flg, 1/2"-13 x 1", G8, Full Thd

8шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

15

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" -13 NC x 1-3/4"

2шт.

16

92-8

LOCK WASHER,1/2"

if used, not used with 121-428 bolts 1/2"

28шт.

17

R24718

WASHER

- hardened, if used, not used with 121-428 bolts

8шт.

18

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

19

25-108

NUT,1/2"-13, G5

- hex, 1/2" -13 NC

16шт.

20

D33958

BOLT

RETAINER - threaded, hood

16шт.

21

F60482

SPRING

- hood retainer

4шт.

22

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

23

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" -16 NC

4шт.

24

R40009

PANEL - lower, left-hand

1шт.

25

R40010

PANEL - lower, right-hand

1шт.

26

R43197

SHIELD

- left-hand, rear

1шт.

27

R43196

SHIELD

- right-hand

1шт.

28

R40442

SHIELD

- left-hand, front

1шт.

29

R42674

LOCKING DEVICE

LATCH - access door, side shield, left-hand

1шт.

30

R40750

LARGE PLATE

PLATE - noise reduction, behind instrument panel, see Fig. 266 for pad

1шт.

31

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex head, 1/2" -13 NC x 3/4"

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

25-108

NUT,1/2"-13, G5

- hex, 1/2" -13 NC

2шт.

34

R44481

PLATE

SUPPORT - dozer side shield

2шт.

35

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

36

92-8

LOCK WASHER,1/2"

4шт.

37

25-108

NUT,1/2"-13, G5

- hex, 1/2" -13 NC

4шт.

38

D93753

PADLOCK

- access door, engine oil dipstick, if used, Included: Ref. #39

1шт.

39

R29555

KEY

- for Master padlock only

2шт.

39

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

40

353-255

PLUG,3 1/2"

- button, 3-1/2" (89 mm) diameter, used on models without turbocharged engine

1шт.

41

205-72

HOLE PLUG BUTTON,3"

PLUG - button, (76 mm) diameter, used on models with turbocharged engine 3"

1шт.
