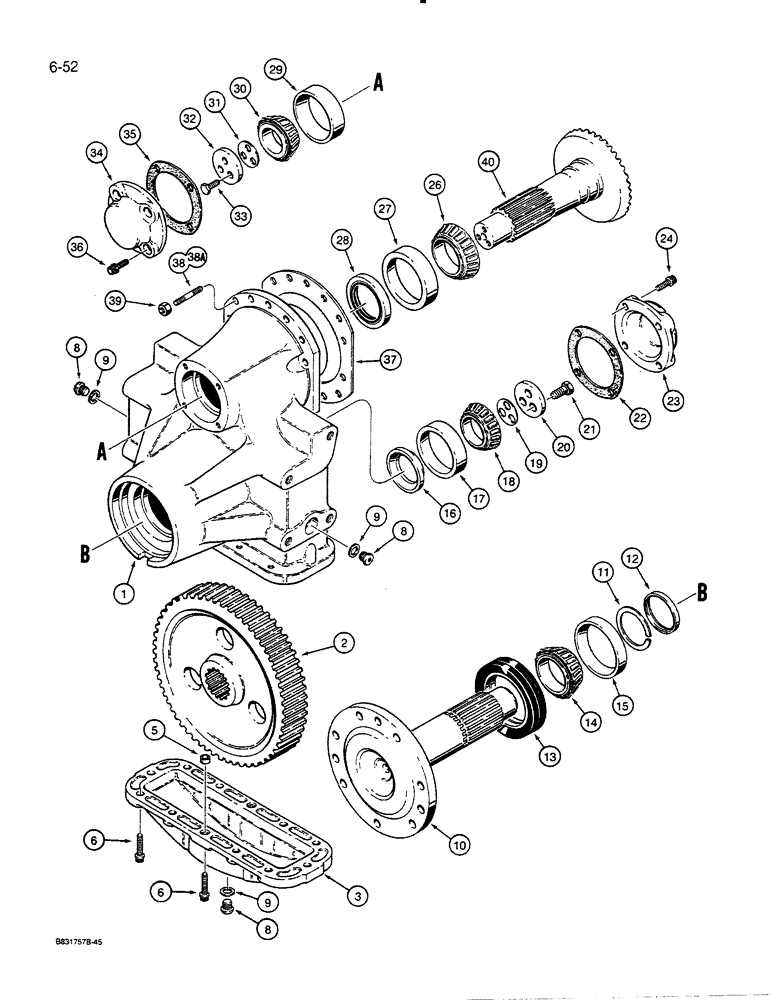

Запчасти Case 450C (6-52) - TRANSMISSION FINAL DRIVE, 64 INCH (1626 MM) GAUGE LGP DOZER MODELS ONLY (06) - POWER TRAIN

G104730

TRANSMISSION

FINAL DRIVE ASSEMBLY - 64" (1626 mm) gauge LGP dozer models only, Includes: Ref. 1 - 37

2шт.

1

G104731

HOUSING

- final drive assembly

1шт.

2

G101531

GEAR

- final drive

1шт.

3

A136860

COVER

- bottom, final drive gear

1шт.

4

B17428

LOCTITE

SEALANT - Gasket Eliminator, No. 504, 1-3/4 oz. (50 ml) tube, bottom gear cover to housing, not shown

1шт.

5

A50011

SLEEVE

- dowel, cover mounting, no longer used, not required

2шт.

6

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- Ferry head, 1/2" - 13 NC x 1-1/2", grade 8

12шт.

8

A50014

PLUG

- drain, housing

3шт.

9

G102141

SEALING WASHER

WASHER - copper, drain plug

3шт.

10

G106477

SHAFT

- final drive

1шт.

11

G104968

SNAP RING,#325, 3.070, Ext

RETAINING RING - final drive gear

1шт.

12

G107232

SPACER

- final drive gear

1шт.

13

G101798

SEAL

FACE SEAL - final drive shaft, outer

1шт.

14

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

TAPERED ROLLER BEARING - final drive shaft, outer

1шт.

15

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - tapered roller bearing, outer

1шт.

16

G100325

SPACER

- final drive shaft

1шт.

17

L35931

BEARING CUP

CUP - tapered roller baring, inner

1шт.

18

630203C91

TAPERED BEARING

TAPERED ROLLER BEARING - final drive shaft, inner

1шт.

19

R21741

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

19

R21742

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

19

R21743

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

20

G102107

PLATE

- bearing retaining

1шт.

21

28-920

BOLT,Hex, 9/16" - 18 x 1-1/4", Gr 8

use with Loctite 242 Hex, 9/16"-18 x 1 1/4", G8, Full Thd

3шт.

22

G101598

GASKET

- cover

1шт.

23

G105822

COVER ASSY

COVER - final drive shaft

1шт.

24

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT - Ferry head, 1/2" - 13 NC x 1"

4шт.

26

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

TAPEED ROLLER BEARING - input shaft, inner

1шт.

27

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - tapered roller bearing, inner

1шт.

28

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

OIL SEAL - final drive housing, input shaft

1шт.

29

895366C1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

30

895102C91

BEARING

TAPERED ROLLER BEARING - input shaft, outer

1шт.

31

G100328

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

31

G100329

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

31

G100330

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

32

G102108

PLATE

- bearing retaining

1шт.

33

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

Use with Loctite 242 Hex, 1/2"-13 x 1 1/4", G8, Full Thd

3шт.

34

G105822

COVER ASSY

COVER - input shaft

1шт.

35

G101598

GASKET

- cover

1шт.

36

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT - Ferry head, 1/2" - 13 NC x 1"

4шт.

37

A50199

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

37

A50198

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

38

G102017

STUD

- 1/2" - 13 NC x 3", if used

24шт.

38a

G100303

STUD

- 1/2" - 13 NC x 2-5/16", if used

24шт.

39

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

40

REF

INSTRUCTION

BEVEL GEAR - input shaft, matched set with pinion shaft, for part number see Fig. 6-46

1шт.
