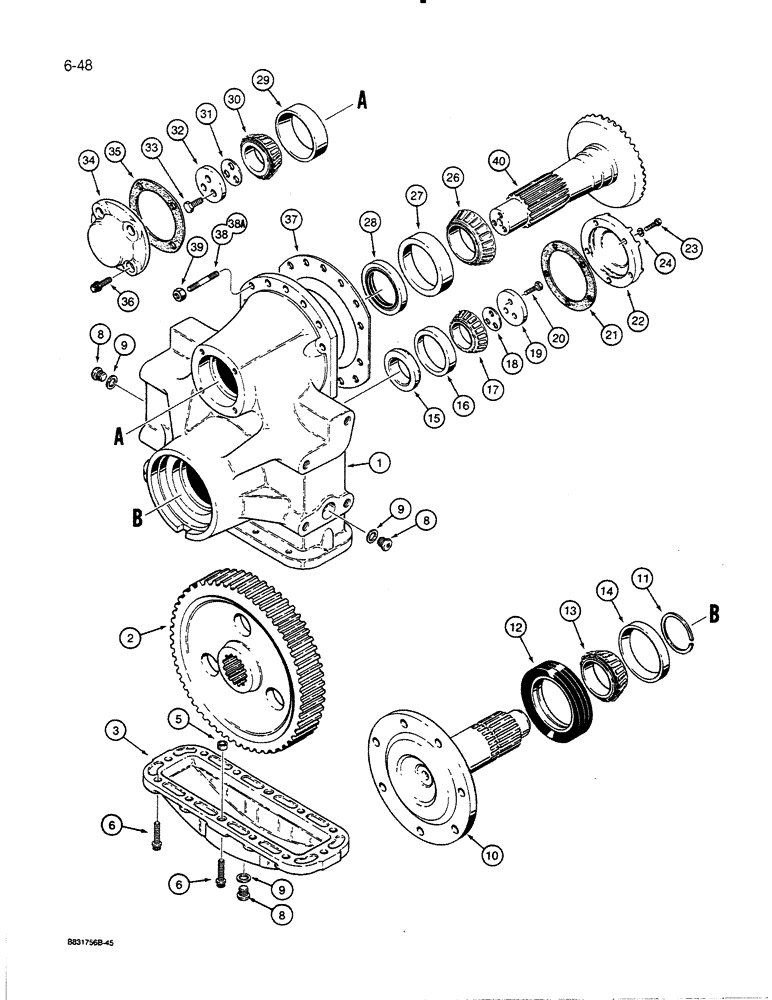

Запчасти Case 450C (6-48) - TRANSMISSION FINAL DRIVE, ALL MODELS EXCEPT 64 INCH (1626 MM) GAUGE LGP DOZER MODELS (06) - POWER TRAIN

G104180

DRIVE

FINAL DRIVE ASSEMBLY - all models except 64" (1626 mm) gauge LGP dozer models, Includes: Ref. 1 - 37

2шт.

1

G104181

HOUSING

- final drive assembly

1шт.

2

G101531

GEAR

- final drive

1шт.

3

A136860

COVER

- bottom, final drive gear

1шт.

4

B17428

LOCTITE

SEALANT - Gasket Eliminator, No. 504, 1-3/4 oz. (50 ml) tube, bottom gear cover to housing, not shown

1шт.

5

A50011

SLEEVE

- dowel, cover mounting, no longer used, not required

2шт.

6

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- Ferry head, 1/2" - 13 NC x 1-1/2", grade 8

12шт.

8

A50014

PLUG

- drain, housing

3шт.

9

G102141

SEALING WASHER

WASHER - copper, drain plug

3шт.

10

G105733

SHAFT

- final drive

1шт.

11

G104968

SNAP RING,#325, 3.070, Ext

RETAINING RING - final drive gear

1шт.

12

G101798

SEAL

FACE SEAL - final drive shaft, outer

1шт.

13

A50100

ROLLER BEARING,82.55mm ID x 25.4mm W

TAPERED ROLLER BEARING - final drive shaft, outer

1шт.

14

A27146

BEARING, CUP,125.41mm OD x 19.84mm W

CUP - tapered roller bearing, outer

1шт.

15

A50215

RING

SPACER - final drive shaft

1шт.

16

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP - tapered roller bearing, inner

1шт.

17

158238C1

ROLLER BEARING,57.47mm ID x 21.95mm W

TAPERED ROLLER BEARING - final drive shaft, inner

1шт.

18

R21741

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

18

R21742

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

18

R21743

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

19

G102108

PLATE

- bearing retaining

1шт.

20

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

Use with Loctite 242 Hex, 1/2"-13 x 1 1/4", G8, Full Thd

3шт.

21

A50139

GASKET

- cover

1шт.

22

A50140

COVER

- final drive shaft

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

26

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

TAPERED ROLLER BEARING - input shaft, inner

1шт.

27

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - tapered roller bearing, inner

1шт.

28

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

OIL SEAL - final drive housing, input shaft

1шт.

29

895366C1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

30

895102C91

BEARING

TAPERED ROLLER BEARING - input shaft, outer

1шт.

31

G100328

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

31

G100329

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

31

G100330

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

32

G102108

PLATE

- bearing retaining

1шт.

33

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

Use with Loctite 242 Hex, 1/2"-13 x 1 1/4", G8, Full Thd

3шт.

34

G105822

COVER ASSY

COVER - input shaft

1шт.

35

G101598

GASKET

- cover

1шт.

36

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT - Ferry head, 1/2" - 13 NC x 1"

4шт.

37

A50199

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

37

A50198

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

38

G102017

STUD

- 1/2" - 13 NC x 3", if used

24шт.

38a

G100303

STUD

- 1/2" - 13 NC x 2-5/16", if used

24шт.

39

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

40

REF

INSTRUCTION

BEVEL GEAR - input shaft, matched set with pinion shaft, for part number see Fig. 6-46

1шт.

REF: 40 BEVEL GEAR IS NOT INCLUDED IN THE G104180 FINAL DRIVE ASSY.

1шт.
