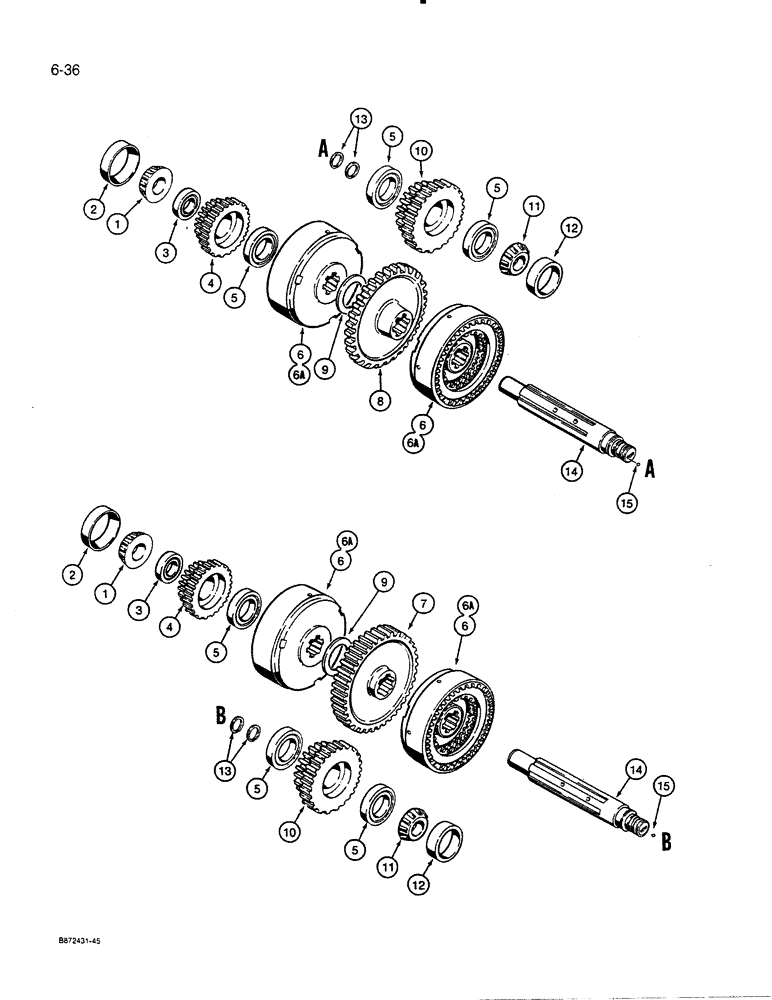

Запчасти Case 450C (6-36) - TRANSMISSION HIGH-LOW CLUTCHES AND SHAFTS (06) - POWER TRAIN

1

G100313

BEARING CONE,34.92mm ID x 20.64mm W

TAPERED ROLLER BEARING - clutch shaft, rear

2шт.

2

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - tapered roller bearing, rear

2шт.

3

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

BALL BEARING - low clutch gear, rear

2шт.

4

A50574

SHAFT

GEAR - low clutch, rear

2шт.

5

G10418

BEARING, BALL

BALL BEARING - high clutch gear and front of low clutch gear

6шт.

6

G102375

CLUTCH

ASSEMBLY - high and low, models with dry brakes and models with wet brakes through P.I.N. 3080911, parts list Fig. 6-38

4шт.

6a

G106702

CLUTCH ASSEMBLY

- high and low, models with wet brakes P.I.N. GBE 0001501 and after, parts list Fig. 6-40

4шт.

7

NLS

NO LONGER SERVICED

- reverse, right-hand, 1-1/2" (38 mm) wide teeth

1шт.

8

A50511

GEAR

- forward, left-hand, 11/16" (17 mm) wide teeth

1шт.

9

A50668

SHIM,.032" Thk

Forward and reverse gears .032" Thk

2шт.

10

G100314

GEAR

- high clutch, front

2шт.

11

ST2069

TAPERED BEARING,1.7715" ID x 3.3475" OD x 0.9515"

- clutch shaft, front

2шт.

12

G100312

BEARING, CUP,85mm OD x 19.05mm W

CUP - tapered roller bearing, front

2шт.

13

A50389

SEAL

- ring, shaft

4шт.

Part of Seal Kit, P/N G102662

1шт.

14

G100310

GEAR

SHAFT - high and low clutch, Includes: Ref. 15

2шт.

15

NSS

NOT SOLD SEPARAT

BALL - steel, 1/4" diameter, shaft seal

2шт.

G102662

SEAL

KIT - seal, Includes: Ref. 13, for complete kit see Fig. 6-66

1шт.
