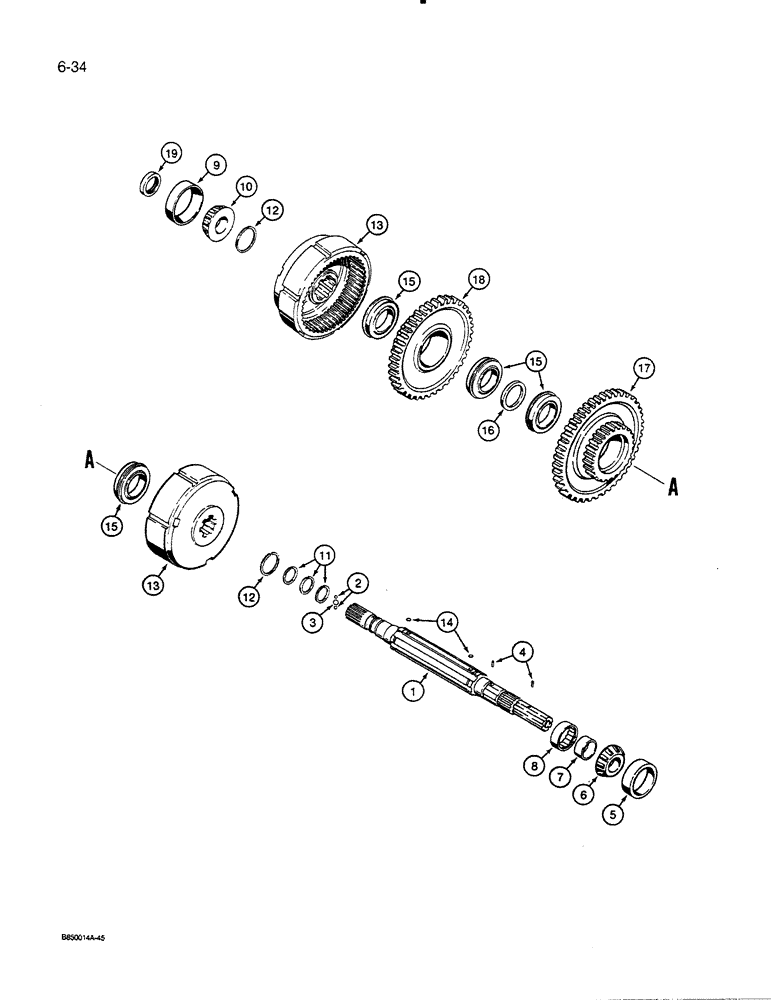

Запчасти Case 450C (6-34) - TRANS. MAIN SHAFT AND FORWARD-REVERSE CLUTCHES, MODELS WITH WET BRAKES, P.I.N. GBE 0001501 AND AFTER (06) - POWER TRAIN

1

G109370

SHAFT

- main, Includes: Ref. 2 and 3

1шт.

2

211-1308

BALL,1/4" Dia

- steel, meter, shaft seal 1/4" Dia

2шт.

3

211-1012

BALL,3/8" Dia

- steel, meter, shaft seal 3/8" Dia

1шт.

4

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, , Range gear 5/32" x 7/16", Slotted

2шт.

5

128242R1

BEARING CUP,76.225 mm OD x 23.863 mm

CUP - tapered roller bearing, front

1шт.

6

G106461

ROLLER BEARING,33.34mm ID x 28.78mm W

TAPERED ROLLER BEARING - main shaft, front

1шт.

7

G106696

BEARING,41.26mm ID x 50.77mm OD x 32mm W

RACE - inner, needle bearing

1шт.

8

G106695

BEARING,CON.ROD

NEEDLE BEARING - main shaft

1шт.

9

G109317

BEARING CUP

CUP - tapered roller bearing, rear

1шт.

10

G109318

CONE

TAPERED ROLLER BEARING - main shaft, rear

1шт.

11

A51841

RING

SEAL - ring, main shaft, rear

3шт.

12

A50046

RING

SNAP RING - clutch retaining

2шт.

13

G106701

CLUTCH ASSEMBLY

- forward and reverse, parts list Fig. 6-44

2шт.

14

G107169

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- clutch seal

4шт.

15

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

BALL BEARING - forward and reverse gears

4шт.

16

A50034

SPACER

- forward and reverse gears

1шт.

17

G106770

GEAR

- reverse

1шт.

18

G106771

GEAR

- forward

1шт.

19

A54107

OIL SEAL,38.1mm ID x 8mm Thk

OIL SEAL - main shaft, rear

1шт.
