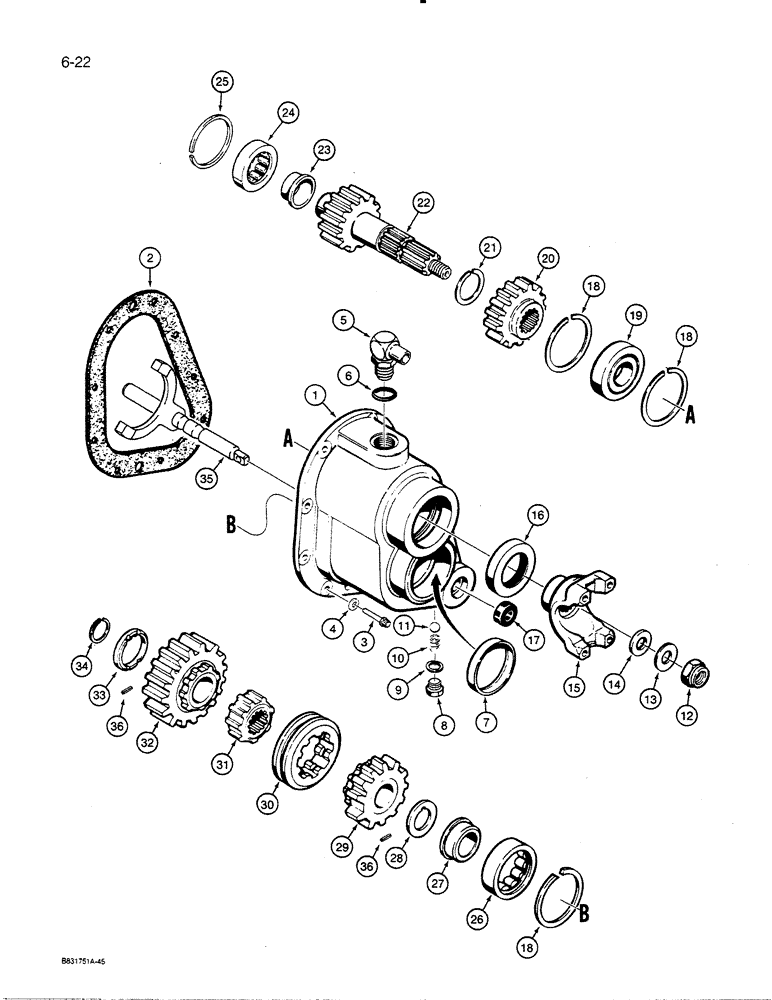

Запчасти Case 450C (6-22) - TRANSMISSION RANGE SHIFT, MODELS WITH DRY BRAKES, BEFORE DOZER TRACTOR P.I.N. 3077259 (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

HOUSING - range gear, see Fig. 6-10 for service

1шт.

2

A50269

GASKET

- range gear housing, use with Ref. 2A sealant

1шт.

Part of Seal Kit, P/N G102662

1шт.

2a

B17428

LOCTITE

SEALANT - Gasket Eliminator No. 504, 50 ml tube, range gear housing gasket to transmission housing, not shown

1шт.

3

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 1-1/4", grade 8

9шт.

4

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

9шт.

Part of Seal Kit, P/N G102662

1шт.

5

217-363

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 5/8" Hose x 1 1/16"-12 ORB Beaded, Adjustable

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

Part of Seal Kit, P/N G102662

1шт.

7

A50268

PLUG

- cup

1шт.

Part of Seal Kit, P/N G102662

1шт.

8

A50094

PLUG,Screw, 5/8" - 18 x 0.377"

- range selector detent

1шт.

9

A50093

SEALING WASHER

WASHER - special, detent plug

1шт.

Part of Seal Kit, P/N G102662

1шт.

10

A50092

SPRING

- detent

1шт.

11

211-214

BALL,1/2" Dia

- steel, meter 1/2" Dia

1шт.

12

131-91

LOCK NUT,3/4"-16, G8

NUT - hex, self-locking, 3/4" - 14 NF, plated

1шт.

13

32601

WASHER

- special, yoke retaining

1шт.

14

34395

SEALING WASHER

WASHER - yoke seal

1шт.

Part of Seal Kit, P/N G102662

1шт.

15

G106153

YOKE

- to drive shaft

1шт.

16

A50420

SEAL

- input shaft

1шт.

Part of Seal Kit, P/N G102662

1шт.

17

G105118

OIL SEAL

- selector shaft, double lip

1шт.

Part of Seal Kit, P/N G102662

1шт.

18

R13804

RING

SNAP RING - bearing

3шт.

19

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

- input shaft

1шт.

20

G100307

GEAR

DRIVE GEAR - input shaft, high range

1шт.

21

R15364

SNAP RING,#152, 1.527", Ext

- drive gear

1шт.

22

G106413

GEAR

INPUT SHAFT - 15 gear teeth, use with G100309 low range clutch gear only, Ref. 32, used on all loader and dozer models; used on some LGP dozer models

1шт.

22

A50365

SHAFT

INPUT SHAFT - 17 gear teeth, use with A50517 low range clutch gear only, Ref. 32, used on some LGP dozer models

1шт.

23

A50077

BEARING CONE,1.1811" ID x 0.748"

RACE - roller bearing, inner

1шт.

24

A50255

BEARING, ROLLER, CYL,2.8359" OD x 0.748"

ROLLER BEARING - input shaft

1шт.

25

A27417

RING

SNAP RING - roller bearing

1шт.

G102662

SEAL

KIT - seal, Includes: Ref. 2, 4, 6, 7, 9, 14, 16 and 17, for complete kit see Fig. 6-66

1шт.

26

A50258

ROLLER BEARING,3.1510" OD x 0.8268"

- main shaft, front

1шт.

27

A50332

BEARING CONE,1.25" ID x 0.8268"

RACE - roller bearing, inner

1шт.

28

A50333

WASHER

THRUST WASHER - drive gear, front

1шт.

29

G100308

GEAR

DRIVEN GEAR - high range clutch, on main shaft

1шт.

30

A51806

COLLAR

SLEEVE - sliding, range selector

1шт.

31

A50502

COLLAR

- sliding, sleeve to main shaft, range selector

1шт.

32

G100309

GEAR

DRIVEN GEAR - low range clutch, 28 teeth, use with G106413 input shaft only, Ref. 22, used on all loader and dozer models; used on some LGP dozer models

1шт.

32

A50517

GEAR

DRIVEN GEAR - low range clutch, 39 teeth, use with A50365 input shaft only, Ref. 22, used on some LGP dozer models

1шт.

33

A50071

WASHER

THRUST WASHER - driven gear, rear

1шт.

34

A26946

RING

SNAP RING - gear

1шт.

35

G107672

SHAFT

- range selector, with welded fork

1шт.

36

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, , Range gear 5/32" x 7/16", Slotted

2шт.
