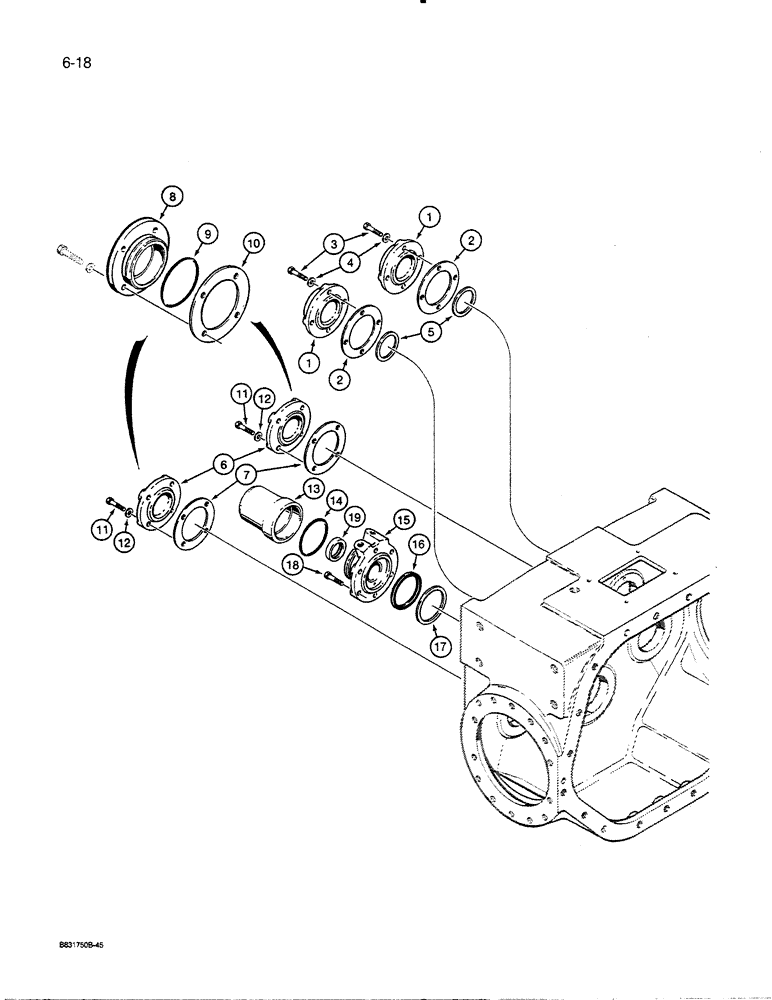

Запчасти Case 450C (6-18) - TRANSMISSION REAR COVERS, MODELS WITH DRY BRAKES, AND MODELS WITH WET BRAKES THRU P.I.N. 3080911 (06) - POWER TRAIN

1

A50271

COVER

- clutch shaft, rear

2шт.

2

A50348

SHIM,.003" Thk

(0.076 mm), Clutch shaft cover .003" Thk

1шт.

Part of Seal Kit, P/N G102662

1шт.

2

A50272

SHIM,.005" Thk

(0.127 mm), Clutch shaft cover .005" Thk

1шт.

Part of Seal Kit, P/N G102662

1шт.

2

CASA50347

SHIM

- .010" (0.254 mm) thick, clutch shaft cover

1шт.

Part of Seal Kit, P/N G102662

1шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

4

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

8шт.

Part of Seal Kit, P/N G102662

1шт.

5

G100338

SHIM,.028" Thk

(0.711 mm), Clutch shaft cover .028" Thk

1шт.

Part of Seal Kit, P/N G102662

1шт.

6

A50271

COVER

- pinion shaft, rear, used on models with dry brakes, if used

2шт.

7

A50348

SHIM,.003" Thk

(0.076 mm), Used with Ref. 6 cover .003" Thk

1шт.

Part of Seal Kit, P/N G102662

1шт.

7

A50272

SHIM,.005" Thk

(0.127 mm), Used with Ref. 6 cover .005" Thk

1шт.

Part of Seal Kit, P/N G102662

1шт.

7

A50347

PIN

- .010" (0.254 mm) thick, used with Ref. 6 cover

1шт.

Part of Seal Kit, P/N G102662

1шт.

8

G103644

COVER ASSY

COVER - pinion shaft, rear, used on models with wet brakes, if used

2шт.

9

G104780

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

- used with Ref. 8 cover

2шт.

10

G103645

SHIM,.003" Thk

(0.076 mm), Used with Ref. 8 cover .003" Thk

1шт.

10

G103647

SHIM,.010" Thk

(0.254 mm), Used with Ref. 8 cover .010" Thk

1шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

12

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

8шт.

Part of Seal Kit, P/N G102662

1шт.

13

G101696

PROTECTIVE COVER

COVER - main shaft, outer

1шт.

14

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- used on winch models only

1шт.

15

G102243

COVER

- main shaft, inner, may have 5 or 6 bolt holes

1шт.

16

A50055

SEALING RING

RING - square section, inner cover, main shaft

1шт.

Part of Seal Kit, P/N G102662

1шт.

17

A50053

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

Part of Seal Kit, P/N G102662

1шт.

17

40590

SHIM

- .005" (0.127 mm) thick

1шт.

Part of Seal Kit, P/N G102662

1шт.

17

40591

SHIM

- .010" (0.254 mm) thick

1шт.

Part of Seal Kit, P/N G102662

1шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

18

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

If used Hex, 3/8"-16 x 2 1/4", G5

1шт.

19

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- oil, main shaft cover

1шт.

G102662

SEAL

KIT - seal, Includes: Ref. 2, 4, 5, 7, 12, 16 and 17, for complete kit see Fig. 6-66

1шт.
