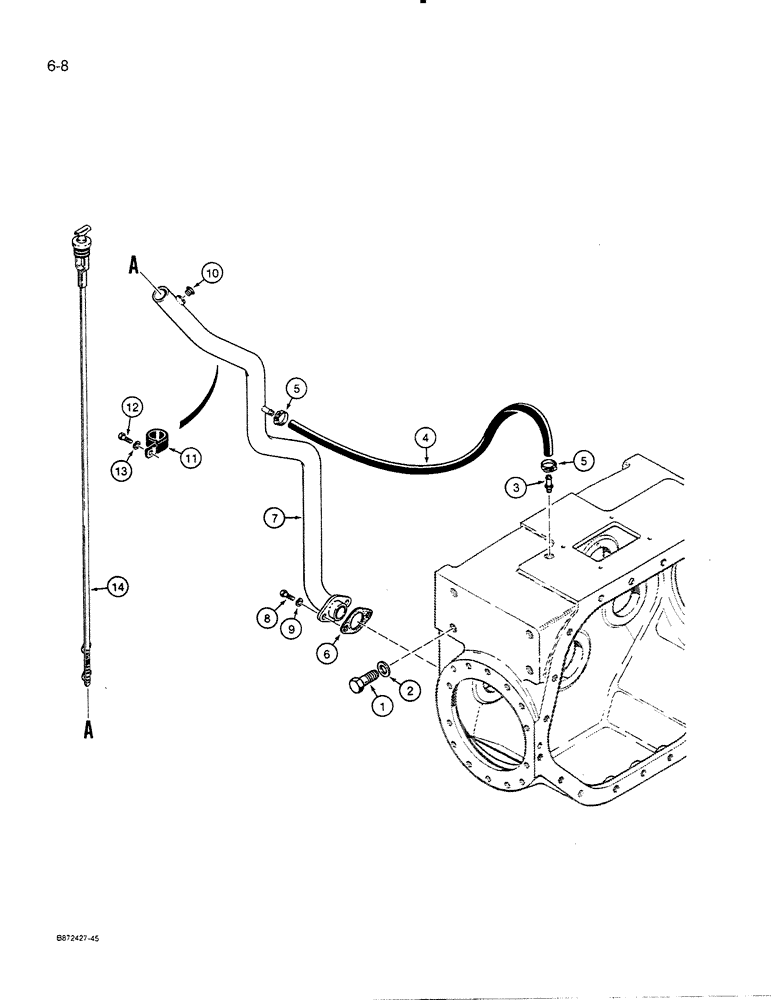

Запчасти Case 450C (6-08) - TRANSMISSION MOUNTING, BREATHER, AND DIPSTICK (06) - POWER TRAIN

1

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex head, 3/4" - 10 NC x 1-3/4", grade 8, use with Loctite, mounts transmission to main frame and seat and tank frame

8шт.

2

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, 3/4", hardened

8шт.

3

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

stem - straight, Breather hose 3/8" Hose X 1/4" NPTF Beaded

1шт.

4

S119435

HOSE - 12" (305 mm) long, cut from S118400 hose, see below, transmission breather

1шт.

Transmission assembly parts on Figs. 6-10 - 6-64 and 7-8 - 7-14.

1шт.

5

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adjustable #4, 0.25/0.62 Type F Worm

2шт.

6

R47073

GASKET

- dipstick tube

1шт.

7

R49304

TUBE,1.5" OD

- dipstick

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

D63543

BREATHER

- dipstick tube

1шт.

11

S86530

CLAMP

- dipstick tube to hydraulic reservoir

1шт.

12

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

R52797

DIPSTICK

- transmission

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Bulk 0.38" ID x 300.00"

1шт.

Transmission assembly parts on Figs. 6-10 - 6-64 and 7-8 - 7-14.

1шт.
