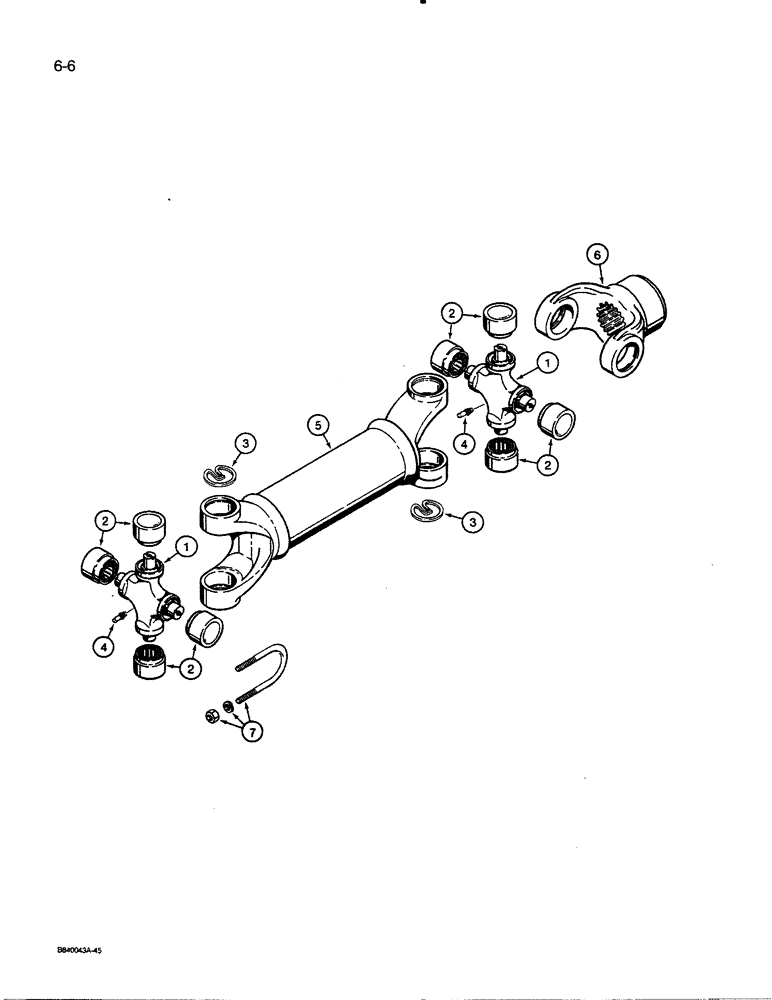

Запчасти Case 450C (6-06) - DRIVE SHAFT ASSEMBLY (06) - POWER TRAIN

R46708

DRIVE ASSY.

DRIVE SHAFT ASSEMBLY - torque converter to transmission, Includes: Ref. 1 - 7

1шт.

N9082

KIT

- universal joint, Includes: Ref. 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

3

11256

SNAP RING

RETAINING RING - universal joint

4шт.

4

219-417

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper, 1-5/8" (41 mm) long, replaces shorter grease fitting used in production on some models

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT - drive shaft assembly

1шт.

6

N7771

YOKE

- drive shaft to torque converter

1шт.

7

H183566

BOLT

U-BOLT - includes lock washers and nuts, universal joint to transmission yoke

2шт.
