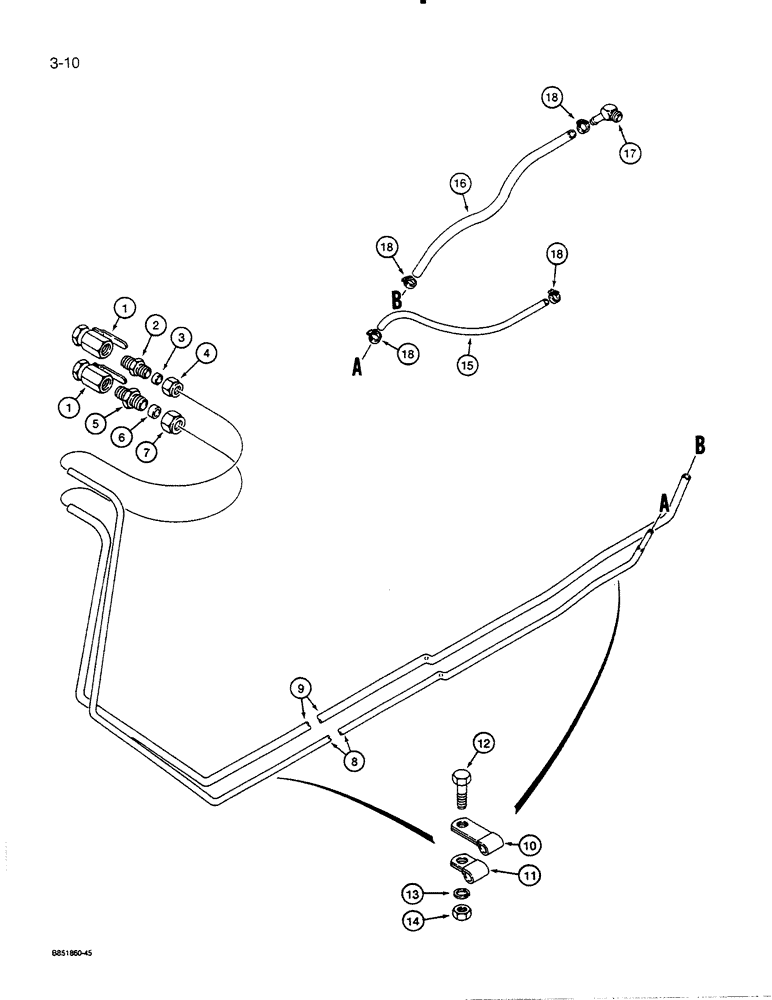

Запчасти Case 450C (3-10) - FUEL LINES, TUBES CLAMP UNDERNEATH ENGINE FRAME CHANNEL, IF USED (03) - FUEL SYSTEM

1

R47797

VALVE

SHUTOFF VALVE - fuel tank

2шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ADAPTER - straight, compression fitting, upper, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

222-102

SLEEVE,1/4" Tube

Compression fitting 1/4" Tube

1шт.

4

87017024

TUBE NUT,1/2"-24

NUT - compression fitting

1шт.

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

ADAPTER - straight, compression fitting, lower, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

6

222-103

SLEEVE,5/16" Tube

- Compression fitting 5/16" Tube

1шт.

7

222-113

TUBE NUT,9/16"-24

NUT - compression fitting

1шт.

8

R50607

FUEL TUBE,0.25" OD

TUBE - upper, fuel return, 1/4" OD

1шт.

9

R50606

FUEL TUBE,0.312" OD

TUBE - lower, fuel supply, 5/16" OD

1шт.

10

R13002

CLAMP

- tube, 1/4"

2шт.

11

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- tube, 5/16"

2шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

R50624

FUEL HOSE,4.76 mm ID x 150.00 mm, SAE 30R1

Return, Filter to Fuel Tank 4.76 mm ID x 150.00 mm, SAE 30R1

1шт.

16

REF

INSTRUCTION

HOSE - 9" (229 mm) long, 5/16" ID, cut from H424101 hose, see below, fuel tank to lift pump

1шт.

17

217-205

45 ELBOW,45 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

STEM FITTING - 45 degree, at fuel lift pump

1шт.

18

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adjustable #4, 0.25/0.62 Type F Worm

4шт.

H424101

HOSE,7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

1шт.
