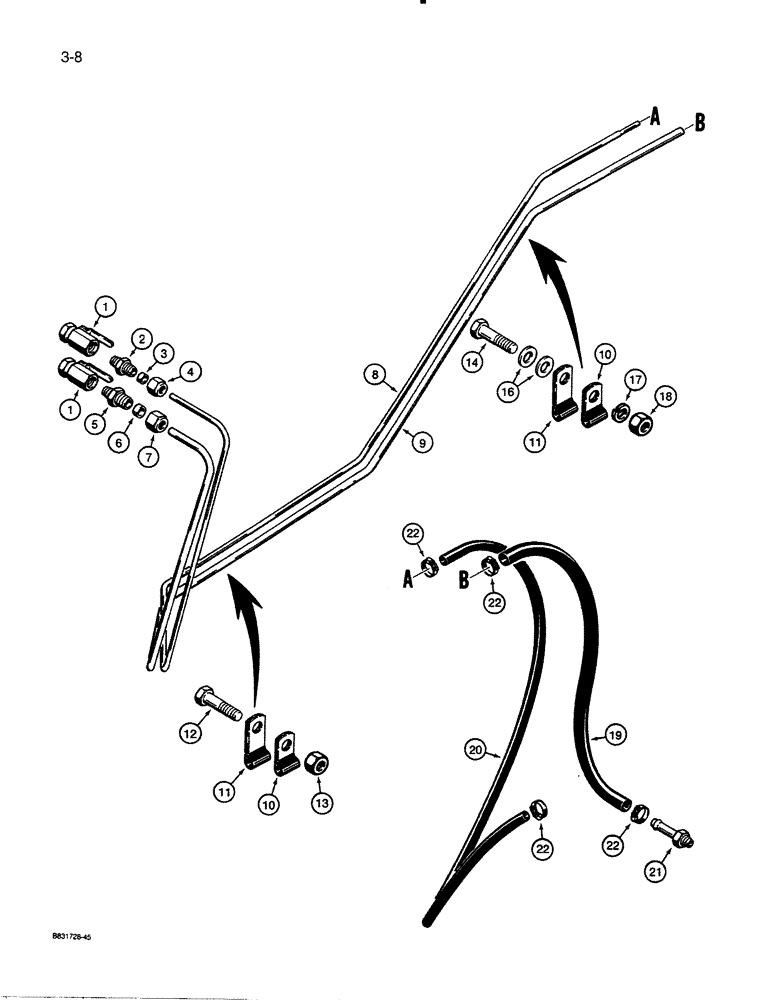

Запчасти Case 450C (3-08) - FUEL LINES, TUBES CLAMP TO SIDE OF ENGINE FRAME AND UPRIGHT, IF USED (03) - FUEL SYSTEM

1

R47797

VALVE

SHUTOFF VALVE - fuel tank

2шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ADAPTER - straight, compression fitting, upper, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

222-102

SLEEVE,1/4" Tube

Compression fitting 1/4" Tube

1шт.

4

87017024

TUBE NUT,1/2"-24

NUT - compression fitting

1шт.

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

ADAPTER - straight, compression fitting, lower, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

6

222-103

SLEEVE,5/16" Tube

- Compression fitting 5/16" Tube

1шт.

7

222-113

TUBE NUT,9/16"-24

NUT - compression fitting

1шт.

8

R47370

FUEL TUBE,0.25" OD

TUBE - upper, fuel return

1шт.

9

R47070

FUEL TUBE,0.312" OD

TUBE - lower, fuel supply

1шт.

10

S79579

CLAMP

- 1/4", upper tube

2шт.

11

51200191

CLAMP

- 5/16", lower tube

2шт.

12

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

14

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

At engine frame upright Hex, 1/2"-13 x 1 3/4", G5

1шт.

16

R24323

WASHER

- flat, hardened, 1/2"

2шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

19

REF

INSTRUCTION

HOSE - 9" (229 mm) long, lower, to fuel lift pump, 5/16" ID, cut from H424101 hose, see below

1шт.

20

R48952

PIPE

HOSE - upper, return to fuel tank, 3/16" ID

1шт.

21

217-206

FITTING

ADAPTER - at fuel lift pump

1шт.

22

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adjustable #4, 0.25/0.62 Type F Worm

4шт.

H424101

HOSE,7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

1шт.
