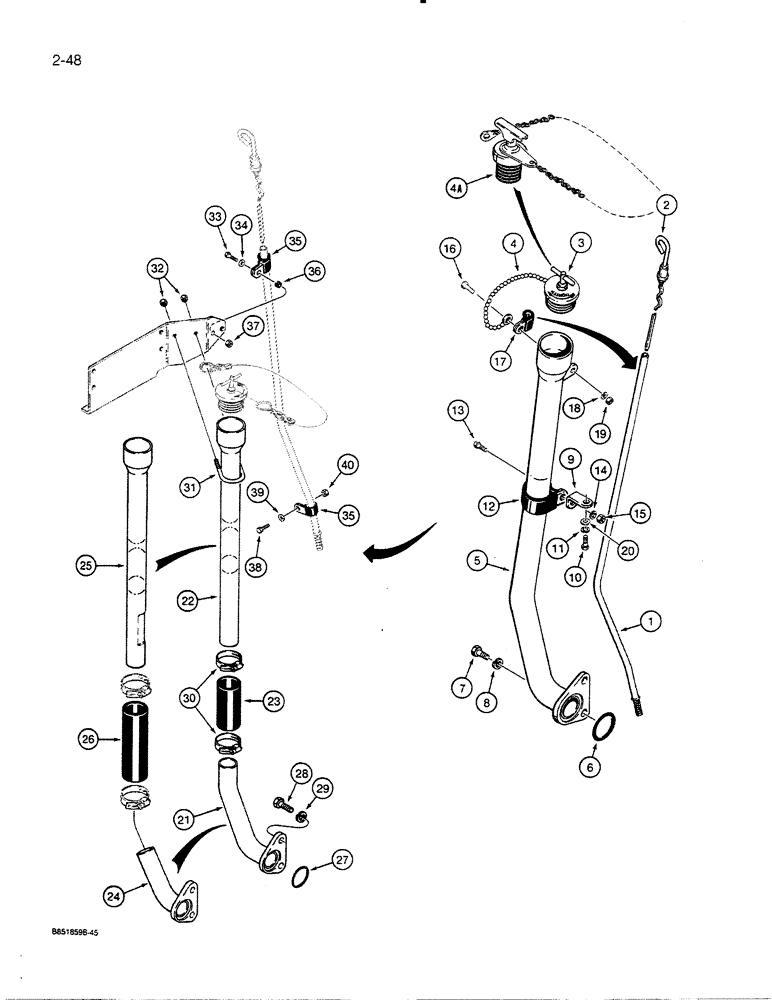

Запчасти Case 450C (2-48) - ENGINE DIPSTICK AND FILL TUBE (02) - ENGINE

1

R47970

TUBE,9.52 mm OD x 760, 173 mm L

- dipstick

1шт.

2

R48402

DIPSTICK

- engine oil

1шт.

3

A77424

FILLER CAP

CAP - filler tube, if used

1шт.

4

R50297

CHAIN (CE)

CHAIN - filler cap, if used

1шт.

4a

L115504

CAP

- filler tube, includes chain, if used

1шт.

MODELS WITH ONE-PIECE FILL TUBE, IF USED

1шт.

5

R48782

TUBE

- engine oil fill, one-piece, no longer used, replaced with two-piece fill tube, see below

1шт.

6

J906704

O-RING

- fill tube

1шт.

7

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 20 mm (8.8), plated

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

R50176

BRACKET

- fill tube clamp

1шт.

10

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

892-1108

LOCK WASHER,M8

plated, no longer used M8

1шт.

12

R50045

CLAMP

- fill tube

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

17

49845

CLAMP

- dipstick

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

20

H426775

WASHER

- flat, 5/16" bolt size, hardened, plated

1шт.

MODELS WITH TWO-PIECE FILL TUBE

1шт.

21

R52620

TUBE

- engine oil fill, lower, no longer used, replace with R53750 tube, Ref. 24, and R53775 hose, Ref. 26A

1шт.

22

R52623

TUBE

- engine oil fill, upper, without flat at bottom on, engine side, no longer used, replace with R53769 tube, Ref. 25

1шт.

23

R43922

HOSE

- engine oil fill, 4" (102 mm) long, cut from R53775 hose, Ref. 26A, used with Ref. 21 and 22 only, if used

1шт.

24

R53750

TUBE,24 mm L

- engine oil fill, used with Ref. 26 hose

1шт.

25

R53769

TUBE,38.1 mm OD x 540, 40 mm L

- engine oil fill, upper, with flat at bottom on engine side, used with Ref. 26 hose

1шт.

26

R53715

HOSE,38.10 mm ID x 170.00 mm, SAE 20R1 Class B

Engine Oil Fill, Cut from R53775 Hose, Ref. 26A 38.10 mm ID x 170.00 mm, SAE 20R1 Class B

1шт.

26a

R53775

HOSE,38.10 mm ID x 240.00 mm, SAE R1 Class B

if Used, Not Shown 38.10 mm ID x 240.00 mm, SAE R1 Class B

1шт.

27

J906704

O-RING

- fill tube

1шт.

28

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 25 mm (8.8)

2шт.

29

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

2шт.

30

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable, engine oil fill 1.25/2.125 HD Worm

2шт.

31

L73167

U-BOLT

- upper engine oil fill tube to coolant recovery bottle bracket

1шт.

32

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

2шт.

33

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

34

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

35

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- dipstick tube

2шт.

36

R39516

GROMMET

- rubber, vibration dampener, used with upper dipstick tube clamp only

1шт.

37

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

38

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

39

195-102

WASHER,1/4"

- flat, , plated 1/4"

1шт.

40

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

1шт.

LH Side Shield Support is cover is referenced

1шт.

in ref. # 7 on Figure 9-44

1шт.
