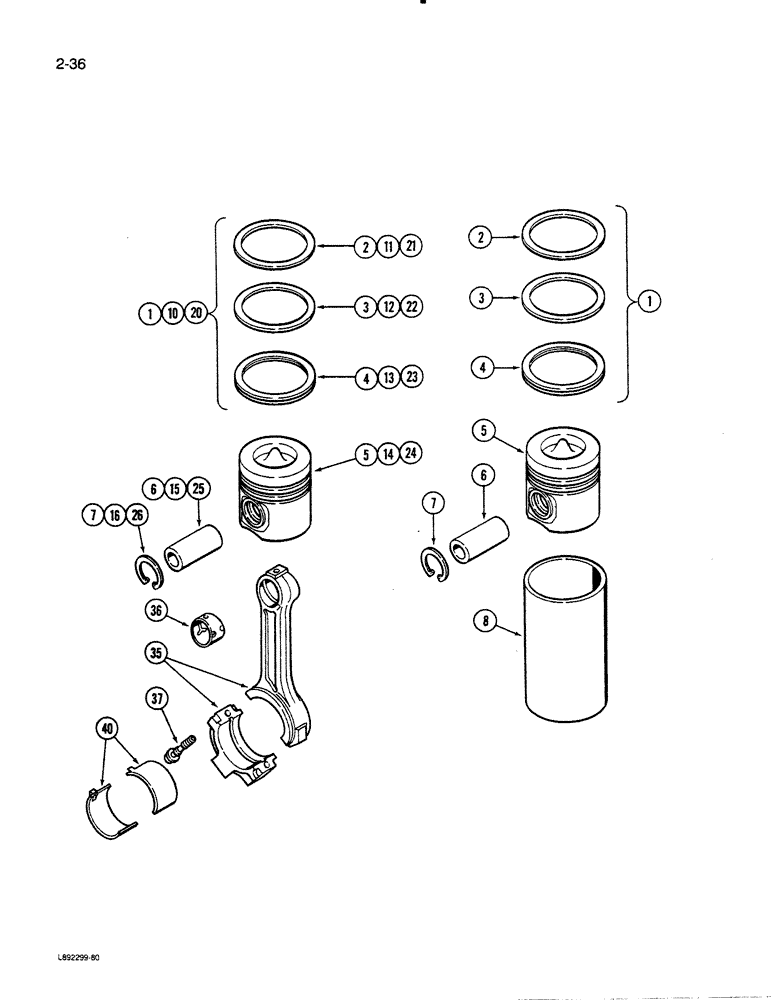

Запчасти Case 450C (2-36) - PISTONS, 4-390 ENGINE, ENGINE SERIAL NUMBER 44117591 AND AFTER (02) - ENGINE

A77410

PISTON

KIT - engine, standard, Includes: Ref. 1 - 7

4шт.

A77410/411/412 are short pin piston kits, (stamped 6223,6209, and 6208 on piston - A77818/819/820 are long pin piston kits (stamped 1880, 1882, 1881 on piston) - do not mix - 11/98 - tba/ tsg.

1шт.

1

A77401

PISTON RING SET

RING KIT - piston, standard, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - engine, standard, stamped 6223

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

- retainer, pin

2шт.

8

J904166

SLEEVE

LINER - piston, used only in engine block repair, when liner is installed, use only A77410 Piston Kit

1шт.

A77411

PISTON

KIT - engine (0.5 mm oversize), Includes: Ref. 10 - 16

4шт.

A77410/411/412 are short pin piston kits, (stamped 6223,6209, and 6208 on piston - A77818/819/820 are long pin piston kits (stamped 1880, 1882, 1881 on piston) - do not mix - 11/98 - tba/ tsg.

1шт.

10

A77463

PISTON RING SET

RING KIT - engine (0.5 mm oversize), Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - engine (0.5 mm oversize), stamped 6209

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

- retainer, pin

2шт.

A77412

PISTON

KIT - engine (1.0 mm oversize), Includes: Ref. 20 - 26

4шт.

A77410/411/412 are short pin piston kits, (stamped 6223,6209, and 6208 on piston - A77818/819/820 are long pin piston kits (stamped 1880, 1882, 1881 on piston) - do not mix - 11/98 - tba/ tsg.

1шт.

20

A77464

PISTON RING SET

RING KIT - engine (1.0 mm oversize), Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - engine (1.0 mm oversize), stamped 6208

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

- retainer, pin

2шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes: Ref. 36 and 37

4шт.

35

JR901569

ROD

Assembly - connecting, remanufactured

4шт.

35

JC901569

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit

4шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

35

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

35

84145405R

REMAN-CONNECTING ROD

450C, 455C, Both PRIOR TO ENGINE S/N 44117591, Reman For New PN J901569

4шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - rod to piston pin, order J901569, connecting

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex special, MJ11 - 1.25 x 59 mm, connecting rod

2шт.

40

A77465

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, standard)

4шт.

40

A77466

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, 0.25 mm undersize)

4шт.

40

A77467

BEARING LINER

BEARING KIT - connecting rod (set, upper and lower, 0.5 mm undersize)

4шт.

40

A77468

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, 0.76 mm undersize)

4шт.

40

A77469

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, 1.0 mm undersize)

4шт.
