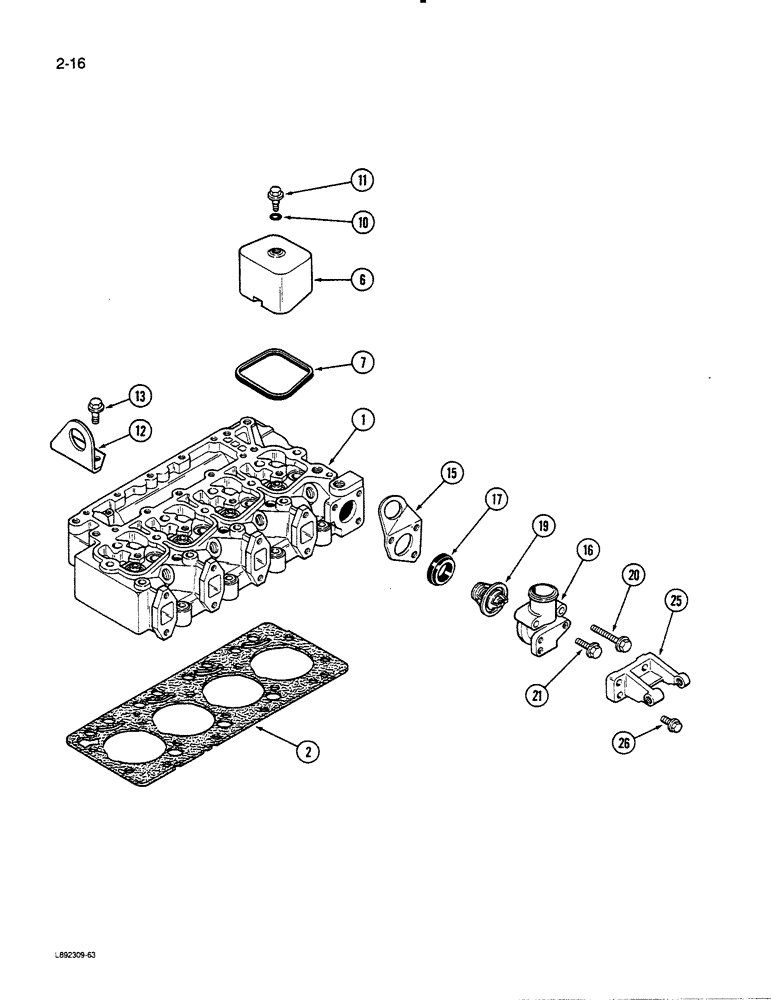

Запчасти Case 450C (2-16) - CYLINDER HEAD COVERS, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, engine, see Fig. 2-18

1шт.

2

J917354

GASKET

- cylinder head, standard, 1 Notch, replaces J907054

1шт.

2

J917355

GASKET

- cylinder head, 0.23 mm thicker, 2 Notches, replaces J907055

1шт.

2

J917356

GASKET

- cylinder head, 0.51 mm thicker, 3-Notches, replaces J907056

1шт.

6

J902604

COVER

- rocker

4шт.

7

J902666

GASKET

SEAL - rocker cover

4шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, replaces J901837

4шт.

11

J907049

BOLT,Hex

- special, 8 mm - 1.25 x 21.25 mm, replaces J902375

4шт.

11

J902375

FLANGE BOLT,Hex

BOLT - hex flange head, 8 mm - 1.25 x 13.5 mm, if equipped

4шт.

12

J908118

BRACKET

- lifting, rear, replaces J903170

1шт.

13

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex flange head, 12 mm - 1.75 x 25 mm

2шт.

15

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

16

J914409

HOUSING

- thermostat, replaces J903756

1шт.

17

J903301

GASKET

- housing, thermostat

1шт.

19

J917324

THERMOSTAT

- water, replaces J912587, housing

1шт.

20

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 70 mm, Replaces J903096, Thermostat and housing

2шт.

21

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 35 mm, Replaces J900632, Thermostat and housing

1шт.

25

J910713

SUPPORT

- alternator mounting, replaces J908774, thermostat and housing

1шт.

26

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex flange head, 8 mm - 1.25 x 25 mm, thermostat and housing

3шт.
