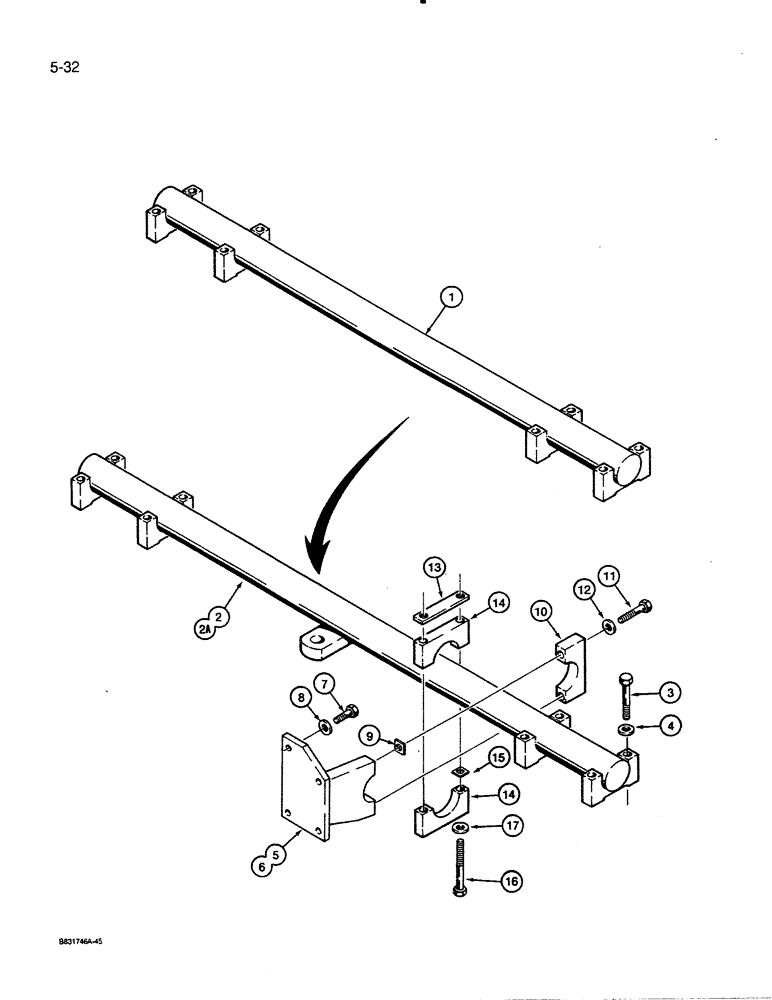

Запчасти Case 450C (5-32) - REAR PIVOT SHAFT (11) - TRACKS/STEERING

1

R46898

SHAFT

- pivot, all models except 64" (1626 mm) gauge LGP dozer models

1шт.

2

R41279

BAR

SHAFT - pivot, 64" (1626 mm) gauge LGP dozer models only, with drawbar hitch, cannot be used on models with wet brakes, see Ref. 2A shaft

1шт.

2a

R53785

SHAFT

- pivot, 64" (1626 mm) gauge LGP dozer models only, without drawbar hitch, used on models with wet brakes only, not shown

1шт.

3

26-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

- hex head, 3/4" - 10 NC x 4", grade 8

8шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, 3/4"

8шт.

5

R46896

SUPPORT

BRACKET - pivot shaft to final drive housing, right-hand

1шт.

6

R46897

SUPPORT

BRACKET - pivot shaft to final drive housing, left-hand, not shown

1шт.

7

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8, use with Loctite

8шт.

8

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, hardened, 3/4"

8шт.

9

R28516

SPACER

- clamp, upper

2шт.

10

D34663

CLAMP

- front, pivot shaft

2шт.

11

13-1464

BOLT,Hex, 7/8" - 9 x 4", Gr 5

- hex head, 7/8" - 9 NC x 4", use with Loctite 242

4шт.

12

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- flat, hardened, 7/8"

4шт.

13

D34722

BLOCK

- tapped, clamp, top

2шт.

14

D34663

CLAMP

- pivot shaft to engine frame

4шт.

15

R28516

SPACER

- clamp, front

2шт.

16

113-814

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

- hex head, 7/8" - 9 NC x 7-1/2", plated

4шт.

17

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- flat, hardened, 7/8"

4шт.
