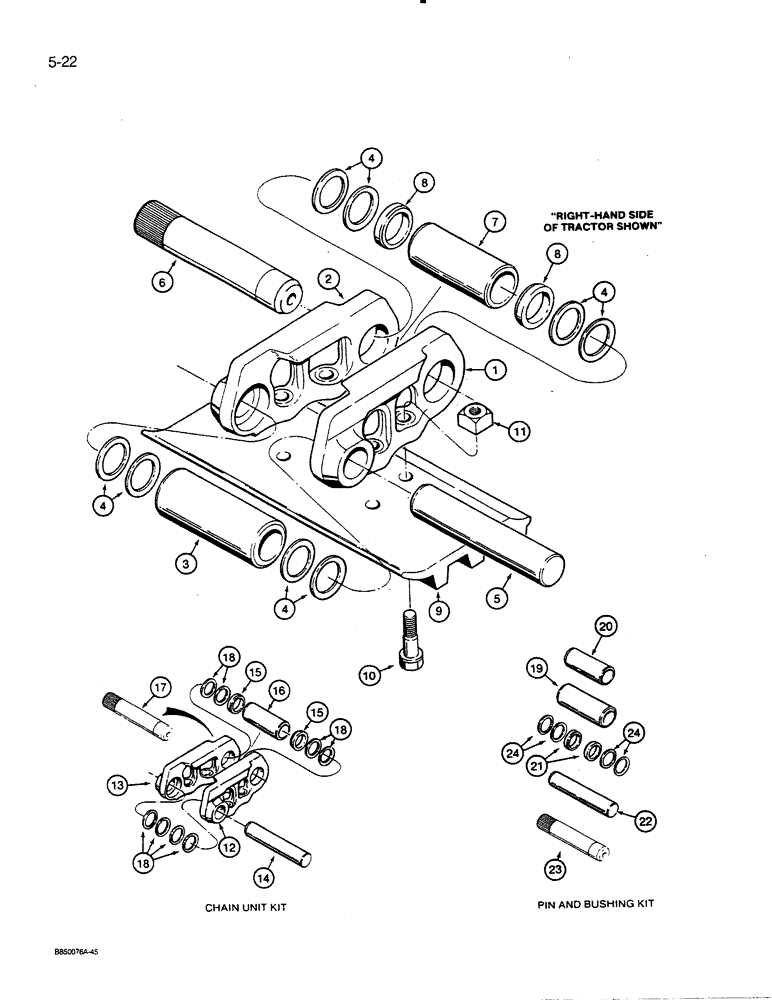

Запчасти Case 450C (5-22) - SEALED TRACK CHAIN - R56722 (11) - TRACKS/STEERING

R56722

CHAIN (CE)

CHAIN ASSEMBLY - 39 unit, used on LGP extended track and 53 inch gauge long track dozer models, if used, Includes: Ref. 1 - 8

2шт.

R56722 IS A DRY CHAIN.

1шт.

1

R52284

LINK

- track, right-hand

39шт.

2

R52285

LINK

- track, left-hand

39шт.

3

R52286

BUSHING

- standard pin, 1-7/8 inch (47 mm) OD

38шт.

4

R52291

SEAL

SPRING - Belleville, bushing

156шт.

5

R52288

PIN

- standard, 1-1/8 inch (29 mm) diameter

38шт.

6

R54280

PIN,28.24mm OD x 164mm L

- master

1шт.

7

R52287

BUSHING

- master pin

1шт.

8

R52290

SPACER

- master bushing

2шт.

9

REF

INSTRUCTION

SHOE - track, see Figs. 5-28 and 5-30 for options

72шт.

10

R24688

FLANGE BOLT

BOLT - special, 1/2-20 NF-3a---1.56in length, used with all track shoes except self-cleaning track shoes, see Fig. 5-28

312шт.

11

R24578

NUT

- square, special, 1/2 inch NF

312шт.

R53370

SEGMENT

KIT - chain unit, includes instruction sheet, Includes: Ref. 12 - 18

1шт.

12

R52284

LINK

- track, right-hand

1шт.

13

R52285

LINK

- track, left-hand

1шт.

14

R52288

PIN

- track, standard

2шт.

15

R52290

SPACER

- bushing

2шт.

16

R52287

BUSHING

- master pin

1шт.

17

R54280

PIN,28.24mm OD x 164mm L

- master

1шт.

18

R52291

SEAL

SPRING - Belleville, bushing

8шт.

R56726

SPLIT PIN/SAFETY PIN

KIT - pin and bushing, includes instruction sheet, services complete track chain for both sides of tractor, Includes: Ref. 19 - 24

1шт.

19

R52286

BUSHING

- standard pin, long

70шт.

REF: 19 BUSHING LENGTH IS 4.598" LONG

1шт.

20

R52287

BUSHING

- master pin, short

2шт.

21

R52290

SPACER

- master bushing

4шт.

22

R52288

PIN

- standard

70шт.

23

R54280

PIN,28.24mm OD x 164mm L

- master

2шт.

24

R52291

SEAL

SPRING - Belleville, bushing

288шт.
