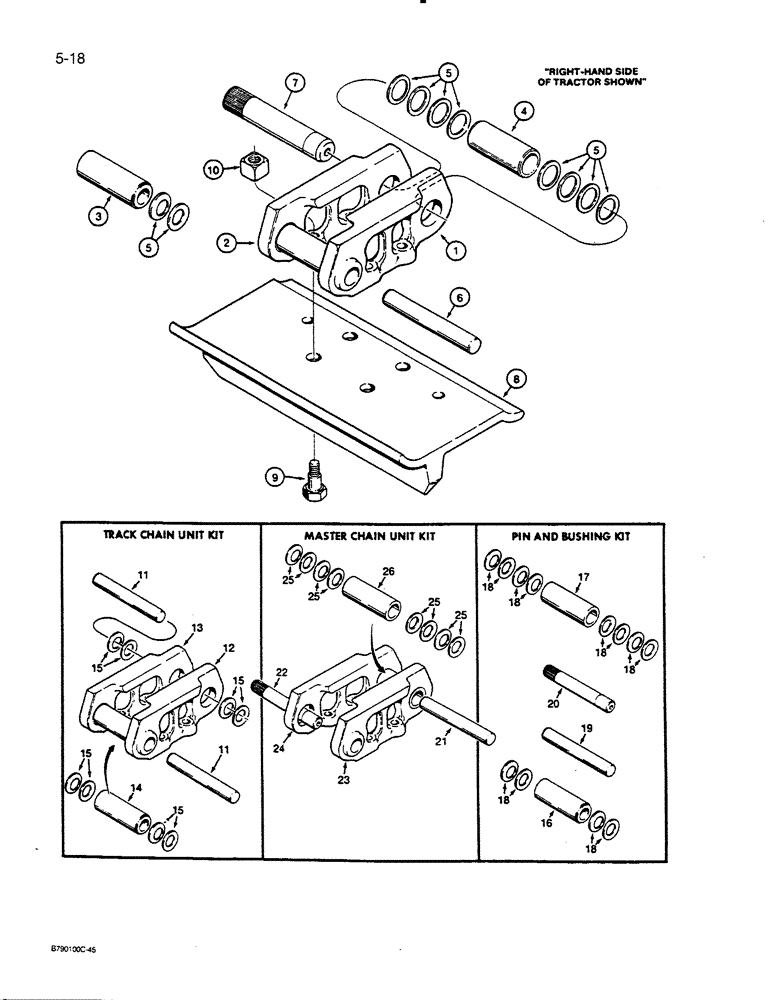

Запчасти Case 450C (5-18) - SEALED TRACK CHAIN - R24571 (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
R24571
CHAIN (AG)
CHAIN ASSEMBLY - 36 unit, used on all models except LGP extended track and 53 inch gauge long track dozer models, one per each side of tractor, assembly no longer available, replace with R52283 chain assembly on Fig. 5-20, Includes: Ref. 1 - 7
2шт.
1
R24573
LINK
- track chain, right-hand
36шт.
2
R24572
LINK
- track chain, left-hand
36шт.
3
R24576
BUSHING
- track, standard, 4-5/16" (110 mm) long, 1-7/8" (47 mm) diameter
35шт.
4
R24577
BUSHING
- track, master pin, 4-1/16" (104 mm) long
1шт.
5
R24694
WASHER
BELLEVILLE SPRING - pin
148шт.
6
R24616
PIN,31.83mm OD x 166.12mm L
- track, standard, 1-1/4" (32 mm) diameter, .003" (0.076 mm) oversize
35шт.
7
R24617
PIN
- track, master, .003" (0.076 mm) oversize
1шт.
8
REF
INSTRUCTION
TRACK SHOE - see Figs. 5-28 and 5-30 for options
72шт.
9
R24688
FLANGE BOLT
BOLT - special, 1/2" - 20 NF 1.56 inch, used with all track shoes except self-cleaning track shoes, see Fig. 5-28
288шт.
10
R24578
NUT
- special, square, 1/2" - 20 NF
288шт.
R24742
KIT
- track chain unit, Includes: Ref. 11 - 15
70шт.
11
R24616
PIN,31.83mm OD x 166.12mm L
- track, standard, .003" (0.076 mm) oversize
1шт.
12
R24573
LINK
- track chain, right-hand
1шт.
13
R24572
LINK
- track chain, left-hand
1шт.
14
R24576
BUSHING
- track, standard, 4-5/16" (110 mm) long
1шт.
15
R24694
WASHER
BELLEVILLE SPRING - pin
8шт.
R24743
KIT
- pin and bushing, Includes: Ref. 16 - 20
1шт.
16
R24576
BUSHING
- track, standard, 4-5/16" (110 mm) long
70шт.
17
R24577
BUSHING
- track, master, 4-1/16" (104 mm) long
2шт.
18
R24694
WASHER
BELLEVILLE SPRING - pin
296шт.
19
R24616
PIN,31.83mm OD x 166.12mm L
- track, standard, .003" (0.076 mm) oversize
70шт.
20
R24617
PIN
- track, master, .003" (0.076 mm) oversize
2шт.
R24741
DRAG LINK
KIT - master chain unit, Includes: Ref. 21 - 26
2шт.
21
R24616
PIN,31.83mm OD x 166.12mm L
- track, standard, .003" (0.076 mm) oversize
1шт.
22
R24617
PIN
- track, master, .003" (0.076 mm) oversize
1шт.
23
R24573
LINK
- track chain, right-hand
1шт.
24
R24572
LINK
- track chain, left-hand
1шт.
25
R24694
WASHER
BELLEVILLE SPRING - pin
8шт.
26
R24577
BUSHING
- master, 4-1/16" (104 mm) long
1шт.
Выбрано товаров: 30
