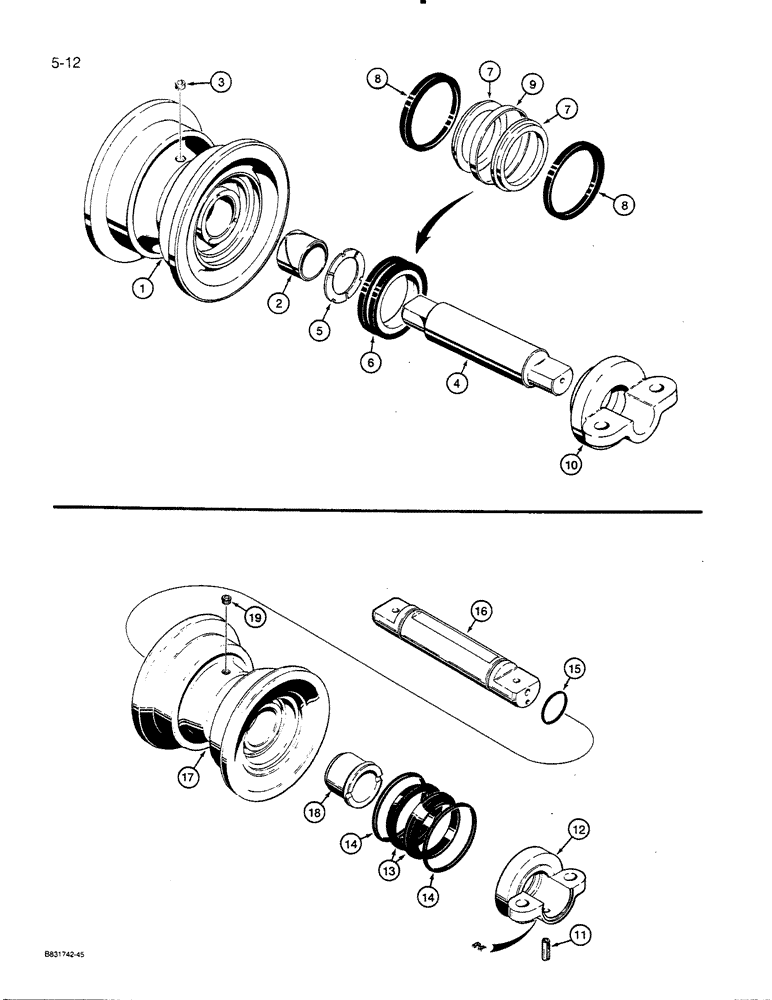

Запчасти Case 450C (5-12) - TRACK ROLLER ASSEMBLY, CASE-MADE TRACK ROLLER ASSEMBLY (11) - TRACKS/STEERING

R24547

ROLLER

TRACK ROLLER ASSEMBLY - Case-made, assembly no longer available, order R33565 track roller assembly below, Includes: Ref. 1 - 10

10шт.

1

R24546

ROLLER

HUB - track roller, no longer available, order R33565 roller assembly below

1шт.

2

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

- split

2шт.

3

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

4

R24544

SHAFT

- roller

1шт.

5

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

THRUST WASHER - track roller

2шт.

6

R39273

SEAL

FACE SEAL - track roller, Includes: Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

RING - seal retaining

2шт.

D36826

SEAL KIT

KIT - repair, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

10

R24545

RETAINER

BRACKET - track roller mounting

2шт.

R33565

ROLLER

TRACK ROLLER ASSEMBLY - Intertrac, use 5 per side on loader, standard 53 inch gauge dozer, and standard length LGP dozer models; use 6 per side on extended track LGP and 53 inch gauge long track dozer models, Includes: Ref. 11 - 19

10-12шт.

11

R33570

PIN

- bracket retaining, intertrac track roller assembly

2шт.

12

R33568

BRACKET

- track roller mounting, intertrac assembly

2шт.

S113075

SEAL

FACE SEAL - intertrac track roller assembly, Includes: Ref. 13 and 14

2шт.

13

NSS

NOT SOLD SEPARAT

RING - seal, intertrac track roller assembly

2шт.

14

N6846

O-RING,75.7mm ID x 9.5mm Width

- face seal, intertrac track roller assembly

2шт.

15

290987R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- shaft, intertrac track roller assembly

2шт.

16

R33569

SHAFT

- roller, intertrac track roller assembly

1шт.

R33567

ROLLER

HUB ASSEMBLY - intertrac track roller assembly, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

HUB - intertrac track roller assembly

1шт.

18

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- hub, intertrac track roller assembly

2шт.

19

R33557

PLUG

- intertrac track roller assembly

1шт.
