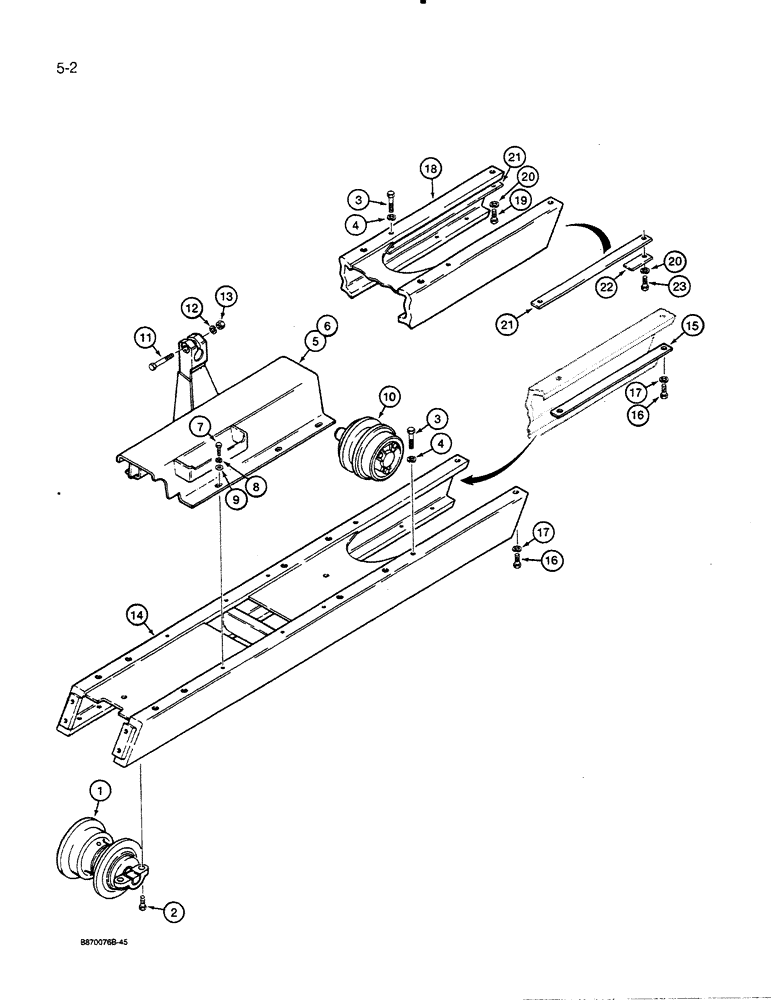

Запчасти Case 450C (5-02) - TRACK FRAME, RECOIL HOUSING, AND ROLLERS, PARTS USED ON ALL MODELS (11) - TRACKS/STEERING

1

R33565

ROLLER

- track, parts list Fig. 5-12, use 5 per side on loader, standard 53 inch gauge dozer, and standard length LGP dozer models; use 6 per side on extended track LGP and 53 inch gauge long track dozer models

10-12шт.

REF: #1 DEVIATION DATED 2/21/89 DUE TO PARTS SHORTAGE OF 450C S.F. TRACK ROLLER R33565 SIX TRACTORS WERE BUILT USING

1шт.

BERCO S.F. ROLLER # CA378 WHICH IS SIMILAR TO OBSOLETE J.I. CASE # R24547 PIN JAK0013254- JAK0013259 BUILT MARCH 1989. SUBSTITUTE BERCO S.F. ROLLERS.

1шт.

2

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Use with Loctite 242 Hex, 5/8"-11 x 1 1/2", G5, Full Thd

40-48шт.

3

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

R56487

HOUSING

- recoil, with carrier roller bracket, right-hand

1шт.

6

R56486

HOUSING

- recoil, with carrier roller bracket, left-hand

1шт.

7

26-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

10шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , No longer used, not required 1/2"

10шт.

9

R24323

WASHER

- flat, 1/2 inch, hardened

10шт.

10

R33965

ROLLER

- carrier, parts list Fig. 5-14

2шт.

11

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

THE CLAMP THAT REF 11 BOLT GOES THRU IS R24540.

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

14

R49407

FRAME

- track, loader, standard 53 inch gauge dozer and 64 inch gauge standard length LGP dozer models, all models except LGP extended track and 53 " gauge long track dozer models

2шт.

15

D35276

PLATE

WEAR PLATE - track frame, all models except LGP extended track and 53" gauge long track dozer models

4шт.

16

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- lock, 5/8 inch, all models except LGP extended track and 53" gauge long track dozer models

4шт.

18

R54428

FRAME

- track, LGP extended track and 53 inch gauge long track dozer models

2шт.

19

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Inner, LGP extended track and 53 " gauge long trackdozer models Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , LGP extended track and 53 " gauge long track dozer models 5/8"

4шт.

21

D35276

PLATE

WEAR PLATE - track frame, LGP extended track and 53" gauge long track dozer models

4шт.

22

R54430

LARGE PLATE

PLATE - idler stop, use on outer side of track frame only, LGP extended track and 53" gauge long track dozer models

2шт.

23

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Outer, LGP extended track and 53" gauge long track dozer models Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.
