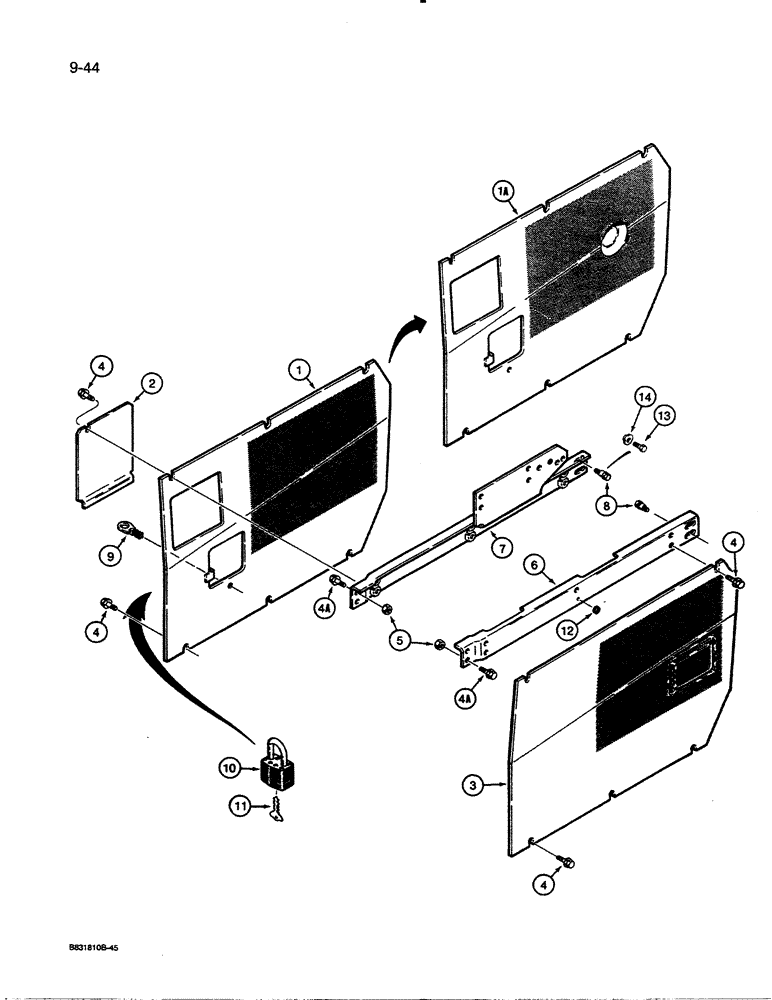

Запчасти Case 450C (9-44) - SIDE SHIELDS (09) - CHASSIS/ATTACHMENTS

1

R48058

PANEL

SHIELD - engine side, left-hand, used on models without a turbocharger, if used

1шт.

1a

R50409

FRAME

SHIELD - engine side, left-hand, used on models with a turbocharger, if used

1шт.

2

R48060

COVER

- left-hand side shield, air cleaner access

1шт.

3

R48061

PANEL

SHIELD - engine side, right-hand

1шт.

4

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

11шт.

The 1/2" square bolt that goes with P/N 121-429 and P/N 121-428 is P/N 129-857.

1шт.

4a

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

The 1/2" square bolt that goes with P/N 121-429 and P/N 121-428 is P/N 129-857.

1шт.

5

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

6

R51790

SUPPORT

- side shield, right-hand

1шт.

7

R53116

SUPPORT

- side shield, left-hand, replaces any other left-hand support that may have been used on some models

1шт.

8

R49739

BOLT

ASSEMBLY - special, no longer available, order Ref. 13 and 14

4шт.

9

R42674

LOCKING DEVICE

FASTENER - access door

1шт.

10

D93753

PADLOCK

- access door, Includes: Keys

1шт.

11

R29555

KEY

- for Master padlock only

2шт.

11

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

12

A161780

BUMPER

- rubber, right-hand support only, if used

1шт.

13

413-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

- hex, 1/2 NC x 7/8 inch

4шт.

14

R54996

SPACER

- bolt

4шт.
