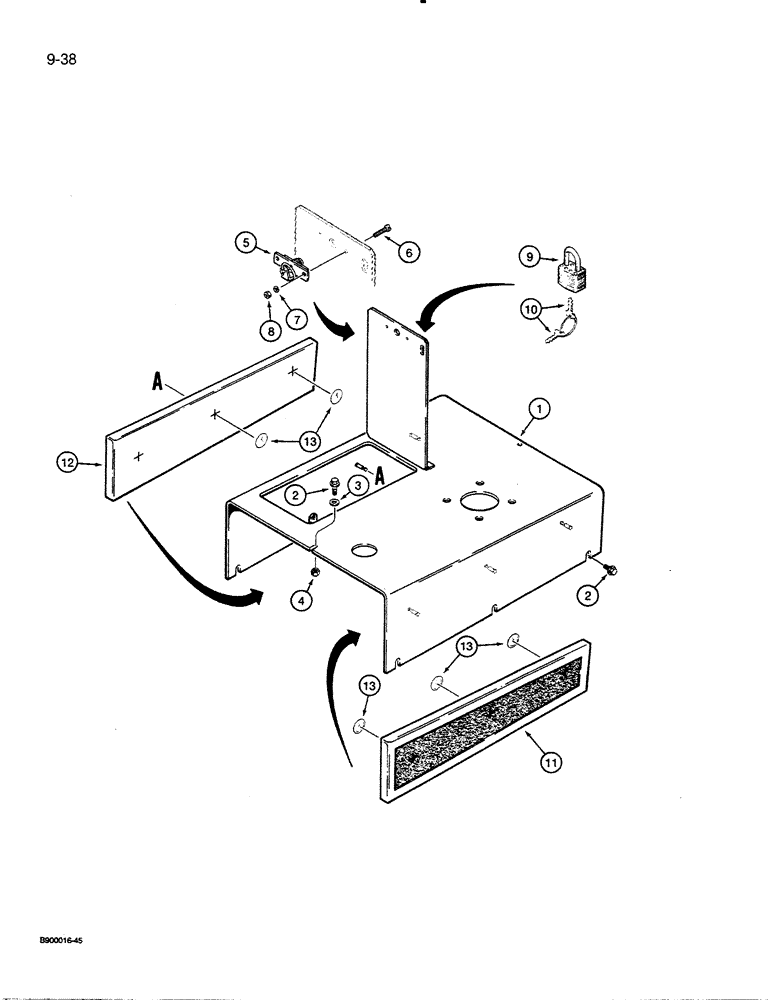

Запчасти Case 450C (9-38) - HOOD (09) - CHASSIS/ATTACHMENTS

1

R46906

HOOD

- used on all models

1шт.

2

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

7шт.

3

R24718

WASHER

- flat, hardened, 1/2", if used

1шт.

4

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, , If used 1/2"-13, GB

1шт.

5

L102515

LATCH

- air cleaner access

1шт.

6

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No 10 - 24 NC x 1/2", plated

2шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

8

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

2шт.

9

D93753

PADLOCK

- air cleaner access, Includes: Keys

1шт.

10

R29555

KEY

- for Master padlock only

2шт.

10

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

11

R44353

NOISE PROTECTION

PAD - hood, noise reduction, vinyl covered, right-hand, if used

1шт.

12

R44352

NOISE PROTECTION

PAD - hood, noise reduction, vinyl covered, left-hand, if used

1шт.

13

R37160

RETAINER

- noise reduction pads, if used

5шт.
