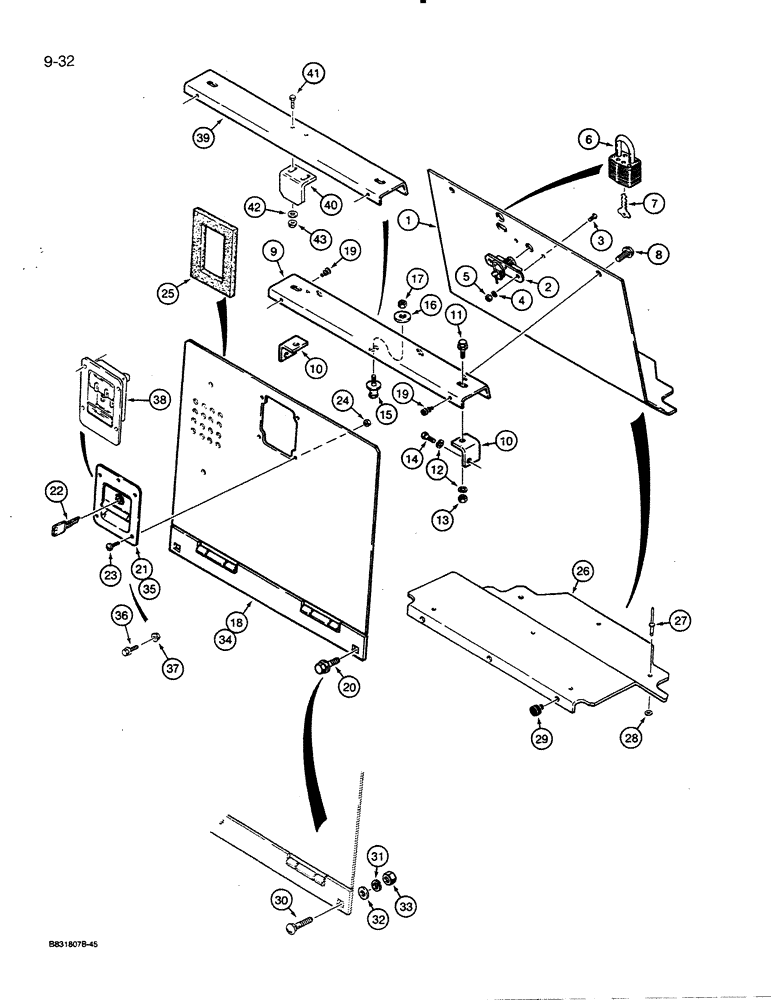

Запчасти Case 450C (9-32) - BATTERY COMPARTMENT AND REAR COVER, MODELS WITHOUT A BACKHOE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
R49189
COVER
- battery compartment, behind seat, vertical style, if used, used on models with backup alarm bolted to the inner side of the fuel tank
1шт.
2
L102515
LATCH
- battery compartment cover, if used
1шт.
3
182-516
SCREW,Sl Pan Hd, #10 - 24 x 1/2"
MACHINE SCREW - pan head slotted, No 10 - 24 NC x 1/2", plated
2шт.
4
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
2шт.
5
129-17
NUT,Hex, #10 - 24
NUT - hex, No. 10 - 24 NC, plated
2шт.
6
D93753
PADLOCK
- battery cover, Includes: Keys, if used
1шт.
7
R29555
KEY
- for Master padlock only
2шт.
7
D93751
SET OF 2 KEYS
KEY - for Yale padlock only
2шт.
8
121-428
FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd
BOLT, , If used Hex Flg, 1/2"-13 x 1", G8, Full Thd
2шт.
9
R49177
COVER
BRACKET - cover mounting, if used, used with Ref. 15 - 17, and Ref. 35
1шт.
10
R48725
SUPPORT
ANGLE - bracket mounting
2шт.
11
121-234
BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd
2шт.
12
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
13
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
15
R49214
BOLT
STRIKER - rear cover latch, used with Ref. 9 bracket, if used
1шт.
16
D52275
WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk
- flat, hardened, special, if used
1шт.
17
131-203
LOCK NUT,3/8"-16, GB, LH
NUT - hex, self-locking, 3/8" - 16 NC, plated, if used
1шт.
18
R50769
COVER
- rear, hinged, with center gusset, includes decals, no longer available, order R55501 cover, Ref. 34 plus R48618 and 321-6714 Decals, Ref. 5 and 17 on Fig. 9-64
1шт.
19
A161780
BUMPER
- cover mounting bracket, Ref. 9
2-4шт.
20
121-429
FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd
BOLT, , No longer used, replace with Ref. 30 -33 Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd
2шт.
21
R49213
LATCH ASSY.
LATCH - rear cover, used with Ref. 23 and 24 mounting hardware, no longer available, order Ref. 35 - 37
1шт.
22
R49215
KEY
- latch
1шт.
23
182-516
SCREW,Sl Pan Hd, #10 - 24 x 1/2"
MACHINE SCREW - pan head slotted, No 10 - 24 NC x 1/2", used with Ref. 21
4шт.
24
F45165
SPECIAL NUT,#10-24
NUT - hex, self-locking, No 10 - 24 NC, used with Ref. 21
4шт.
25
R48335
SEAL
- backup alarm, used on models with backup alarm bolted to the inner side of the fuel tank, if used, attach with adhesive, see below
1шт.
26
R51662
COVER
- battery(ies), low horizontal style, if used, used on models with backup alarm bolted to rear cover
1шт.
27
151-522
RIVET,Pop, 3/16" x .575"
- pop, 3/16" x 17/32"
6шт.
28
195-511
WASHER,#10
- flat, 3/16", plated
6шт.
29
F22426
STOP
BUMPER - rubber
3шт.
30
111-520
CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2
- 1/2" - 13 NC x 1-1/4", plated
2шт.
31
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
32
195-533
WASHER,1/2", SAE
- flat, 1/2", plated
2шт.
33
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
34
R55502
COVER
- rear, hinged, with center gusset, without decals
1шт.
35
R54912
LATCH ASSY.
LATCH - rear cover, used with Ref. 9, 15 - 17, 36 and 37, used with 1/4 inch mounting hardware if used
1шт.
36
121-134
FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd
4шт.
37
131-1351
FLANGE NUT,Flg, 1/4"-20
NUT, LOCK, Flg, 1/4"-20
4шт.
38
R56221
LATCH
- rear cover, used with Ref. 39 and 40, if used
1шт.
39
R57059
COVER
BRACKET - cover mounting, used with Ref. 38 and 40, if used
1шт.
40
R57058
SUPPORT
STRIKER - rear cover latch, used with Ref. 38 and 39, if used
1шт.
41
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch, If used
2шт.
42
495-21031
WASHER,1/4"
- flat, 5/16 x 47/64 x 1/16 inch, if used
2шт.
43
131-1351
FLANGE NUT,Flg, 1/4"-20
NUT, LOCK, , If used Flg, 1/4"-20
2шт.
345-44
ADHESIVE
- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces
1шт.
Выбрано товаров: 45
