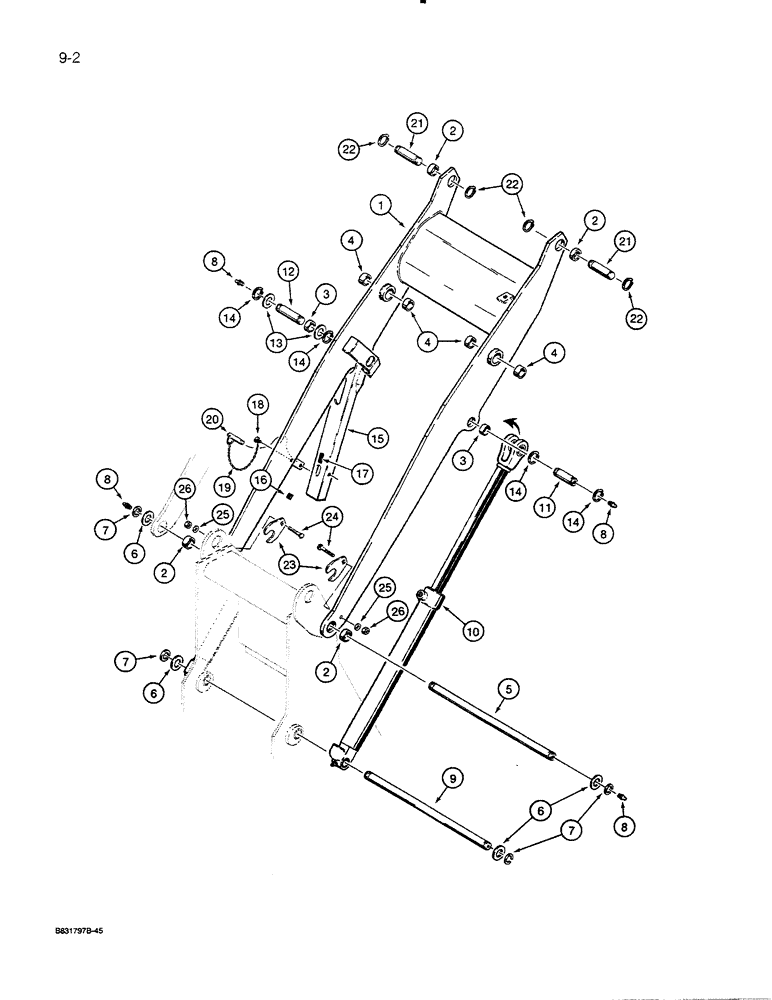

Запчасти Case 450C (9-02) - LOADER LIFT FRAME, MOUNTING PARTS AND LIFT CYLINDERS (09) - CHASSIS/ATTACHMENTS

1

R48018

ARM, LIFT

FRAME - loader lift, Includes; Ref. 2 - 4

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- lift frame at loader cowl and at bucket

4шт.

3

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- lift cylinder at lift frame

2шт.

4

D35071

BUSHING

- bucket tilt levers at lift frame

4шт.

5

R48068

PIVOT

ROD - lift frame to loader cowl

1шт.

6

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

- spacer, loader arm centering, one used per side on models with Ref. 23 spacer

4-8шт.

7

D34664

RING

RETAINING RING - rod

4шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

9

R48044

PIVOT

ROD - lift cylinders to loader cowl

1шт.

10

G103457

CYLINDER BLOCK

CYLINDER - lift, parts list Fig. 8-38

2шт.

11

D34658

PIN,44.45mm OD x 101.6mm L

- lift cylinder to lift frame, right-hand side only

1шт.

12

L78791

AXLE PIN

PIN - lift cylinder and support strut to lift frame, left-hand side only

1шт.

13

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, special, 1-3/4" bolt size, left-hand side only

2шт.

14

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

15

R49507

STRUT

- support

1шт.

16

D42106

GROMMET

- rubber, bumper

1шт.

17

D79692

PAD

- support strut

1шт.

18

168-74

DRIVE SCREW,Type U, Rnd Hd, #10 x 1/2"

- drive, round head, No. 10 x 1/2", plated

1шт.

19

R47786

CHAIN (CE)

CHAIN - support strut retaining

1шт.

20

L78801

AXLE PIN

PIN - self-locking, chain retaining

1шт.

21

D34655

PIN,50.8mm OD x 111.13mm L

- bucket to loader lift frame

2шт.

22

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

23

R53179

SPACER

- loader arm centering, replaces 2 - Ref. 6 washers used on some models in production

1шт.

24

111-544

CARRIAGE BOLT,Short NK, 1/2"-13 x 2 3/4", G5

- 1/2" - 13 NC x 2-3/4", plated

2шт.

25

R24718

WASHER

- flat, 1/2", hardened

2шт.

26

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.
