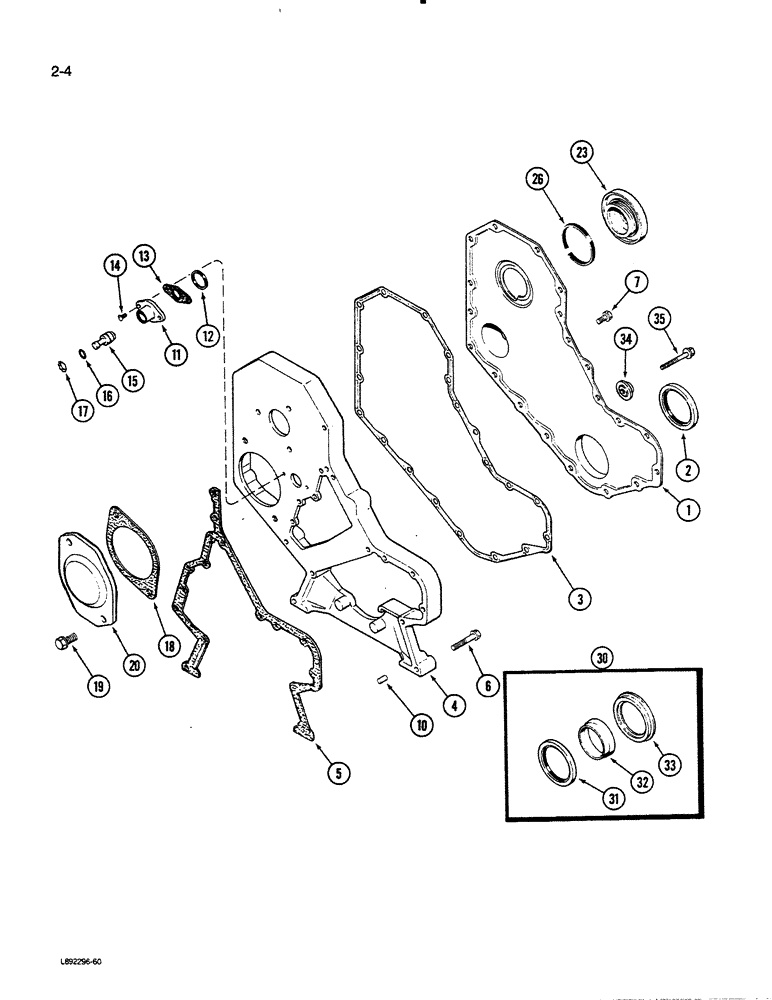

Запчасти Case 450C (2-04) - FRONT GEAR COVER, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order Ref. 30

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover

1шт.

4

J917759

HOUSING

- timing gear, replaces J910411

1шт.

5

J916131

GASKET

- gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 50 mm, replaces J900633

11шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm, Replaces J900629

16шт.

Ref. Item #7 845-8016- the proper bolt to use is J924962 (or J900629 bolt with Loctite) by TSG bb 3/24/98

1шт.

10

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

11

J905933

HOUSING

- timing pin

1шт.

REF: #11 Housing has an O-Ring groove in it. The O-Ring # is J915772. The old housing had a flat face and no O-Ring was required.

1шт.

Same gasket used on J905923 (old housing) and REF.#11 Hsg.

1шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING, rectangular

1шт.

13

J905595

GASKET

- pin housing, timing, used with J903923 housing

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

16

J913994

O-RING

- sealing

1шт.

17

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

18

J913192

GASKET

- cover plate

1шт.

19

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 25 mm Grade 10.9, replaces J901249

2шт.

20

J909918

PLATE

- cover, access

1шт.

23

J903463

PLUG,M63 x 5

- tachometer drive hole

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

30

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

34

J912772

RETAINER

- bolt

1шт.

35

J901446

FLANGE BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 60 mm

1шт.
