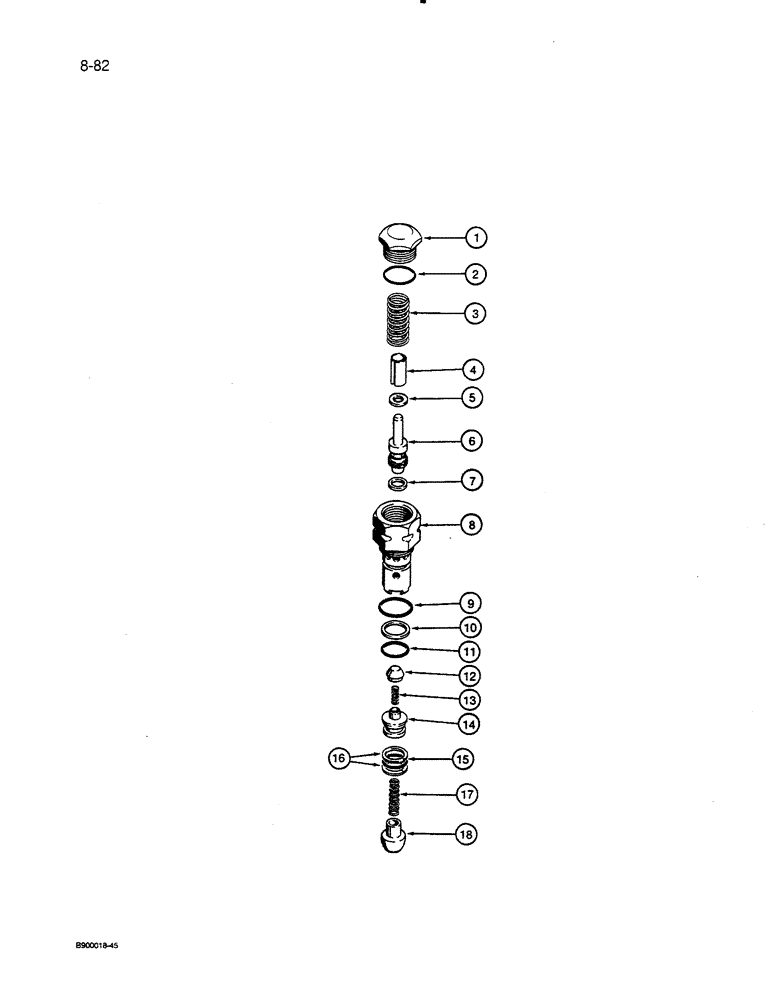

Запчасти Case 450C (8-82) - RELIEF VALVE, CIRCUIT RELIEF AND ANTICAVITATION VALVE ASSEMBLY (08) - HYDRAULICS

N8958

VALVE

ASSEMBLY - circuit relief and anticavitation, used in loader bucket tilt section only, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

CAP - circuit relief valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- cap

1шт.

3

N8964

SPRING

- outer, large

1шт.

4

N8965

SLEEVE VALVE

SLEEVE - outer spring

1шт.

5

A55893

SHIM,.0418" Thk

(1.016 mm) .0418" Thk

1шт.

5

A55894

SHIM,.0209" Thk

(0.508 mm) .0209" Thk

1шт.

5

D39712

SHIM

- .010" (0.254 mm) thick

1шт.

D66490

VALVE POPPET

PLUNGER ASSEMBLY - circuit relief valve, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER - circuit relief valve

1шт.

7

D39714

RING

SEAL - plunger, double lip

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- large, outer

1шт.

10

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

BACKUP RING - inner O-ring

1шт.

11

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk, Inner

1шт.

12

N8959

SCREW,POINTED

POPPET - anticavitation

1шт.

13

N8960

SPRING

- anticavitation poppet

1шт.

14

N8961

RETAINER

- poppet

1шт.

15

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- retainer

1шт.

16

H411371

BACK-UP RING

BACKUP RING - retainer O-ring

2шт.

17

N8963

SPRING

- circuit relief

1шт.

18

N8962

SCREW,POINTED

POPPET - circuit relief

1шт.
