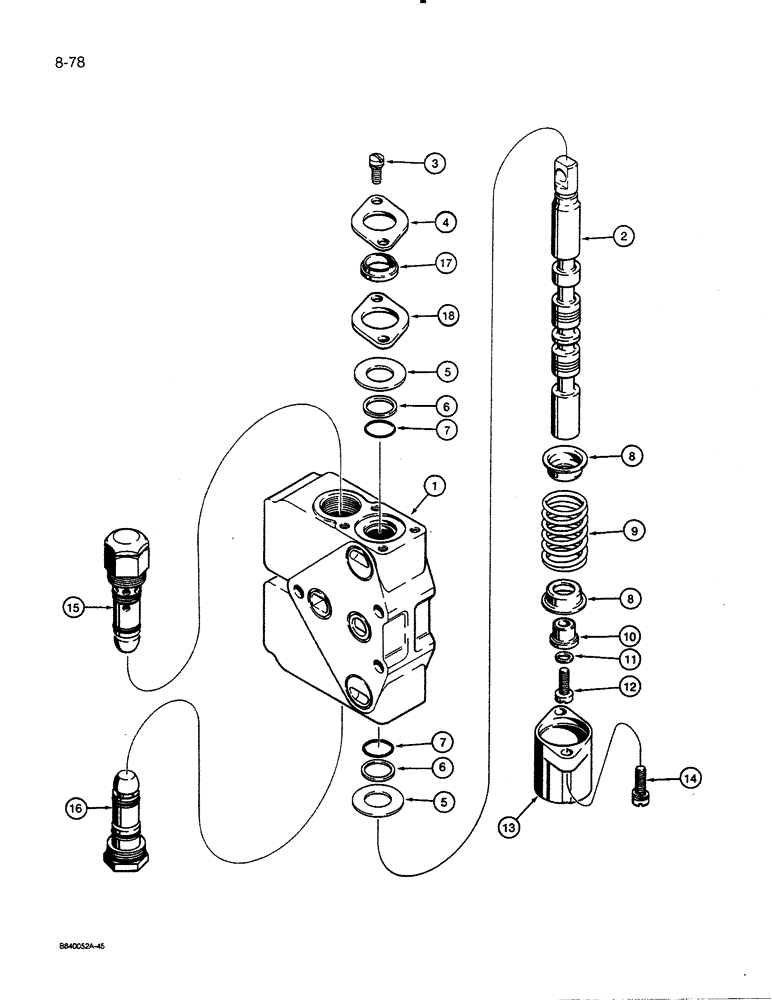

Запчасти Case 450C (8-78) - AUXILIARY SECTIONS (08) - HYDRAULICS

N8943

VALVE

SECTION ASSEMBLY - ripper or loader clam bucket, Includes: Ref. 1 - 18

1шт.

N8969

VALVE BLOCK

SECTION ASSEMBLY - dozer blade tilt and angle, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

193-557

SCREW,SEMS, Sltd Fil Hd, 1/4"-20 x 5/8", G5

- Fillister head with lock washer, 1/4" - 20 NC x 5/8", plated

2шт.

4

N8194

LARGE PLATE

PLATE - retainer, outer

1шт.

5

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - spool seals

2шт.

6

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

BACKUP RING - spool O-ring

2шт.

7

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

2шт.

REF 7: IF DEALER HAS LIP SEALS INSTEAD OF ORINGS, SEE SERVICE BLTN NCR SB 015 95. SPECIAL TOOL IS NEEDED TO INSTALL THE LIP SEAL. CAN RETROFIT THE LIP SEALS INTO AN EXISTING ORING SET UP, BUT ADDITIONAL PARTS ARE NEEDED. COMPLETE INFO ON THE ADDITIONAL PARTS AND THE SPECIAL TOOL CAN BE FOUND IN THE BLTN. BW - 6/12/97

1шт.

8

H267591

SPRING SEAT

SEAT - spring

2шт.

9

N8949

SPRING

CENTERING SPRING - spool

1шт.

10

H267609

REAR FENDER

COLLAR - spool

1шт.

11

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

169-160

SCREW,Sl Fil Hd, 5/16" - 18 x 3/4"

- Fillister head, 5/16" - 18 NC x 3/4", plated

1шт.

13

H267583

FITTING

CAP - spool, lower

1шт.

14

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

- Fillister head with lock washer, 1/4" - 20 NC x 7/8", plated

2шт.

15

N8950

VALVE

ASSEMBLY - circuit relief, spool eye end, ripper or loader clam sections only, parts list Fig. 8-80

1шт.

16

D87307

VALVE

ASSEMBLY - load check, two used on dozer tilt and angle sections, one used on ripper or loader clam section, parts list Fig. 8-84

1шт.

17

N7029

SCRAPER

WIPER - spool

1шт.

18

N7030

LARGE PLATE

PLATE - retainer, inner

1шт.
