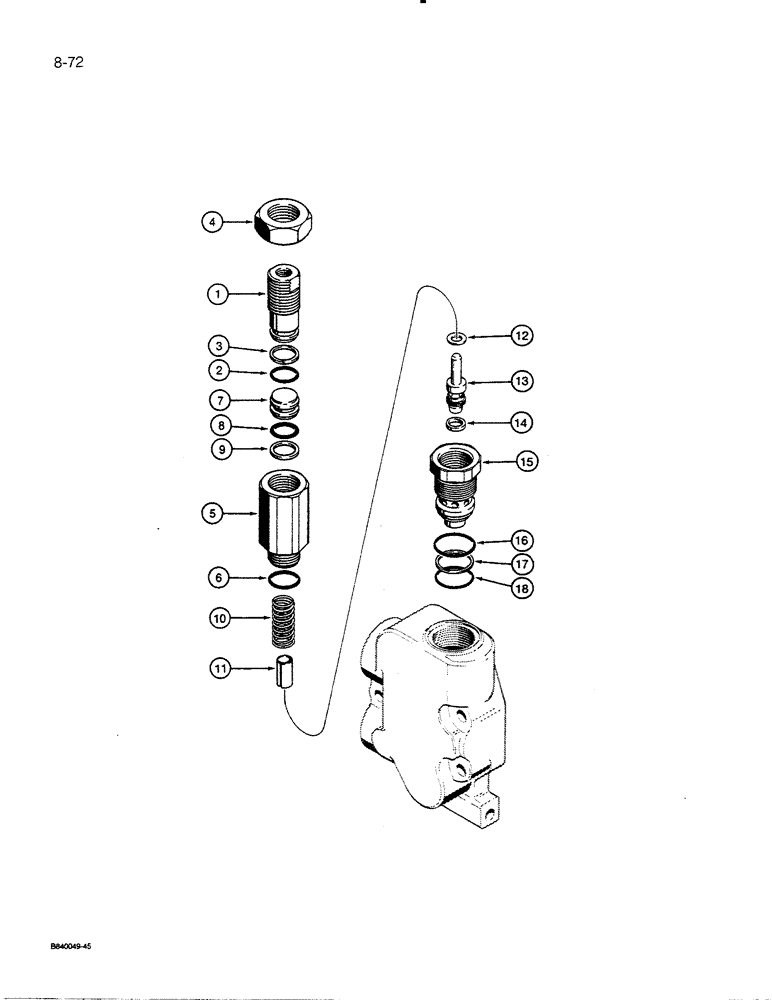

Запчасти Case 450C (8-72) - DUAL STAGE MAIN RELIEF VALVE, USED ON DOZER MODELS WITH A BACKHOE (08) - HYDRAULICS

R50181

VALVE, PRESSURE RELI

RELIEF VALVE ASSEMBLY - dual stage, used on dozer models with a backhoe, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

ADJUSTING SCREW - main relief valve

1шт.

2

N8973

O-RING

- adjusting screw

1шт.

3

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

BACKUP RING - adjusting screw

1шт.

REF# 3 D27434 IS WRONG IF DLR NEEDS THIS PART IT IS DANA# 09021016. 3/11/97 DB

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex, jam, adjusting screw

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - outer, dual stage relief

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- body

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - dual stage relief

1шт.

8

A64436

O-RING,0.549" ID x 0.755" OD

- piston

1шт.

9

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

BACKUP RING - piston O-ring

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - main relief valve

1шт.

11

N8190

SLEEVE VALVE

SLEEVE - spring

1шт.

12

A55893

SHIM,.0418" Thk

(1.016 mm) .0418" Thk

1шт.

12

A55894

SHIM,.0209" Thk

(0.508 mm) .0209" Thk

1шт.

12

D39712

SHIM

- .010" (0.254 mm) thick

1шт.

D66490

VALVE POPPET

POPPET ASSEMBLY - main relief valve, Includes: 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

POPPET - main relief valve

1шт.

14

D39714

RING

SEAL - poppet, double lip

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - inner, main relief valve

1шт.

16

343900R1

O-RING,1.051" ID x 0.07" Width

- body, large, outer

1шт.

17

N8197

O-RING,1.006" ID x 1.116" OD x 0.055"

BACKUP RING - body, inner O-ring

1шт.

18

D39718

O-RING,0.989" ID x 1.129" OD

- body, small, inner

1шт.
