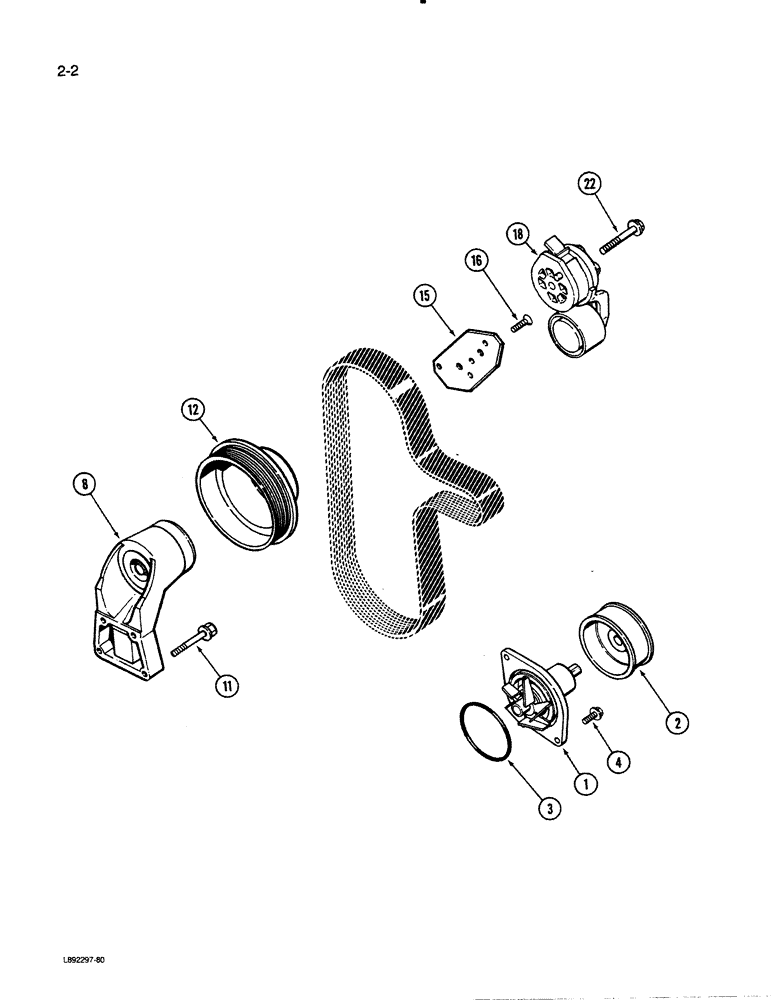

Запчасти Case 450C (2-02) - WATER PUMP SYSTEM, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
AR77703
PUMP
- water, remanufactured
1шт.
J286278R
REMAN-WATER PUMP
450C Long Track
1шт.
J286278C
CORE-WATER PUMP
Return Number
1шт.
AC77703
CORE-WATER PUMP
RETURN NUMBER - use this part number to return pump core for credit
1шт.
A77703
PUMP, WATER
PUMP KIT - water, Includes: Ref. 1 and 2
1шт.
A77703GV
WATER PUMP
Value, Water Pump Assy.
1шт.
J286278R
REMAN-WATER PUMP
450C Long Track, 455C Long Track, Replaces P/N's A77703 & AR77703
1шт.
J286278C
CORE-WATER PUMP
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
PUMP ASSEMBLY - water, order A77703
1шт.
2
NSS
NOT SOLD SEPARAT
PULLEY - water pump, order A77703
1шт.
3
238-5341
O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro
(Replaces 22290R1) -341, 70 Duro, 3.475" ID x .210" Thk
1шт.
4
J900227
BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9
2шт.
8
J907070
BRACKET
ASSEMBLY - fan, 50 mm bolt circle, Prior to Engine Serial No. 44144174
1шт.
8
J911922
SUPPORT ASSY.
BRACKET ASSEMBLY - fan, 60 mm bolt circle, Engine Serial No. 444144174 and after, shown
1шт.
11
845-8040
BOLT,Hvy Hex, M8 x 40mm, Cl 8.8
- hex heavy flange, 8 mm - 1.25 x 40 mm, 8.8, Replaces J900678
4шт.
12
J914459
PULLEY
- fan, 60 mm bolt circle, replaces J908448, Engine Serial No. 44144174 and after, shown
1шт.
12
J902709
PULLEY
- fan, 50 mm bolt circle, Prior to Engine Serial No. 44144174
1шт.
15
J904549
BRACKET
- belt tension
1шт.
16
J925186
SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9
- flat head slotted, 8 x 25 mm
2шт.
22
854-10070
BOLT,Hvy Hex, M10 x 70mm, Cl 10.9
- hex heavy flange, 10 - 1.5 x 70 mm, Grade 10.9, Use with J914086 only, Replaces J904446
1шт.
22
J905426
BOLT,Hex, M10 x 1.5 x 61.86mm
- hex flange, 10 mm - 1.50 x 62 mm, use with J912246 only
1шт.
ECN c931498 releases A77817 pulley
1шт.
replacement kit which can be used to replace the
1шт.
lower pulley portion on J918944 belt tensioner.
1шт.
see root comments on J918944.
1шт.
Выбрано товаров: 26
