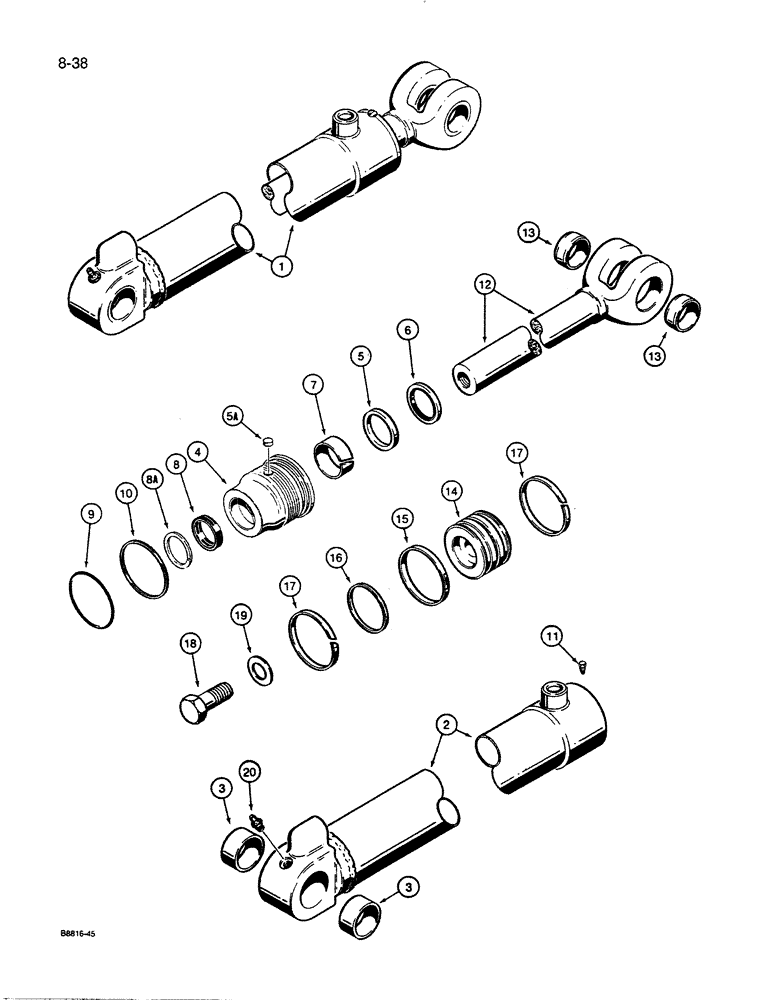

Запчасти Case 450C (8-38) - LOADER LIFT CYLINDER (08) - HYDRAULICS

1

G103457

CYLINDER BLOCK

CYLINDER ASSEMBLY - lift, 3-1/2" (89 mm) ID x 31" (787 mm) stroke, Includes: Ref. 1 - 20

2шт.

2

G103458

TUBE,38.63" L

ASSEMBLY - cylinder

1шт.

3

D30735

BUSHING,51.03mm ID x 60.33mm OD x 28.57mm L

- tube

2шт.

G104402

GLAND

ASSEMBLY - cylinder, with Ref. 5 retaining ring, Includes: Ref. 4 - 10

1шт.

1978017C1

JACK HEAD

GLAND ASSEMBLY - cylinder, without Ref. 5 retaining ring, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing, G104402 gland only

1шт.

5a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of Seal Kit, P/N G109453

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit, P/N G109453

1шт.

8

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-CUP SEAL - with O-ring, piston rod, wide

1шт.

Part of Seal Kit, P/N G109453

1шт.

8

G100778

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

8a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G109453

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G109453

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G109453

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated, if used

1шт.

12

G33604

ROD

ASSEMBLY - piston, 2" (51 mm) OD, Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

G100694

PISTON

- cylinder

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N G109453

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit, P/N G109453

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

Part of Seal Kit, P/N G109453

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

(super fine thread) Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G109453

GASKET KIT

KIT - seal, Includes: Ref. 6, 7, 8 (except G100778), 8A, 9, 10, 15, 16 and 17

1шт.
