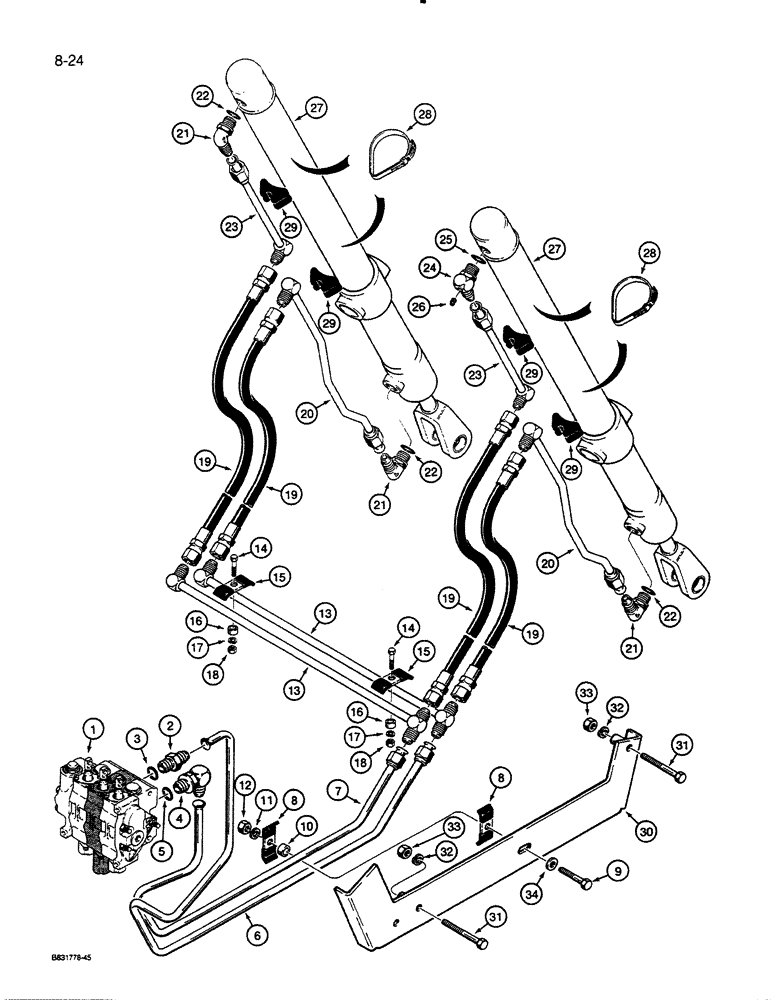

Запчасти Case 450C (8-24) - DOZER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see Figs. 8-66 or 8-68

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, A port, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, B port, Incl. Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

6

R46942

TUBE

- from A port

1шт.

7

R46944

TUBE

- from B port

1шт.

8

D31782

FIXING BRACKET

CLAMP - tubes

2шт.

9

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

10

R40879

SPACER

- clamps

1шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13

R40037

TUBE,0.625" OD x 26" L

- crossover

2шт.

14

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

15

D40236

CLAMP

- tubes

2шт.

16

D76209

SPACER

- clamp

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

19

L46723

HOSE

- 42" (1067 mm), Serial Range: long,-cylinders

4шт.

20

D36138

HOSE ASSY.

TUBE - to rod end of cylinder

2шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 22

3шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

23

D34747

TUBE

- to closed end of cylinder

2шт.

24

R19576

FITTING

ELBOW - 90 degree, adjustable, special, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

26

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

1шт.

27

G101229

CYLINDER

ASSEMBLY - dozer lift, parts list Fig. 8-44

2шт.

28

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - adjustable, tube to cylinder

4шт.

29

D38648

BLOCK

INSULATOR - rubber, tubes

4шт.

30

R48281

GUARD

- tubes, right-hand side

1шт.

31

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

33

129-105

NUT,Hex, 1/2" - 13, Gr 5

1-2шт.

34

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.
