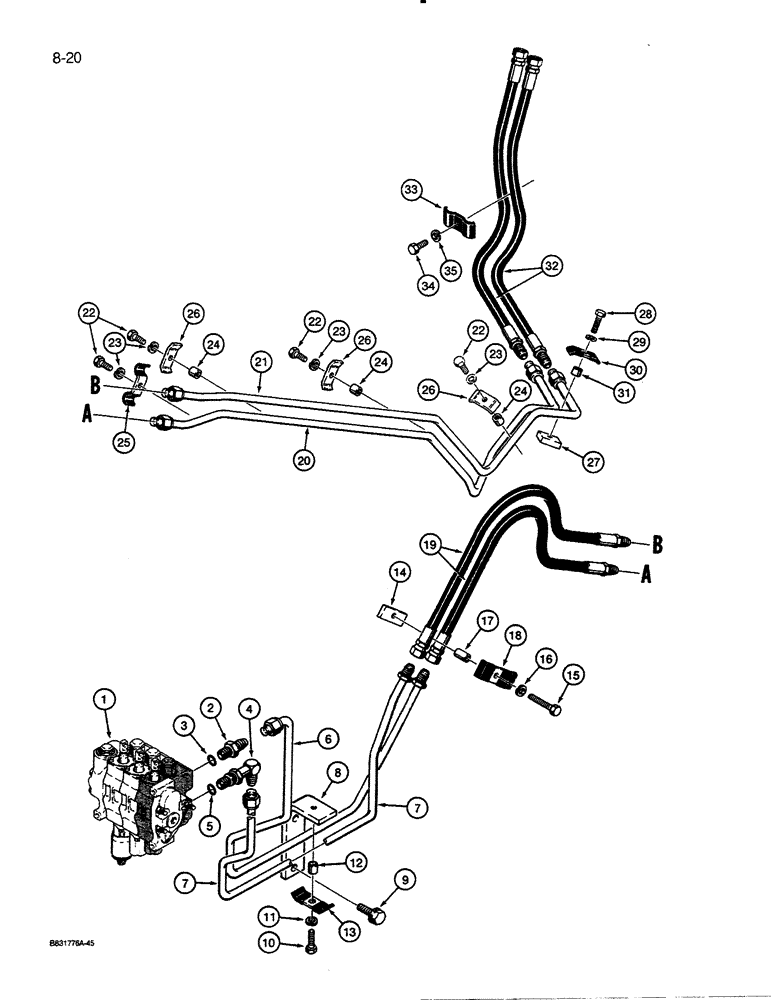

Запчасти Case 450C (8-20) - LOADER CLAM HYDRAULIC CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CONTROL VALVE - for correct assembly and components see Figs. 8-66 or 8-68
1шт.
2
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER - straight, A port, Includes: Ref. 3
1шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- adapter
1шт.
4
D25136
FITTING
ELBOW - 90 degree, long, B port, Includes: Ref. 5
1шт.
5
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- elbow
1шт.
6
R48176
PIPE,0.625" OD
TUBE - from control valve, A port
1шт.
7
R48174
PIPE,0.625" OD
TUBE - from control valve, B port
1шт.
8
R48187
SUPPORT
BRACKET - tube support
1шт.
9
121-430
FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd
BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8, Teflon coated
2шт.
10
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
11
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
12
D76209
SPACER
- clamp
1шт.
13
D40236
CLAMP
- tubes
1шт.
14
D76302
BLOCK
- clamp mounting, on loader cowl
1шт.
15
113-213
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
1шт.
16
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
17
R46461
SPACER
- clamp
1шт.
18
R36022
CLAMP
- tubes, on loader cowl
1шт.
19
D27073
HOSE
- 33-1/2" (851 mm) long
2шт.
20
R48178
PIPE,0.625" OD
TUBE - on loader lift frame, lower, A port
1шт.
21
R48172
PIPE,0.625" OD
TUBE - on loader lift frame, upper, B port
1шт.
23
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
24
D42505
BLOCK
BUSHING - tapped, welds to loader lift frame
3шт.
25
R34176
PIPE
CLAMP - tubes
1шт.
26
D42504
CLAMP
- tubes
3шт.
27
D51930
BLOCK
- tapped, welds to loader lift frame cross bar
1шт.
28
113-2225
BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5
1шт.
29
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
30
D40236
CLAMP
- tubes
1шт.
31
D76209
SPACER
- clamp
1шт.
32
L53351
HOSE
- to back of bucket, 45" (1143 mm) long
2шт.
33
R15257
CLAMP
- hoses to back of bucket
1шт.
35
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
Выбрано товаров: 35
