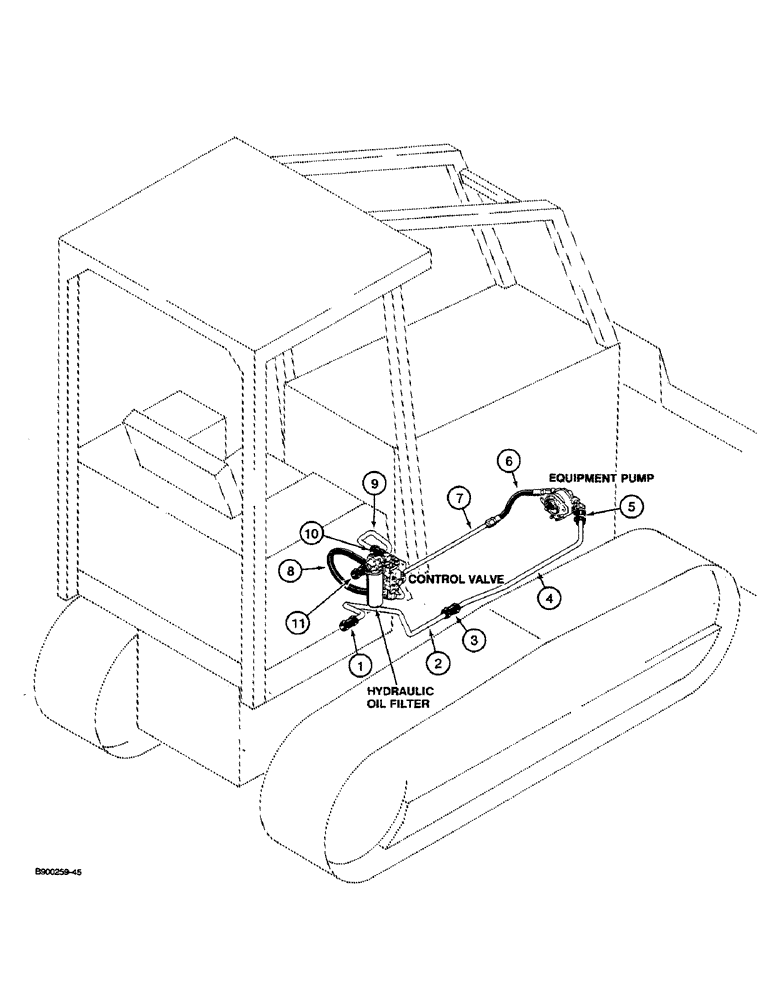

Запчасти Case 450C (1-10) - PICTORIAL INDEX, EQUIPMENT HYDRAULIC CIRCUIT, SUPPLY AND RETURN LINES (00) - PICTORIAL INDEX

1

Hose at hydraulic reservoir, Page 8-7

1шт.

2

Tube from hydraulic reservoir, Page 8-7

1шт.

3

Tube to tube connecting hose, Page 8-7

1шт.

4

Tube to equipment pump, Page 8-7

1шт.

5

Hose at equipment pump, Page 8-7

1шт.

6

Hose from equipment pump, Page 8-7

1шт.

7

Intermediate tube from equipment pump to control valve, Page 8-9

1шт.

8

Hose to control valve, Page 8-9

1шт.

9

Tube from control valve to hydraulic oil filter, Page 8-11

1шт.

10

Hose from control valve to hydraulic oil filter, Page 8-11

1шт.

11

Hose from hydraulic oil filter to reservoir, Page 8-11

1шт.
