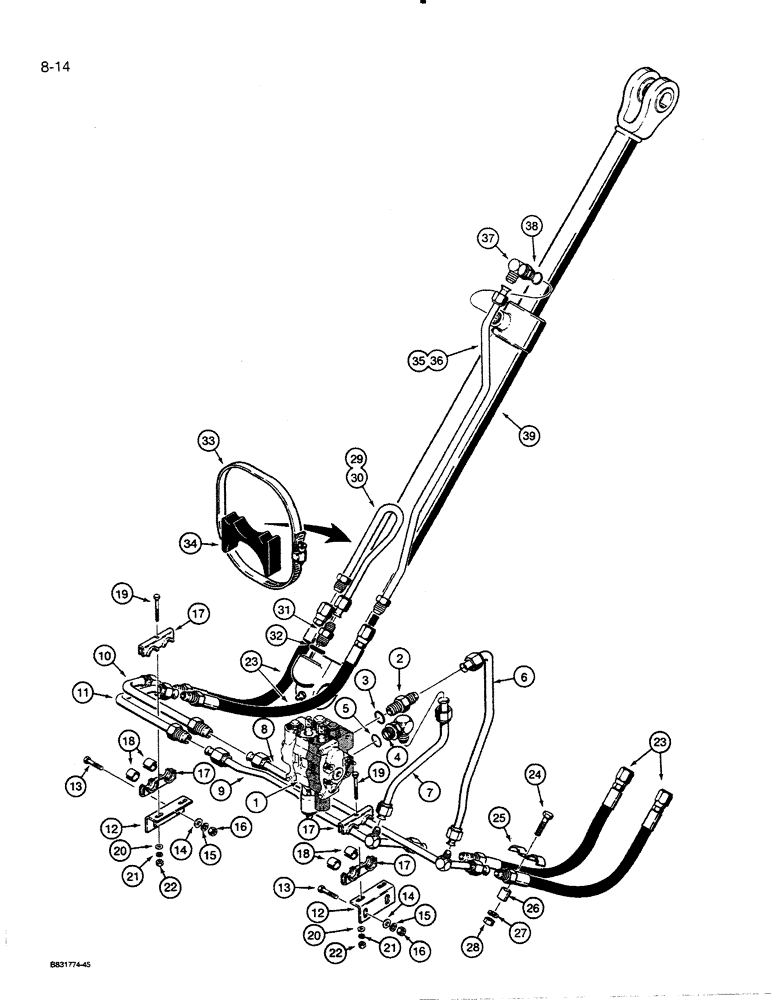

Запчасти Case 450C (8-14) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see Figs. 8-64 - 8-66

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, A port, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, B port, Incl. Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

6

R48159

TUBE,0.625" OD

- from control valve, A port

1шт.

7

R48157

TUBE,0.625" OD

- from control valve, B port

1шт.

8

R48169

TUBE,0.625" OD

- crossover, A port, front

1шт.

9

R48165

TUBE,0.625" OD

- crossover, B port, rear

1шт.

10

R48155

TUBE,0.625" OD

- left-hand crossover, A port, front

1шт.

11

R48153

TUBE,0.625" OD

- left-hand crossover, B port, rear

1шт.

12

R47829

BRACKET

- tube clamps

2шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

17

R41740

CLAMP

- tubes, includes both halves

2шт.

18

R41747

BUSHING

- tubes

4шт.

19

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

20

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

2шт.

23

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

- 26" (660 mm), Serial Range: long,-cylinders

4шт.

24

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

25

S79656

CLAMP

- lift hoses

2шт.

26

T53868

BUSHING

SPACER - clamp

2шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

29

R48161

TUBE,0.625" OD

- to closed end of lift cylinder, right-hand

1шт.

30

R48163

TUBE,0.625" OD

- to closed end of lift cylinder, left-hand

1шт.

31

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, Includes: Ref. 32

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

33

214-182

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

CLAMP - tubes to cylinder, adjustable

2шт.

34

R48181

INSULATOR

- vibration, tubes

2шт.

35

R48137

TUBE,0.625" OD

- to rod end of lift cylinder, right-hand

1шт.

36

R48135

TUBE,0.625" OD

- to rod end of lift cylinder, left-hand

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 38

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

39

G103457

CYLINDER BLOCK

CYLINDER ASSEMBLY - loader lift, parts list Fig. 8-38

2шт.
