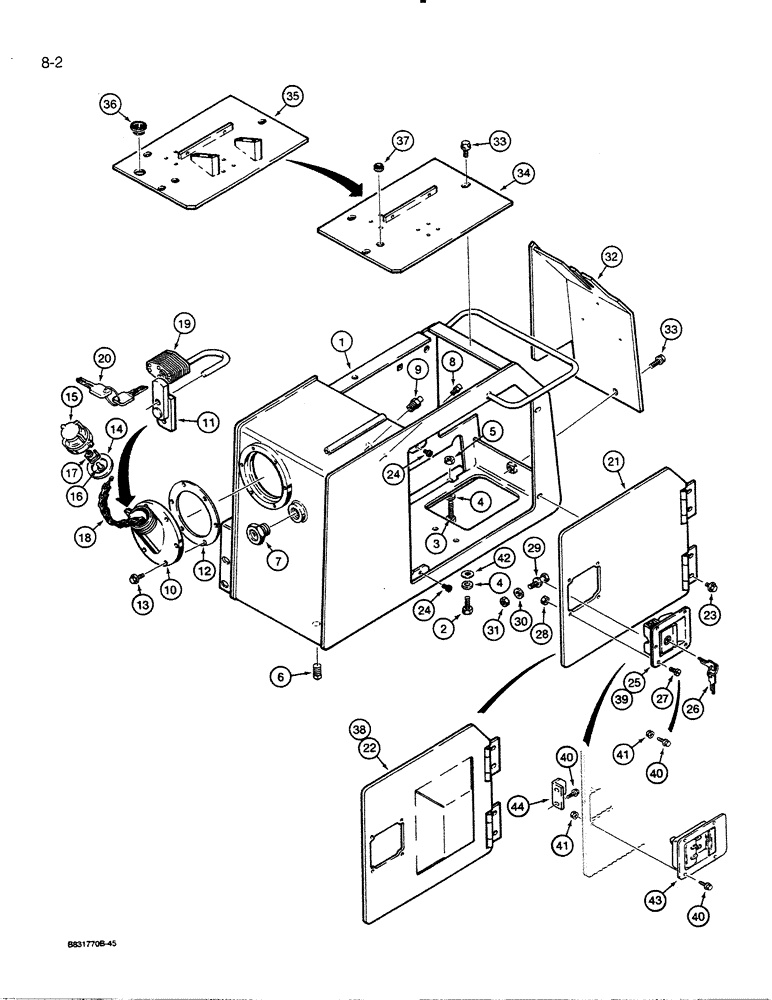

Запчасти Case 450C (8-02) - HYDRAULIC RESERVOIR FRAME AND COVERS (08) - HYDRAULICS

1

R57067

RESERVOIR

FRAME - hydraulic reservoir and equipment control valve, includes decals and operators manual and box, see Fig. 9-66 for manual box and mounting

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

3

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

4

R24718

WASHER

- flat, 1/2", hardened

5шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT, plated, drain

1шт.

7

L106452

GAUGE

SIGHT GAUGE - hydraulic reservoir

1шт.

8

R15536

VALVE

- outlet, air

1шт.

9

R15538

VALVE

- inlet, air

1шт.

10

R51319

COVER

- rear, with filler tube, Includes: Ref. 15 filler cap

1шт.

11

R46704

BRACKET

TAB - locking, filler cap

1шт.

12

D50547

GASKET,1.52mm Thk

- rear cover

1шт.

13

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated

6шт.

14

R46984

GASKET

- filler cap

1шт.

15

R46929

CAP

- filler

1шт.

16

168-78

DRIVE SCREW,Type U, Rnd Hd, #12 x 3/4"

- drive, round head, No. 12 x 3/4", plated

2шт.

17

R48634

FASTENER

HOOK - chain

2шт.

18

R47786

CHAIN (CE)

CHAIN - filler cap

1шт.

19

D93753

PADLOCK

- filler cap, Includes: Ref. 20

1шт.

20

R29555

KEY

- for Master padlock only

2шт.

20

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

21

R50366

COVER

- right-hand side, hydraulic reservoir frame, used on models without a backhoe, no longer available, order R55497 cover, Ref. 38

1шт.

22

R50566

COVER

- right-hand side, hydraulic reservoir frame, used on models with a backhoe, no longer available, order R55497 cover, Ref. 38

1шт.

23

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated

2шт.

24

A161780

BUMPER

- rubber, side cover

2шт.

25

R49213

LATCH ASSY.

LATCH - side cover, used with Ref. 27 and 28 mounting hardware, no longer available, order Ref. 39 - 41

2шт.

26

R49215

KEY

- latch

1шт.

27

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head slotted, No. 10 - 24 NC x 1/2", plated, used with Ref. 25 latch

4шт.

28

86625057

NUT,#10-24, GB

NUT, LOCK, , Used with Ref. 25 latch #10-24, GB

4шт.

29

R49214

BOLT

STRIKER - latch, if used

1шт.

30

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, hardened, special, if used

1шт.

31

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated, if used

1шт.

32

R50821

COVER

- front, hydraulic reservoir frame, includes decals and operators manual box, see Fig. 9-6 for operators manual box

1шт.

33

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

6шт.

34

R50773

COVER

- top, includes decals, used on models without a winch

1шт.

35

R50772

COVER

- top, includes decals, used on models with a winch

1шт.

36

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

- winch control hoses, if used

1шт.

37

D42106

GROMMET

- used on models with ROPS canopy and lamps, if used

1шт.

38

R55497

COVER

- right-hand side, hydraulic reservoir frame, models with or without a backhoe

1шт.

39

R54912

LATCH ASSY.

LATCH - side cover, used with Ref. 29 - 31, 40 and 41, uses 1/4 inch mounting hardware, if used

1шт.

40

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

4-6шт.

41

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

4шт.

42

D44330

SHIM,.031" Thk

(21/32" ID x 1-1/4" OD) .031" Thk

1шт.

43

R56221

LATCH

- side cover, used with Ref. 44 striker, if used

1шт.

44

R56397

LARGE PLATE

STRIKER - latch, used with Ref. 43 latch, if used

1шт.
