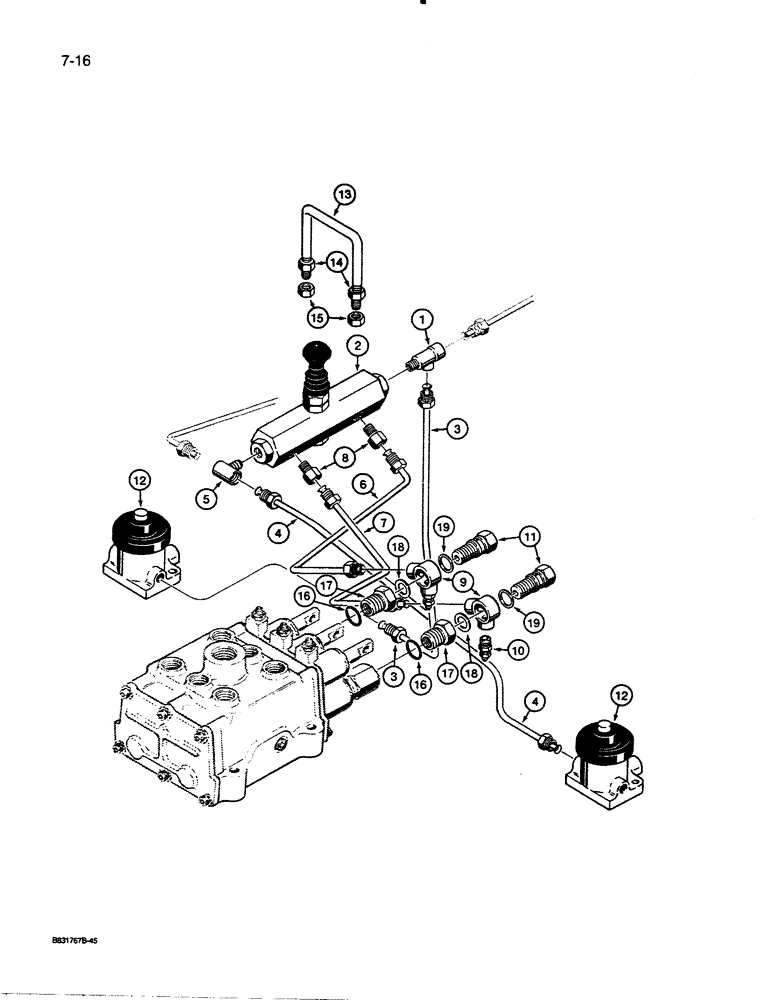

Запчасти Case 450C (7-16) - OPTIONAL BRAKE SYSTEM, USED THROUGH P.I.N. 3080911 (07) - BRAKES

1

222-1076

TEE,7/16"-24 Inv Fl x 1/8" NPT Br

- front of optional brake system valve

1шт.

2

R51376

VALVE

ASSEMBLY - optional brake system, parts list Fig. 7-18

1шт.

3

R47214

TUBE,0.25" OD

- valve to left-hand brake cylinder

1шт.

4

R52476

TUBE,6.35 mm OD x 288, 307 mm L

- valve to right-hand brake cylinder

1шт.

5

222-1071

TEE,7/16"-24 Inv Fl x 1/8" NPT Br

- rear of optional brake system valve

1шт.

6

R47210

TUBE,0.187" OD

- optional brake system valve to left-hand tee at transmission control valve

1шт.

7

R47208

TUBE,0.187" OD

- optional brake system valve to right-hand tee at transmission control valve

1шт.

8

222-1011

HYD CONNECTOR,3/8"-24 Inv Fl x 1/8" NPT

ADAPTER - male, at optional brake system valve

2шт.

9

D49251

FITTING

ADAPTER - special, Y-fitting, at transmission control valve

2шт.

10

D46258

PLUG

BREATHER - Y-fitting

2шт.

11

A12864

BOLT

- special, Y-fitting

2шт.

12

G109412

MASTER CYLINDER

CYLINDER ASSEMBLY - brake, at transmission, parts list Figs. 7-8 or 7-10

2шт.

D49115

GUARD

ASSEMBLY - valve lever, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

GUARD - valve lever

1шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

2шт.

17

72125

ADAPTER

- straight

2шт.

18

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner, Y-fitting

2шт.

19

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, Y-fitting

2шт.
