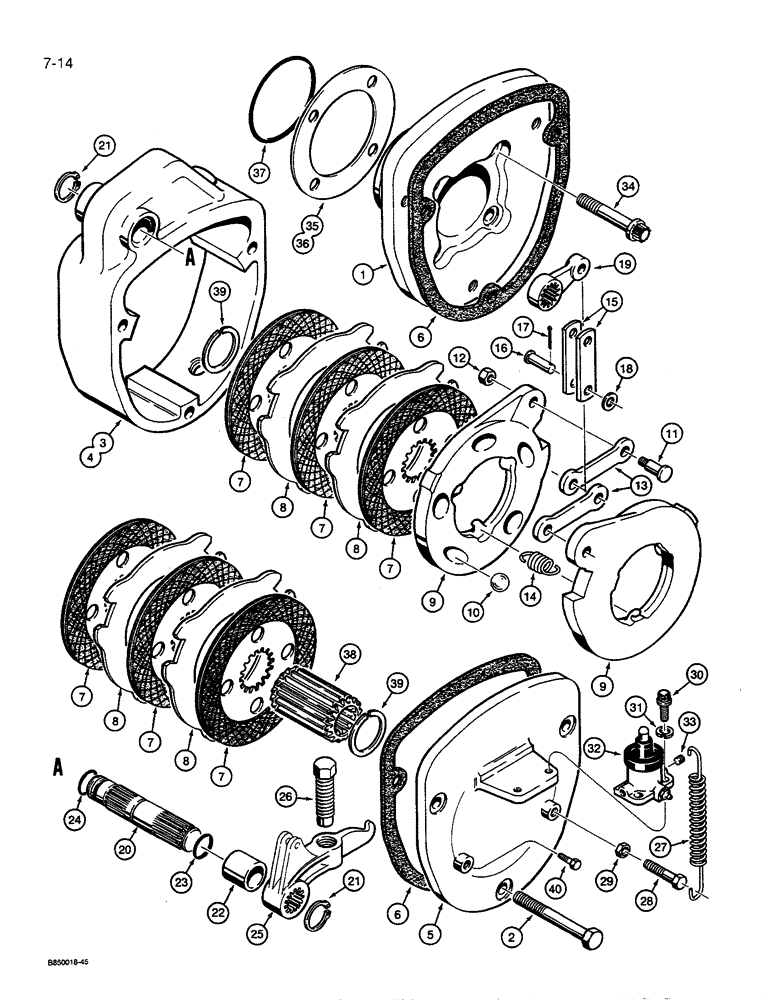

Запчасти Case 450C (7-14) - TRANSMISSION BRAKE ASSEMBLY, WET, IF USED (07) - BRAKES

1

G103640

PLATE ASSY.

SUPPORT - brake mounting

2шт.

2

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

6шт.

3

G103648

HOUSING

- brake, RH

1шт.

4

G103121

HOUSING

- brake, LH

1шт.

5

G103094

COVER ASSY

COVER - brake

2шт.

6

G105443

GASKET

- brake housing

4шт.

7

G103117

PLATE ASSY.

FRICTION DISC - brake

12шт.

8

G103118

DISC

- steel, brake

8шт.

9

A50148

DISC

PLATE - mounting

4шт.

10

211-221

BALL,7/8" Dia

grade 25, chrome alloy steel 7/8" Dia

10шт.

11

A30898

STEP BOLT

SHOULDER BOLT - special

4шт.

12

86637933

JAM NUT,5/16" - 24, Gr 5

4шт.

13

357113R2

LINK

- brake actuating

4шт.

14

A155624

SPRING

- brake actuator

6шт.

15

R15369

LINK

- brake pull

4шт.

16

G105353

PIN,11.07mm OD x 29.97mm L

- brake links

4шт.

17

132-380

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), , Stainless steel 3/32" x 3/4"

4шт.

18

195-529

WASHER,7/16", SAE

- flat, 7/16", plated

4шт.

19

R15372

LEVER

- brake

2шт.

20

G107436

SHAFT

- brake actuating

2шт.

21

B18208

SNAP RING,#100, Ext

brake actuating shaft #100, Ext

4шт.

22

G103093

SPACER

- shaft

2шт.

23

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- brake actuating shaft, center

2шт.

24

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- brake actuating shaft, inner

2шт.

25

G109374

LEVER

- actuating

2шт.

26

A50395

ADJUSTMENT SCREW,Locking, 3/4" - 16 x 2.75"

SCREW - self-locking, 3/4" - 16 NF x 2-3/4", brake adjusting

2шт.

27

A50589

SPRING

- brake actuating lever

2шт.

28

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

30

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

SCREW - Ferry head, 1/4" - 20 NC x 3/4", grade 8

4шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

32

G109412

MASTER CYLINDER

CYLINDER ASSEMBLY - brake, parts list Fig. 7-8

2шт.

33

222-1062

PLUG,7/16"-24, Inv Fl

hex 7/16"-24, Inv Fl

2шт.

34

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - Ferry head, 1/2" - 13 NC x 3", brake mounting support to front housing cover

8шт.

35

G103641

SHIM,.003" Thk

Brake mounting support .003" Thk

1шт.

36

G103643

SHIM,.010" Thk

Brake mounting support .010" Thk

1шт.

37

G104038

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

- brake mounting support

2шт.

38

G104123

HUB CAP

HUB - brake disc retaining

2шт.

39

A50046

RING

SNAP RING - disc retaining

4шт.

40

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.
