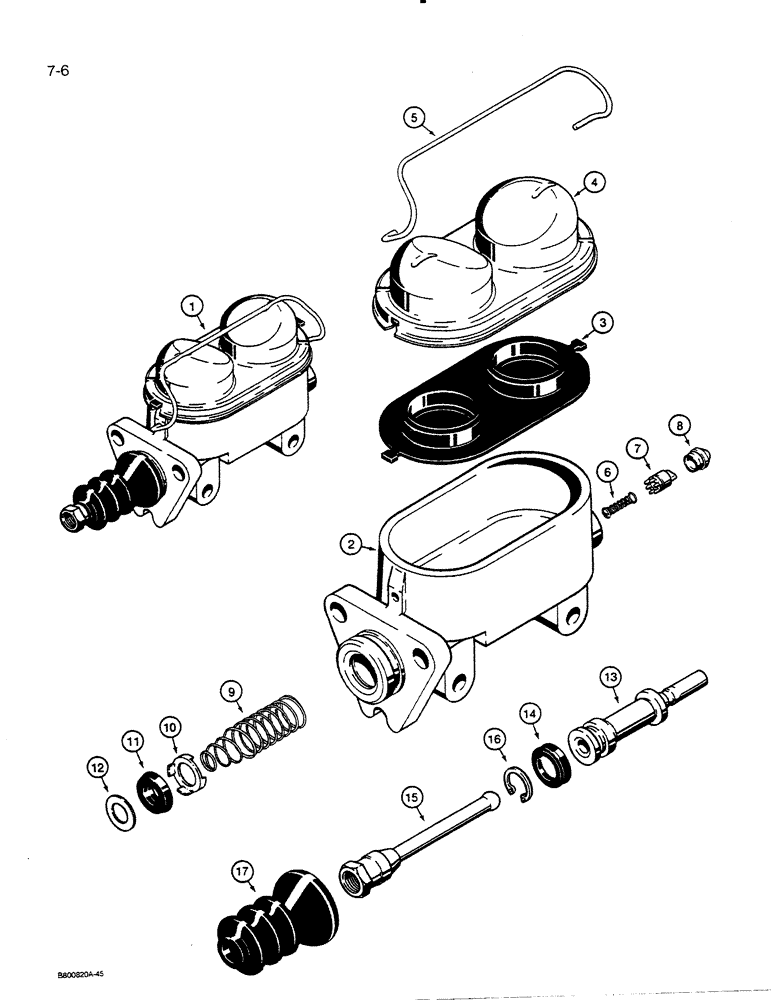

Запчасти Case 450C (7-06) - D131596 BRAKE MASTER CYLINDER ASSEMBLY (07) - BRAKES

1

D131596

MASTER CYLINDER

ASSEMBLY - brake, Includes: Ref. 1 - 17

2шт.

2

NSS

NOT SOLD SEPARAT

RESERVOIR - master cylinder

1шт.

3

N6832

GASKET

- diaphragm, cover

1шт.

4

N6833

COVER

- filler cap

1шт.

5

N6831

BAIL

RETAINER - cover

1шт.

6

N6824

SPRING

- residual valve, used in production on some models, no longer used, not required, remove from assembly

1шт.

7

N6827

VALVE

- residual, used in production on some models, no longer used, not required, remove from assembly

1шт.

8

N6825

SEAT

- tube

1шт.

N6823

PISTON

ASSEMBLY - master cylinder, Includes: Ref. 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

11

N6830

CUP

- seal, inner

1шт.

12

N6828

GUARD

WASHER - flat, cup support

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

14

N6829

SEAL

CUP - seal, double lip, outer

1шт.

15

L32137

ROD

- push

1шт.

16

A42256

SNAP RING,0.901", Int, #90

piston 0.901", Int, #90

1шт.

17

N8819

BOOT

- push rod

1шт.
