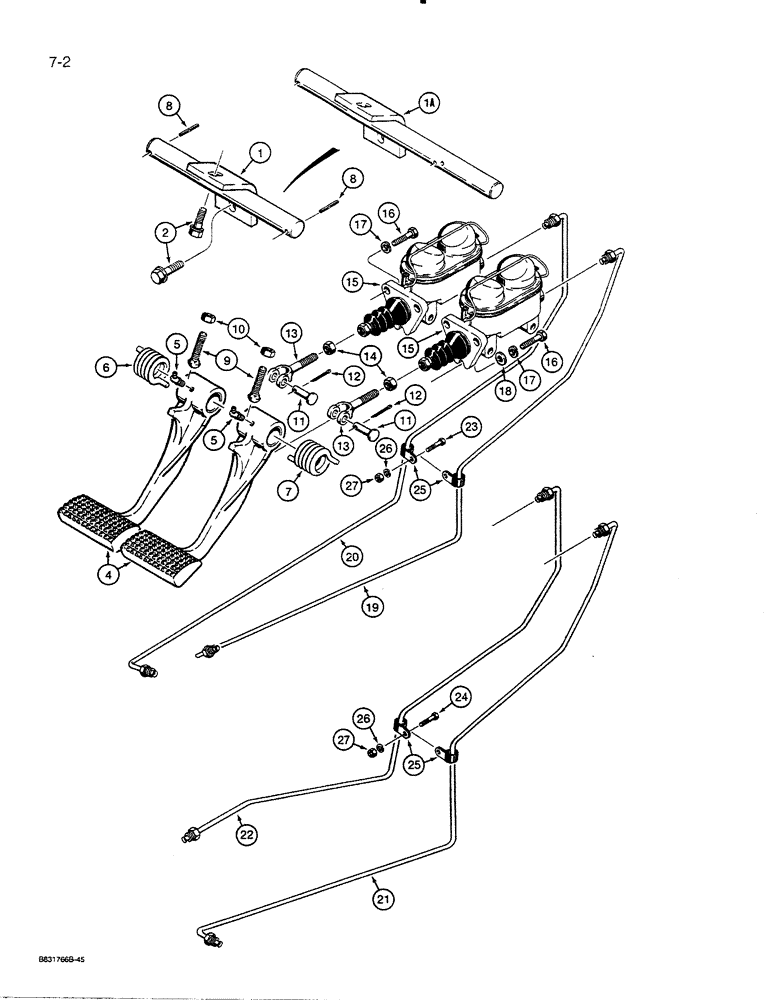

Запчасти Case 450C (7-02) - BRAKE PEDALS, MASTER CYLINDERS, AND LINES TO TRANSMISSION CONTROL VALVE, USED THRU P.I.N. 3080911 (07) - BRAKES

1

R46818

SUPPORT

SHAFT - brake pedals, with mounting bracket, 12-1/8" (308 mm) long, no longer available, replace with R54302 shaft, Ref. 1A

1шт.

1a

R54302

SUPPORT

SHAFT - brake pedals, with mounting bracket, 17-1/8" (435 mm) long

1шт.

2

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8, Teflon coated, Replaces regular bolt and flat washer used in production on some models

2шт.

4

R46701

PEDAL

- brake

2шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

2шт.

6

R49035

SPRING

- pedal, left-hand

1шт.

7

R49036

SPRING

- pedal, right-hand

1шт.

8

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2шт.

9

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

CARRIAGE BOLT - 1/2" - 13 NC x 2-1/2", pedal stop

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

141-64

CLEVIS PIN,7/16" x 1.190"

plated 7/16" x 1.190"

2шт.

12

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

13

R47412

FORK

CLEVIS - brake pedal to master cylinder

2шт.

14

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

2шт.

15

D131596

MASTER CYLINDER

ASSEMBLY - brake, parts list Fig. 7-6

2шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

18

D41740

WASHER

- flat, 3/8", hardened, lower slot of master cylinder only

2шт.

19

R47098

TUBE,4.76 mm OD

- to transmission control valve, right-hand, used on models without optional brake system

1шт.

20

R47100

TUBE,4.76 mm OD

- to transmission control valve, left-hand, used on models without optional brake system

1шт.

21

R47297

TUBE,0.25" OD

- to rear of optional brake system valve, from right-hand master cylinder, used on models with optional brake system

1шт.

For completion of the optional brake system see Fig. 7-16.

1шт.

22

R47295

TUBE,0.25" OD

- to front of optional brake system valve, from left-hand master cylinder, used on models with optional brake system

1шт.

For completion of the optional brake system see Fig. 7-16.

1шт.

23

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used on models without optional brake system Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

24

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Used on models with optional brake system Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

For completion of the optional brake system see Fig. 7-16.

1шт.

25

S79579

CLAMP

- brake, Serial Range: tubes-firewall

2шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
