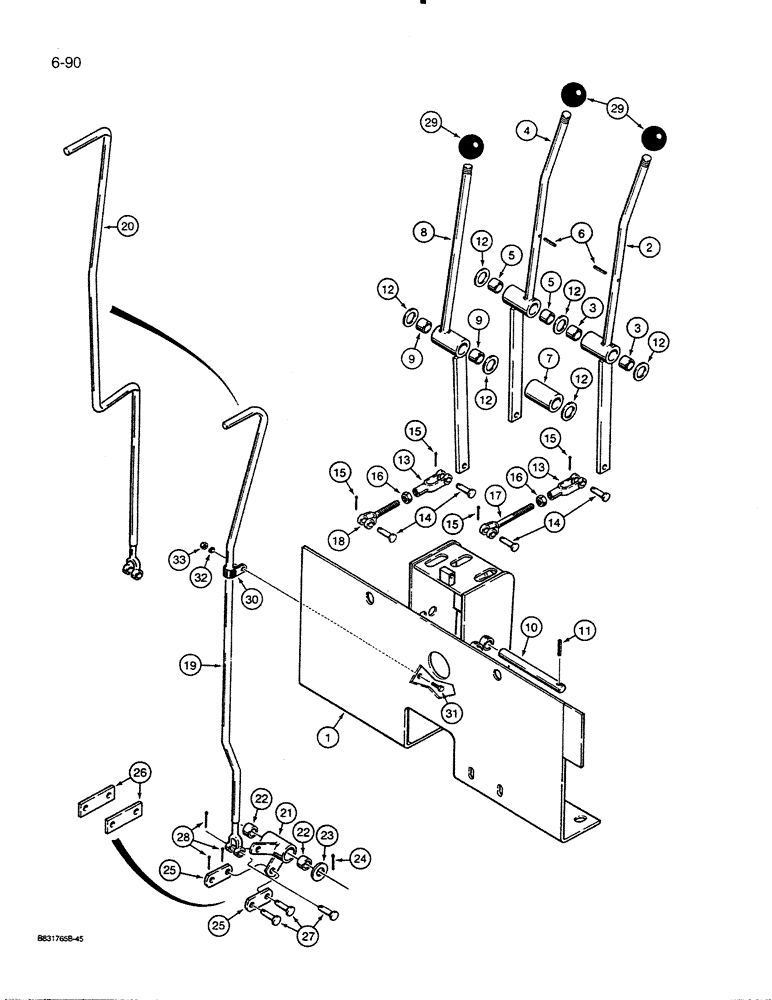

Запчасти Case 450C (6-90) - TRANSMISSION CONTROL LEVERS AND MOUNTING (06) - POWER TRAIN

1

R50764

CARRIER

TOWER - transmission control, with heel plate, includes decals

1шт.

2

R40021

LEVER ASSY.

CONTROL LEVER - track speed, right-hand, Includes: Ref. 3

1шт.

3

R31144

BUSHING

- control lever

2шт.

4

R40019

LEVER ASSY.

CONTROL LEVER - track speed, left-hand, Includes: Ref. 5

1шт.

5

R31144

BUSHING

- control lever

2шт.

6

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

7

F44507

TUBE,0.76" ID x 1" OD x 2.07" L

SPACER - forward-reverse track control lever

1шт.

8

R40016

LEVER ASSY.

CONTROL LEVER - forward and reverse, Includes: Ref. 9

1шт.

9

R31144

BUSHING

- control lever

2шт.

10

D34898

SHAFT

- control levers

2шт.

11

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

12

A7915

SHIM,.0359" Thk

Control levers .0359" Thk

1шт.

13

H44198

YOKE

CLEVIS - adjustable, 5/16" - 24 NF, metal, plated, replaces fiberglass clevis used in production on some models

3шт.

14

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

6шт.

15

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.

16

129-122

NUT,5/16"-24, G5

3шт.

17

G10928

YOKE

ROD - clevis, long, track speed control levers

2шт.

18

D34885

YOKE

ROD - clevis, short, forward-reverse control lever

1шт.

19

R52763

LEVER

CONTROL LEVER - hi-lo range, no longer available, replace with R54422 lever, Ref. 20

1шт.

20

R54422

LEVER

CONTROL LEVER - hi-lo range

1шт.

21

R53704

LEVER ASSY.

BELLCRANK - hi-lo range, Includes: Ref. 22

1шт.

22

R31144

BUSHING

- bellcrank

2шт.

23

195-541

WASHER,5/8", SAE

- flat, 5/8", plated, lever retaining

1шт.

24

132-318

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

25

R22755

LINK

- bellcrank to transmission range selector shaft, 2-1/8" (53 mm) long with rounded corners, used on models with dry brakes only

2шт.

26

R53701

LINK

- bellcrank to transmission range selector shaft, 2-3/4" (71 mm) long with square corners, used on models with wet brakes only

2шт.

27

141-54

CLEVIS PIN,3/8" x 1 1/16"

3шт.

28

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

3шт.

29

D49996

KNOB

- control lever

3шт.

30

D128685

CLAMP

- transmission range control lever

1шт.

31

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

1шт.
