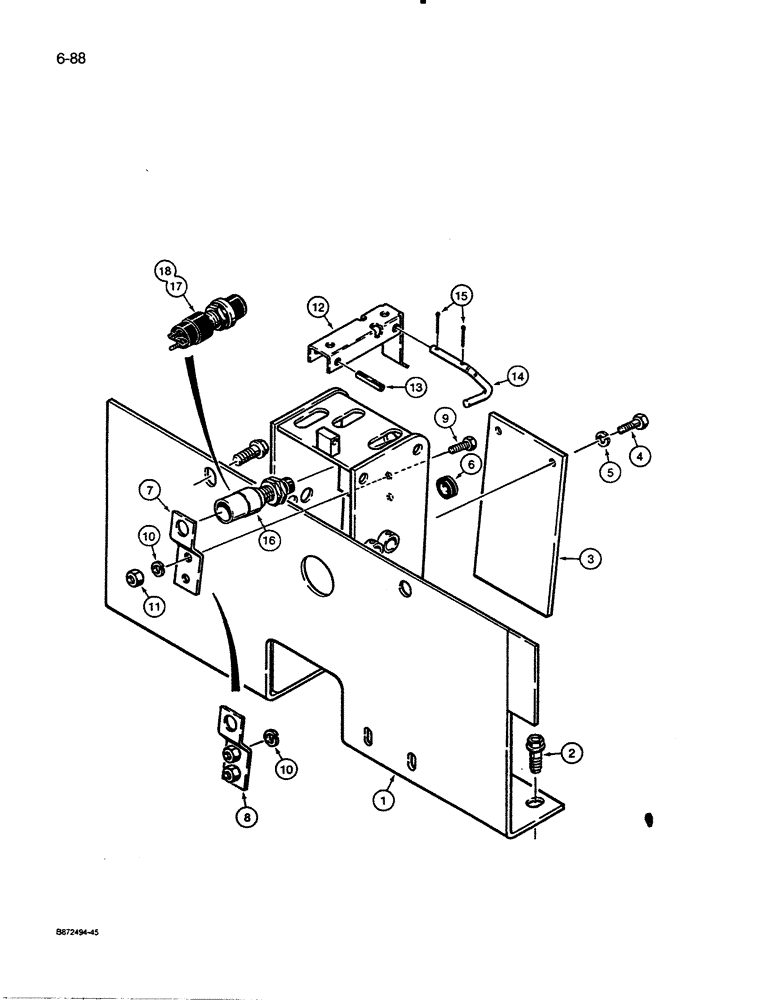

Запчасти Case 450C (6-88) - TRANSMISSION CONTROL TOWER, STARTER SWITCH, AND LOCKUP (06) - POWER TRAIN

1

R50764

CARRIER

TOWER - transmission control, with heel plate, includes decals

1шт.

2

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

3

R47459

COVER

- control tower, lower front

1шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- control tower, wiring harness from starter switch

1шт.

7

R31304

BRACKET

- starter switch mounting, without weldnuts, if used

1шт.

8

R51410

BRACKET

- starter switch mounting, with weldnuts, if used

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

2шт.

12

R48625

COVER

- starter switch

1шт.

13

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

ROLL PIN - 1/4" x 3/8"

1шт.

14

R47853

LOCKING DEVICE

LOCK - starter switch cover

1шт.

15

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

16

R40432

SWITCH

- starter, push button, with plug-type connection, if used

1шт.

For the correct starter switch wire and main harness connection, see Fig. 4-26.

1шт.

17

S241920

SWITCH

- starter, push button, with studs for snap spade connectors, if used

1шт.

For the correct starter switch wire and main harness connection, see Fig. 4-26.

1шт.

18

B17425

LOCTITE

SEALANT - pipe threads, with Teflon, Loctite No. 92, 50 ml tube, use to seal the rubber boot of Ref. 17 switch, if used

1шт.
