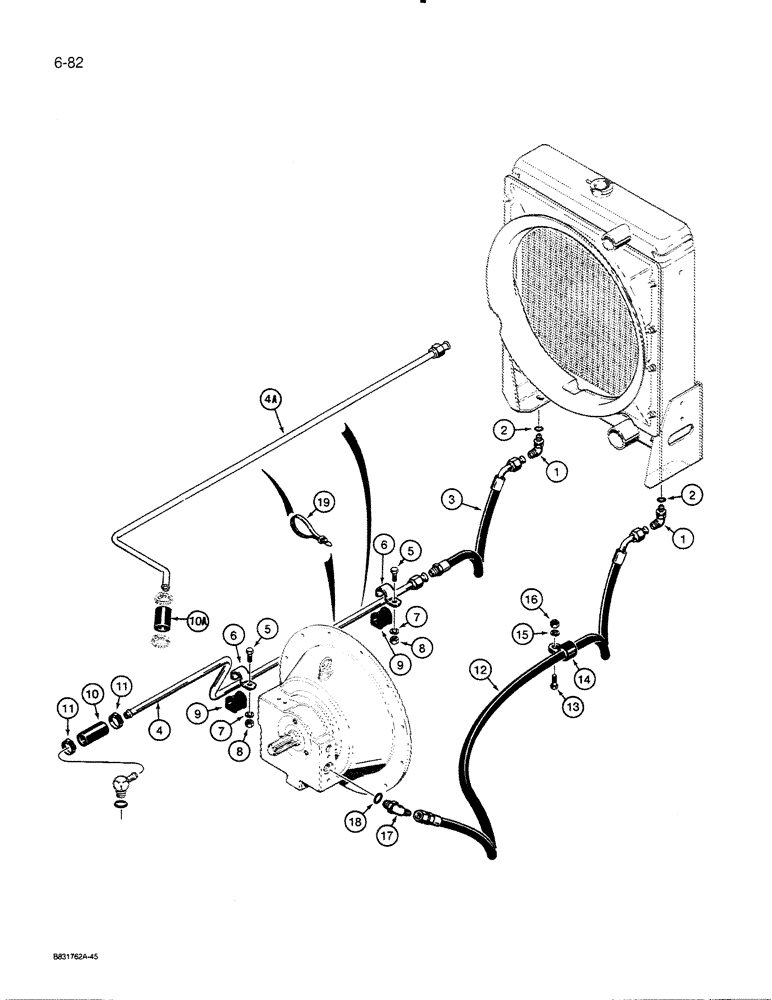

Запчасти Case 450C (6-82) - CRAWLER HYDRAULIC CIRCUIT, COOLING SYSTEM (06) - POWER TRAIN

1

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, at radiator, Includes: Ref. 2

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

3

R40386

HOSE

- to radiator, left-hand

1шт.

4

R47430

TUBE,15.88 mm OD x 1343, 278 mm L

- return from transmission range gear housing, used on models with dry brakes only

1шт.

4a

R51928

TUBE,0.625" OD

- return from transmission range gear housing, used on models with wet brakes only

1шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

R40441

CLAMP

- tube

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

9

D67296

GROMMET

INSULATOR - tube mounting

2шт.

10

D121521

HYDRAULIC HOSE,15.88 mm ID x 75.00 mm

Cut from D125080 hose, to Transmission Range Gear Housing, Used on models with dry brakes only 15.88 mm ID x 75.00 mm

1шт.

10a

R52766

HOSE

- 2-3/8" (60 mm) long, cut from D125080 hose, to transmission range gear housing, used on models with wet brakes only

1шт.

11

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, adjustable

2шт.

12

R40836

HOSE ASSY.

HOSE - radiator to torque converter

1шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

14

R21385

CLAMP

- P-style, hose

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

17

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, at torque converter, Incl. Ref 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

D125080

HYDRAULIC HOSE,15.88 mm ID x 150.00 mm

15.90 mm ID x 150.00 mm

1шт.
