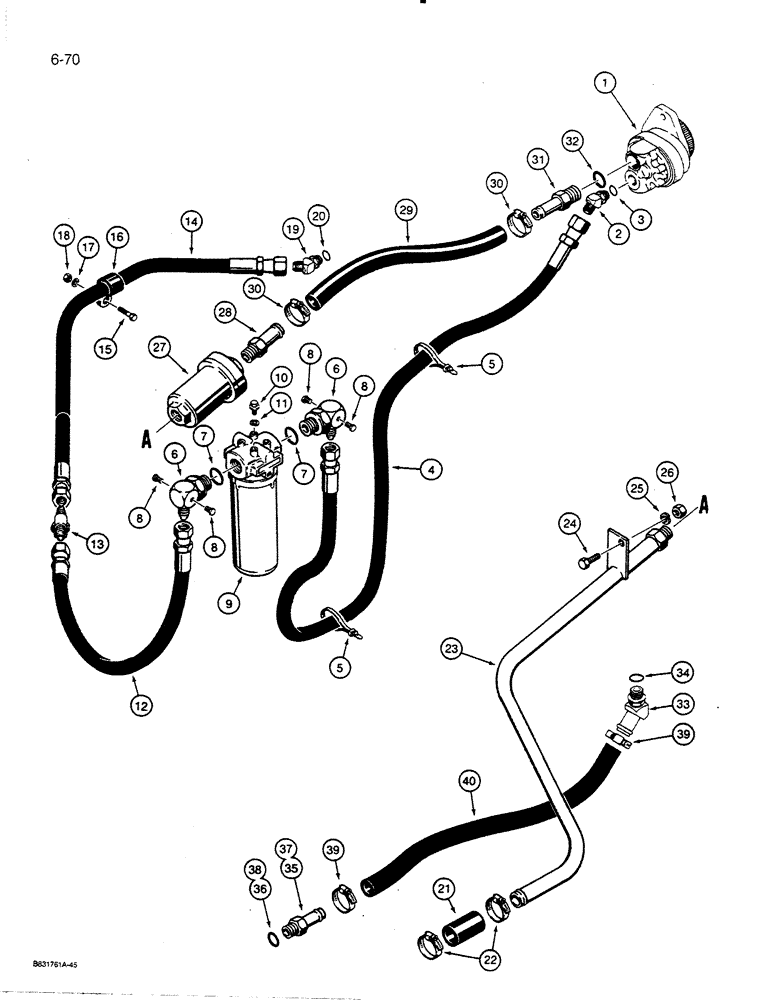

Запчасти Case 450C (6-70) - CRAWLER HYD. CIRCUIT, MODELS WITH SUCTION FILTER, LOCATED NEXT TO TORQUE CONVERTER, IF USED (06) - POWER TRAIN

1

R48598

PUMP

ASSEMBLY - transmission charging, see Fig. 6-84

1шт.

2

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, Incl. Ref 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

4

R50007

HOSE

- 106" (2692 mm) long, charging, Serial Range: pump-filter

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

R47066

ELBOW

- 90 degree, with check ports, Includes: Ref. 7

2шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

8

221-1849

PLUG

- hex socket head, 1/8" NPT, elbow check ports

4шт.

9

R50518

FILTER

ASSEMBLY - transmission fluid, parts list Fig. 6-86

1шт.

10

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated

3шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

R47681

HOSE

- 31" (787 mm) long, filter to transmission control valve

1шт.

13

REF

INSTRUCTION

TEE - transmission control valve, see Fig.6-56

1шт.

14

R43292

HOSE ASSY.

HOSE - 46" (1168 mm) long, transmission control valve to torque converter

1шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

16

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

19

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, Incl. Ref 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

21

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- may be cut from S118465 bulk, see below, at transmission, suction line tube 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

22

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

2шт.

23

R47057

TUBE,1.25" OD

- transmission to filter, suction line

1шт.

24

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

27

D35144

FILTER

FILTER ASSEMBLY - suction line, mounted parallel to length of tractor, parts list Fig. 6-86

1шт.

28

217-156

FITTING,1" Hose Barb x 1" Male NPTF

STEM FITTING - hose, at filter

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Bulk 1.25" ID x 180.00", SAE 100R3

1шт.

29

D31469

HOSE

- 19" (483 mm) long, filter to charging pump

1шт.

30

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

2шт.

31

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Stem, at charging pump, Includes Ref. 32 1" Hose X 1 5/16"-12 ORB, Beaded

1шт.

32

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- stem fitting

1шт.

33

217-309

FITTING,45 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - hose, 45 degree, at torque converter drain, Includes: Ref. 34

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Stem fitting

1шт.

35

217-390

FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - hose, straight, 1-1/16" - 12 NF threads at transmission, if used, Includes: Ref. 36

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Stem fitting

1шт.

37

217-388

FITTING,1" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - hose, straight, 3/4" - 16 NF threads at transmission, if used, Includes: Ref. 38

1шт.

38

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Stem fitting

1шт.

39

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

2шт.

40

D32678

HOSE

- 31" (787 mm) long, torque converter, Serial Range: drain-transmission

1шт.
