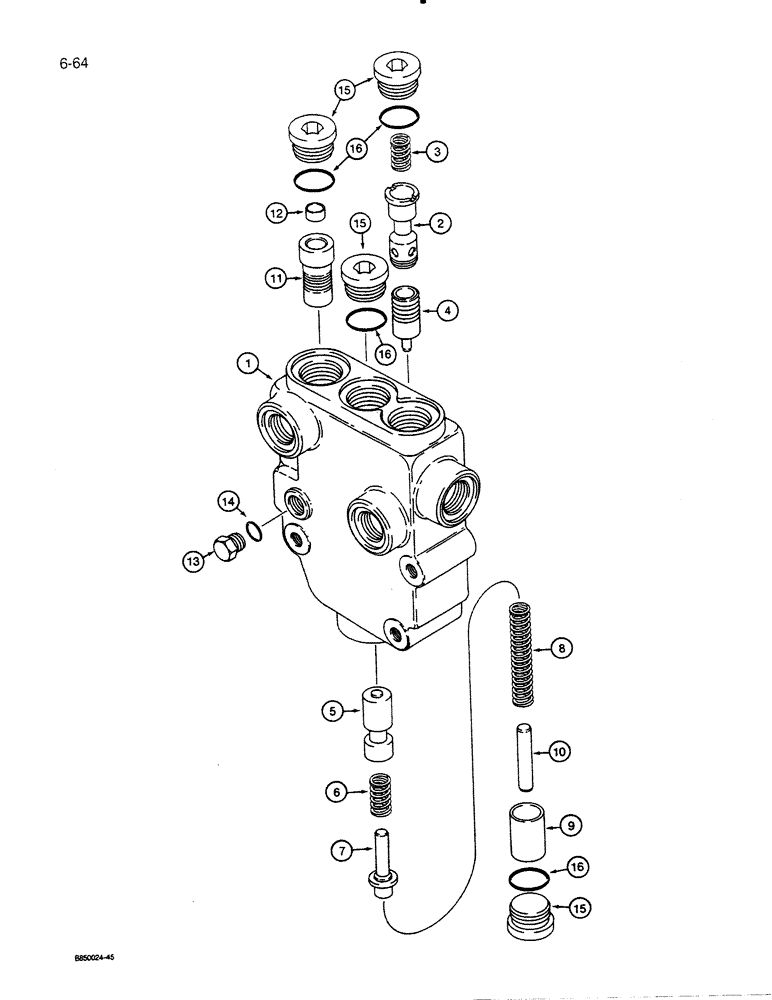

Запчасти Case 450C (6-64) - TRANSMISSION MODULATOR VALVE ASSEMBLY, USED ON P.I.N. GBE 0001501 AND AFTER (06) - POWER TRAIN

G110392

VALVE

ASSEMBLY - modulator, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

G110503

SPOOL

- track modulation

1шт.

3

G107294

SPRING

- track spool

1шт.

4

G106555

VALVE POPPET

POPPET - unloading, track spool

1шт.

5

G107532

SPOOL

- modulator

1шт.

6

G107479

SPRING

- modulator spool

1шт.

7

G107531

GUIDE

- spring

1шт.

8

G110133

SPRING

- poppet

1шт.

9

G107530

PISTON

- modulator

1шт.

10

G107529

PIN

- stop

1шт.

11

G107533

SPOOL

- direction modulator

1шт.

12

G107528

PLUG

- orifice

1шт.

13

9672438

PLUG,7/16" - 20 ORB

Test port, Incl. Ref. 14 Hex Hd, 7/16"-20 ORB

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Plug

1шт.

15

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 16 Hex Soc, 1 1/16"-12 ORB

4шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.
