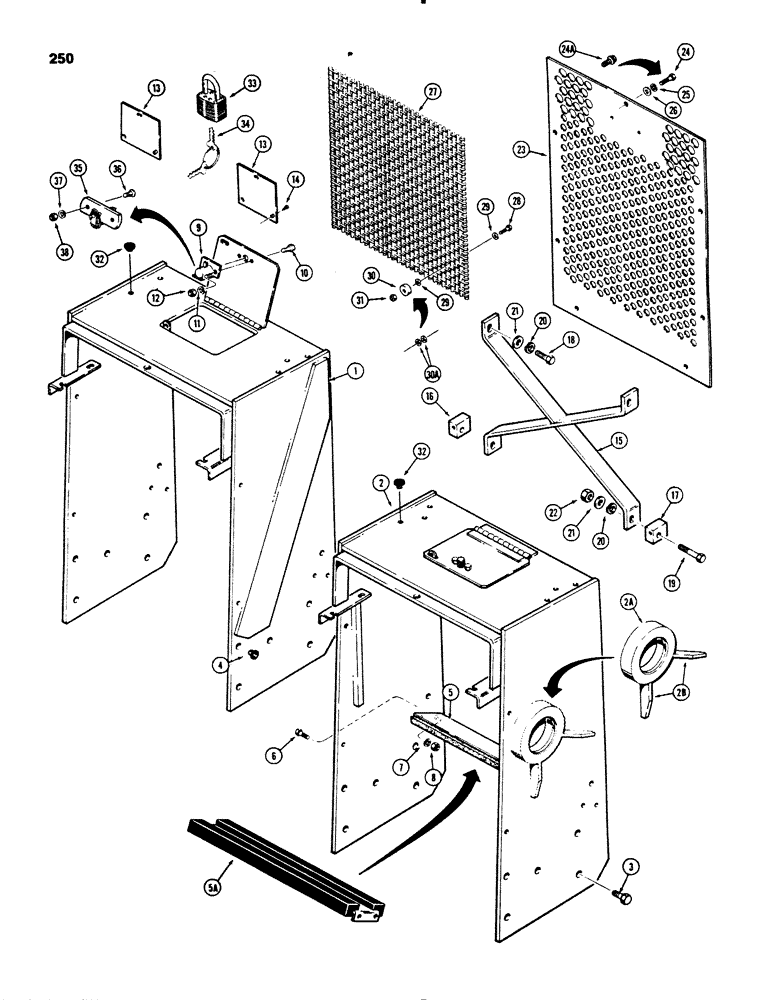

Запчасти Case 450B (250) - SHROUD, GRILLE AND SCREENS (05) - UPPERSTRUCTURE CHASSIS

1

R39724

HOUSING

SHROUD - loader

1шт.

2

R39725

HOUSING

SHROUD - dozer, Includes: Ref. #2A & 2B

1шт.

2a

D31317

RACE

- dozer lift trunnion

2шт.

2b

D36519

GUSSET - trunion race

4шт.

3

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

10шт.

4

353-409

PLUG,Dome, .812" hole, Nylon

- nylon, 13/16" (21 mm) diameter, used on loader models only

2шт.

5

R39734

BAFFLE ASSEMBLY - radiator, see Fig. 266, Ref. #1, for pad; assembly no longer used, service with R43351

1шт.

5a

R43351

BAFFLE ASSEMBLY - radiator

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" -16 NC

4шт.

9

R25164

FASTENER

LATCH ASSEMBLY - access door, if used

1шт.

10

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

13

R40434

PLATE - lamp mounting

2шт.

14

187-1080

SCREW,Hex Wash Hd, 1/4" x 1/2"

- self-tapping, 1/4" -20 NC x 1/2"

6шт.

15

R39401

BRACE - radiator

1шт.

16

R39402

BLOCK - brace mounting, left-hand

1шт.

17

R39403

BLOCK

- brace mounting, right-hand

1шт.

18

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

19

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21

195-41

WASHER,5/8"

4шт.

22

25-1010

NUT,5/8"-11, G5

2шт.

23

R39407

GRILLE

- heavy duty

1шт.

23

R39408

GRILLE

- standard

1шт.

24

113-473

BOLT - hex head, 1/2" -13 NC x 1-1/4", plated, no longer used, service with 121-428 bolt

7шт.

24a

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Does not use washers Hex Flg, 1/2"-13 x 1", G8, Full Thd

7шт.

25

195-42

WASHER - lock, 1/2", plated, no longer used

7шт.

26

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, no longer used

7шт.

27

R40059

SCREEN - brush guard

1шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" -16 NC x 1-1/2"

10шт.

29

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, 3/8"

20шт.

30

R20553

WASHER

SPACER - screen, 3/8" (9 mm) thick, no longer used, service with (20) 39519 washers

10шт.

30a

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, 3/8", between grille and screen

20шт.

31

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" -16 NC

10шт.

32

R38805

PLUG

- mounting holes, used on models without ROPS canopy

6шт.

33

D93753

PADLOCK

- access door, radiator cap, if used, Includes: Ref. #34

1шт.

34

R29555

KEY

- for Master padlock only

2шт.

34

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

35

L102515

LATCH

- access door, if used

1шт.

36

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, slotted, no. 10 - 24 NC x 1/2"

2шт.

37

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

38

129-7

NUT,Hex, #10 - 24

- hex, no. 10 - 24 NC

2шт.
