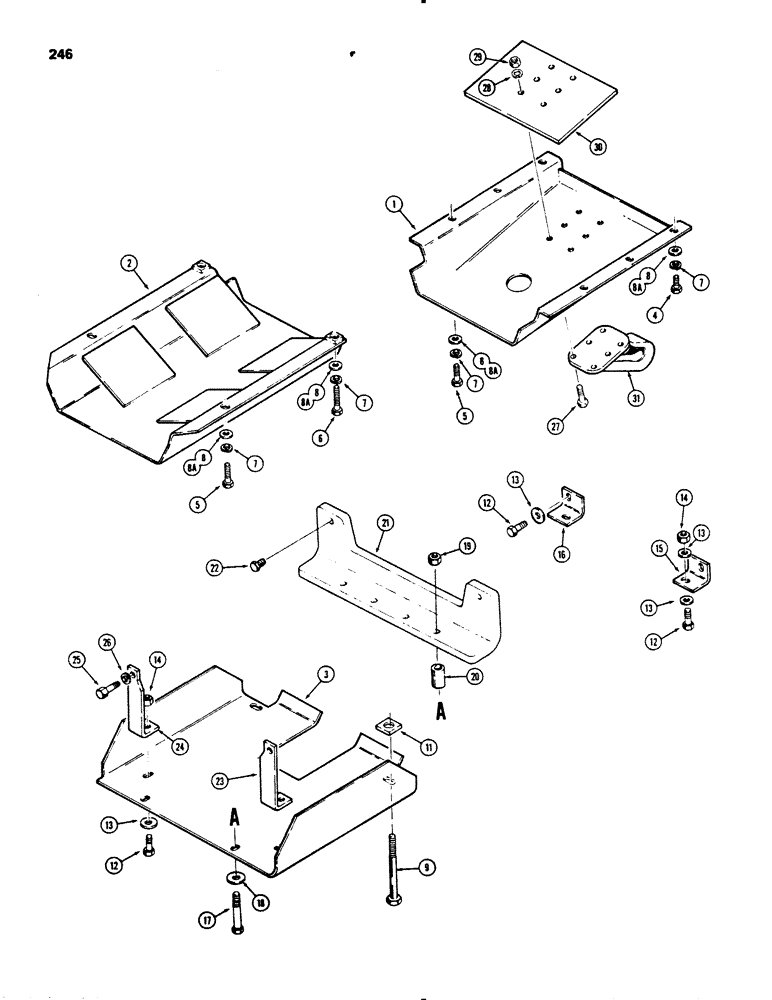

Запчасти Case 450B (246) - UNDERCARRIAGE GUARDS AND PULL HOOK, DOZER AND DRAWBAR MODELS (04) - UNDERCARRIAGE

1

D35159

GUARD

- front, crankcase

1шт.

2

D35162

GUARD

- middle, torque converter

1шт.

3

D47851

GUARD

- rear, transmission, which, ripper and drawbar models and models without rear equoipment

1шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

5

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

6

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , No longer used 5/8"

10шт.

8

195-41

WASHER,5/8"

No longer used, service with T53567 washer 5/8"

10шт.

8a

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - harened, 5/8"

10шт.

9

15-14128

BOLT (MACHINE),Hex, 7/8" - 9 x 8", Gr 5

BOLT - hex head, 7/8" -9 NC x 3"

2шт.

11

D47858

SPACER

- winch, ripper and drawbar models, and models without rear equipment

2шт.

12

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

6шт.

13

195-45

WASHER,3/4"

2шт.

14

25-1012

NUT,3/4"-10, G5

2шт.

15

D47853

BRACKET - right-hand, ripper

1шт.

16

D47854

BRACKET - left-hand, ripper

1шт.

17

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

18

195-45

WASHER,3/4"

2шт.

19

25-1012

NUT,3/4"-10, G5

2шт.

20

R36356

SPACER

- drawbar or no rear equipment

2шт.

21

R39425

GUIDE

- drawbar, no rear equipment

1шт.

22

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

23

R35997

BRACKET - right-hand, winch

1шт.

24

R35998

BRACKET - left-hand, winch

1шт.

25

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

27

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" -13 NC x 1-3/4"

6шт.

28

92-8

LOCK WASHER,1/2"

6шт.

29

25-108

NUT,1/2"-13, G5

- hex, 1/2" -13 NC

6шт.

30

D35156

PLATE - mounting, pull hook

1шт.

31

10940

HOOK

PULL HOOK - front

1шт.
