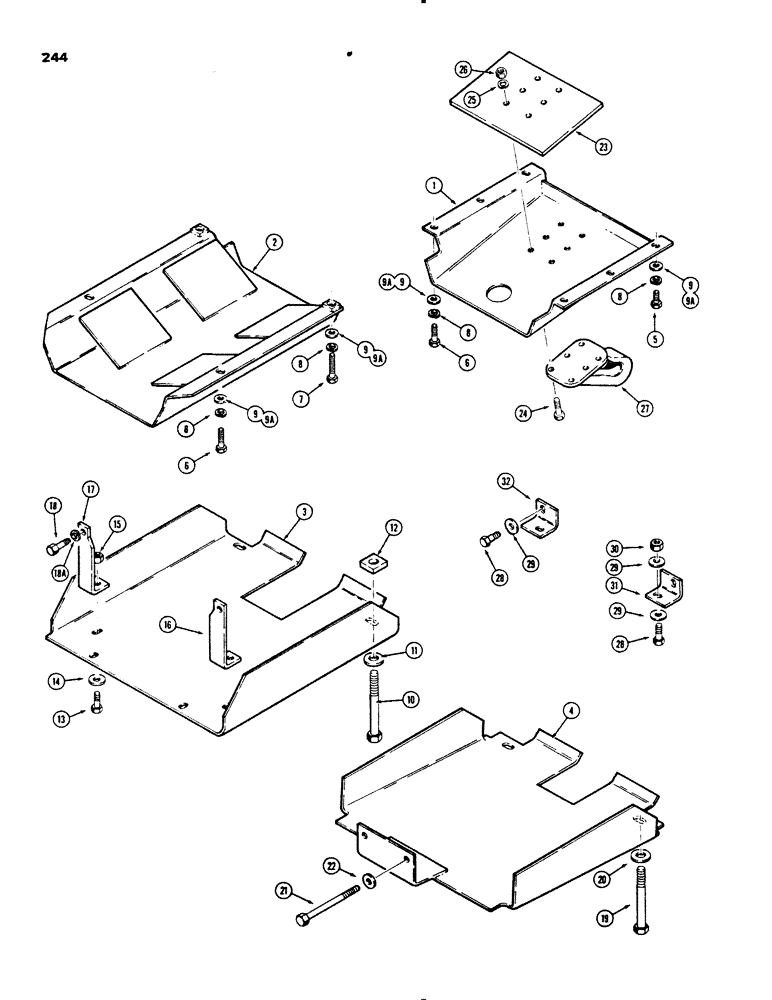

Запчасти Case 450B (244) - UNDERCARRIAGE GUARDS AND PULL HOOK, LOADER MODELS (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
D35157
GUARD
- front, crankcase
1шт.
2
D35162
GUARD
- middle, torque converter
1шт.
3
D47852
GUARD - rear, transmission, winch or ripper model
1шт.
4
R39927
GUARD - rear, transmission, counterweight model
1шт.
5
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
4шт.
6
13-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
4шт.
7
13-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
2шт.
9
195-41
WASHER,5/8"
No longer used, service with T53567 washer 5/8"
10шт.
9a
T53567
BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk
WASHER - hardened, 5/8"
10шт.
10
15-14128
BOLT (MACHINE),Hex, 7/8" - 9 x 8", Gr 5
BOLT - hex head, 7/8" -9 NC x 8"
2шт.
11
D34667
WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk
- hardened
2шт.
12
D47858
SPACER
- winch and ripper models
2шт.
13
13-1228
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
2шт.
14
195-45
WASHER,3/4"
2шт.
15
25-1012
NUT,3/4"-10, G5
2шт.
16
R35997
BRACKET - right-hand, winch
1шт.
17
R35998
BRACKET - left-hand, winch
1шт.
18
13-1236
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5
2шт.
18a
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
19
413-14120
BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5
- hex head, 7/8" -9 NC x 7-1/2"
2шт.
20
D34667
WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk
- hardened
2шт.
21
15-12128
BOLT,Hex, 3/4" - 10 x 8", Gr 5
- hex head, 3/4" -10 NC x 8"
2шт.
22
T53681
WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk
- hardened
2шт.
23
D35156
PLATE - mounting, pull hook
1шт.
24
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
- hex head, 1/2" -13 NC x 1-3/4"
6шт.
25
92-8
LOCK WASHER,1/2"
6шт.
26
25-108
NUT,1/2"-13, G5
- hex, 1/2" -13 NC
6шт.
27
10940
HOOK
PULL HOOK - front
1шт.
28
13-1228
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
4шт.
29
195-45
WASHER,3/4"
6шт.
30
25-1012
NUT,3/4"-10, G5
2шт.
31
D47853
BRACKET - right-hand, ripper
1шт.
32
D47854
BRACKET - left-hand, ripper
1шт.
Выбрано товаров: 34
